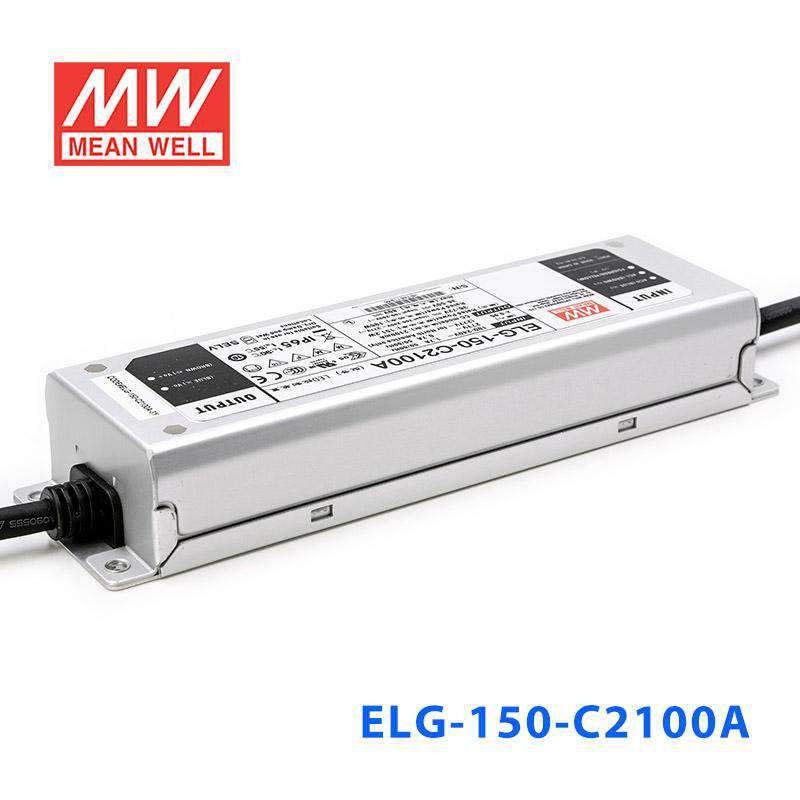

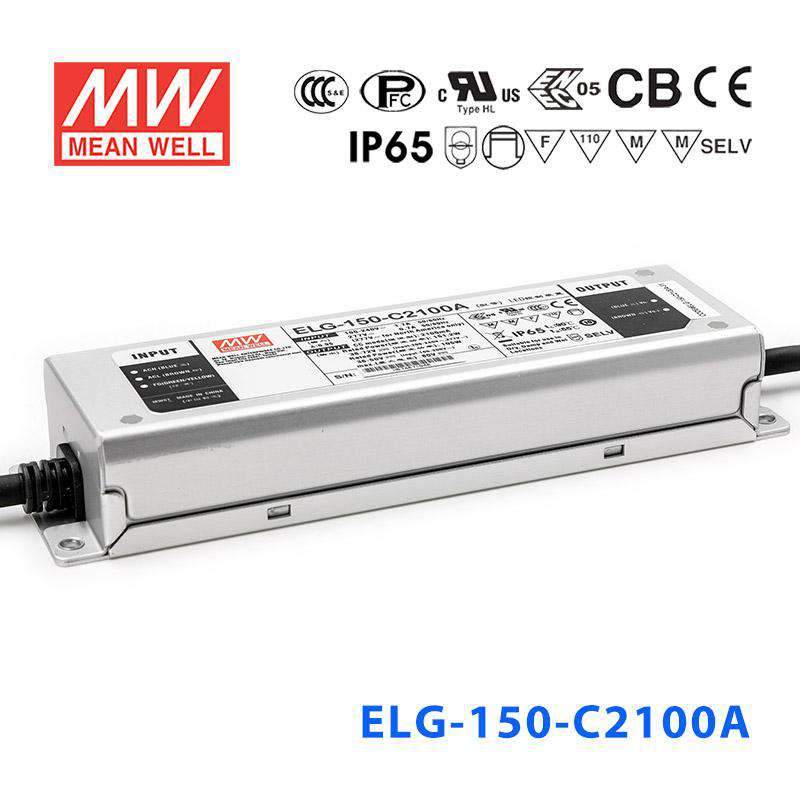

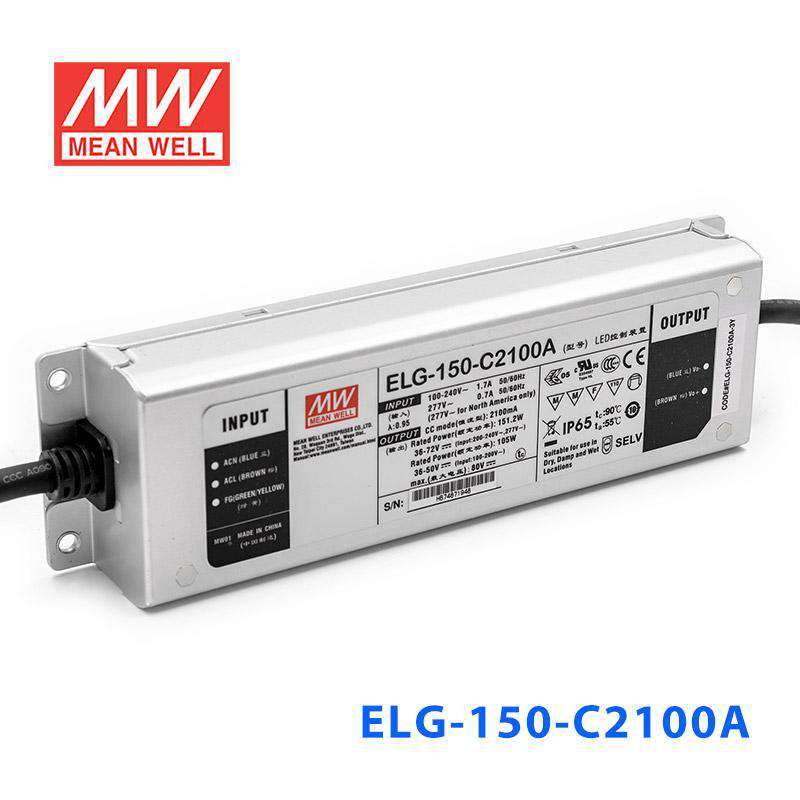

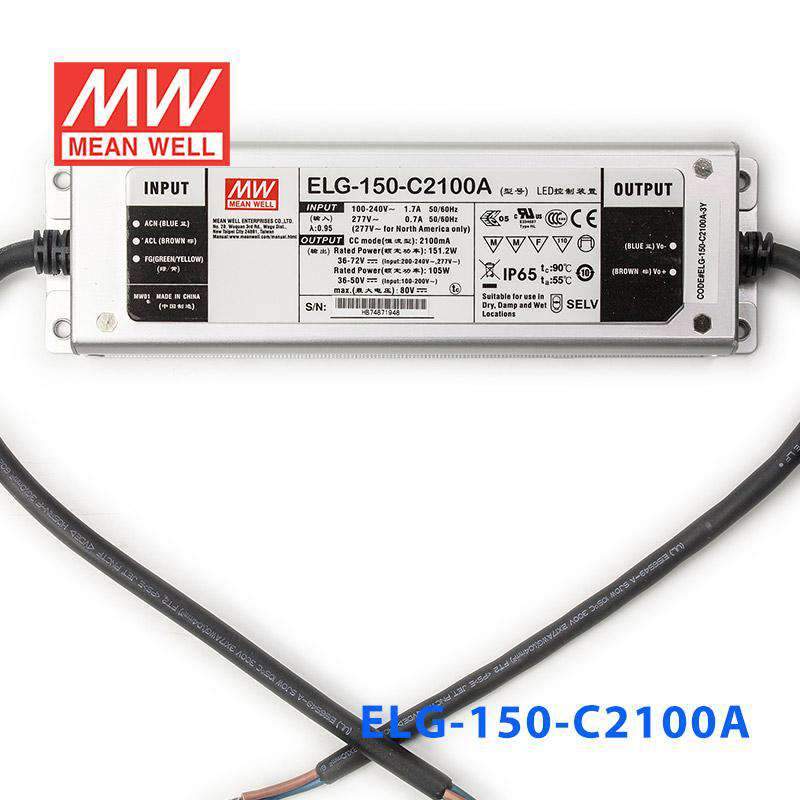

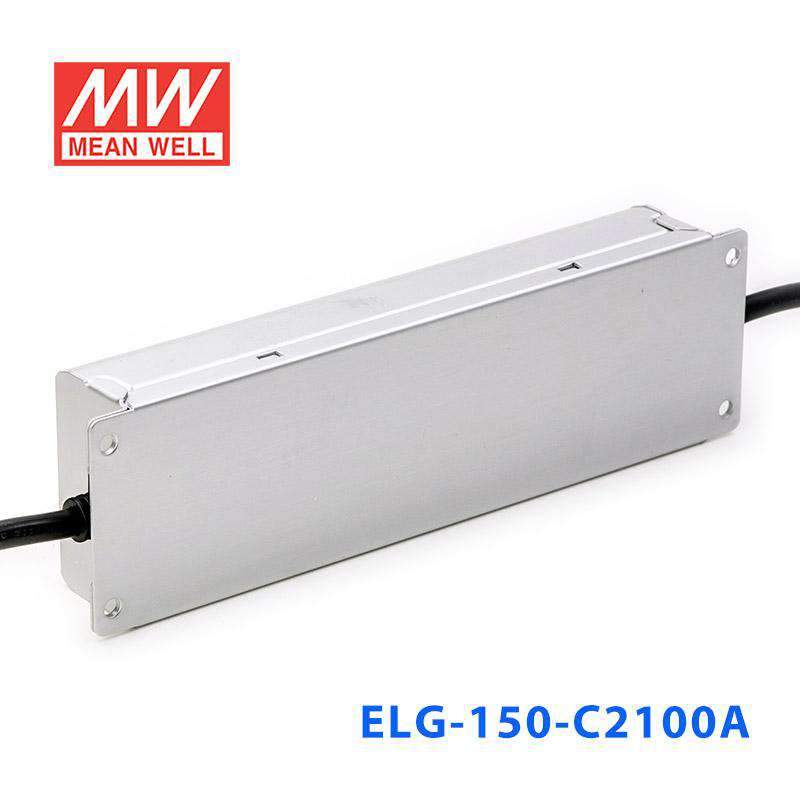

Mean Well ELG-150-C2100A Power Supply 150W 2100mA - Adjustable
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating151.2 Watt
-
Output Voltage80 Volt
-
Rated Current2.1 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-C2100A for a 2100mA LED downlight?
Yes, this driver is built for constant current LED loads at 2100mA. It is a fit for LED downlights when the fixture's total forward voltage falls within the 36-72V constant current range and the load stays within the 151.2W rating.
Is this driver suitable for signage modules that run on constant current?
It can be used for signage modules if the modules are designed for constant current operation at 2100mA rather than constant voltage. The connected load still needs to operate within the 36-72V CC range, with total power kept at or below 151.2W.
Can this power supply run a small high-power LED array?
Yes, it is intended for constant current LED arrays that need 2100mA output. The array's combined forward voltage must stay within 36-72V, and total load must remain within the 151.2W capacity.
How do I know if my LEDs are compatible with the ELG-150-C2100A?
Compatibility depends on matching a constant current LED load to the 2100mA output and keeping the load within the 36-72V CC voltage range. The number of LEDs depends on each LED's forward voltage, so this driver should be sized by total forward voltage rather than by a fixed LED count.
How does the ELG-150-C2100A compare with other ELG-150-C2100 versions?
Within the ELG-150-C2100 family, the ELG-150-C2100, ELG-150-C2100A, ELG-150-C2100AB, ELG-150-C2100B, and ELG-150-C2100DA are listed at 151.2W, 80V, and 2100mA. The ELG-150-C2100D2 version is listed at 150W, 72V, and 2.1A.
