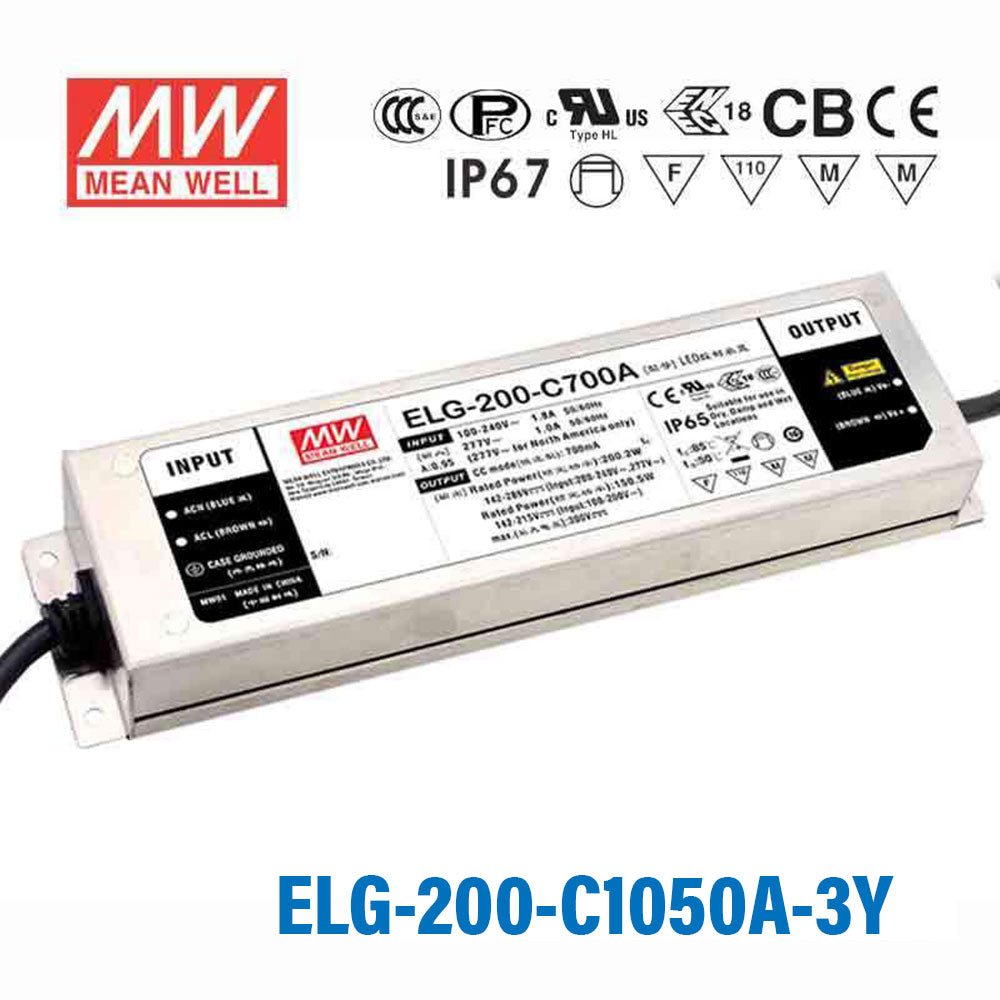

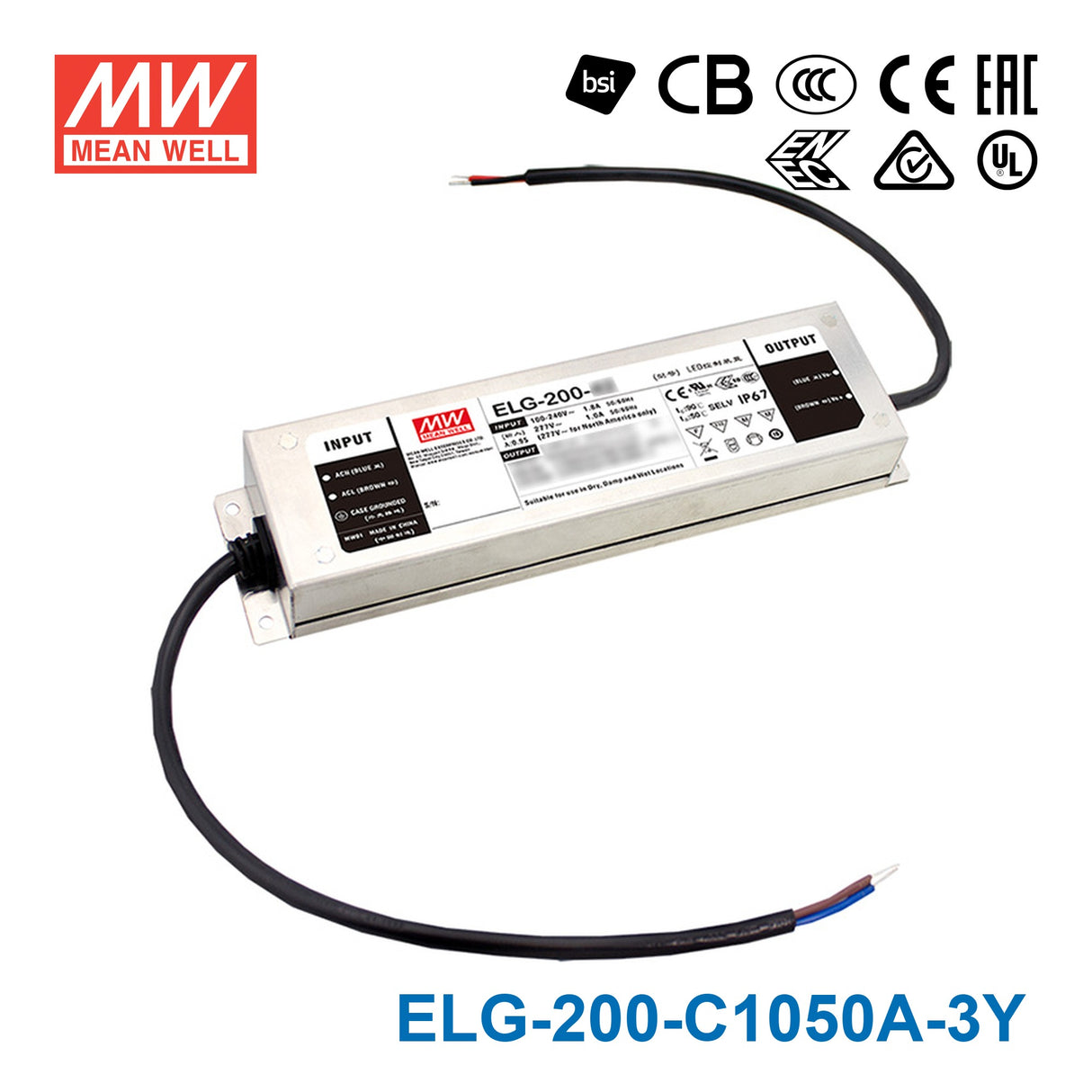

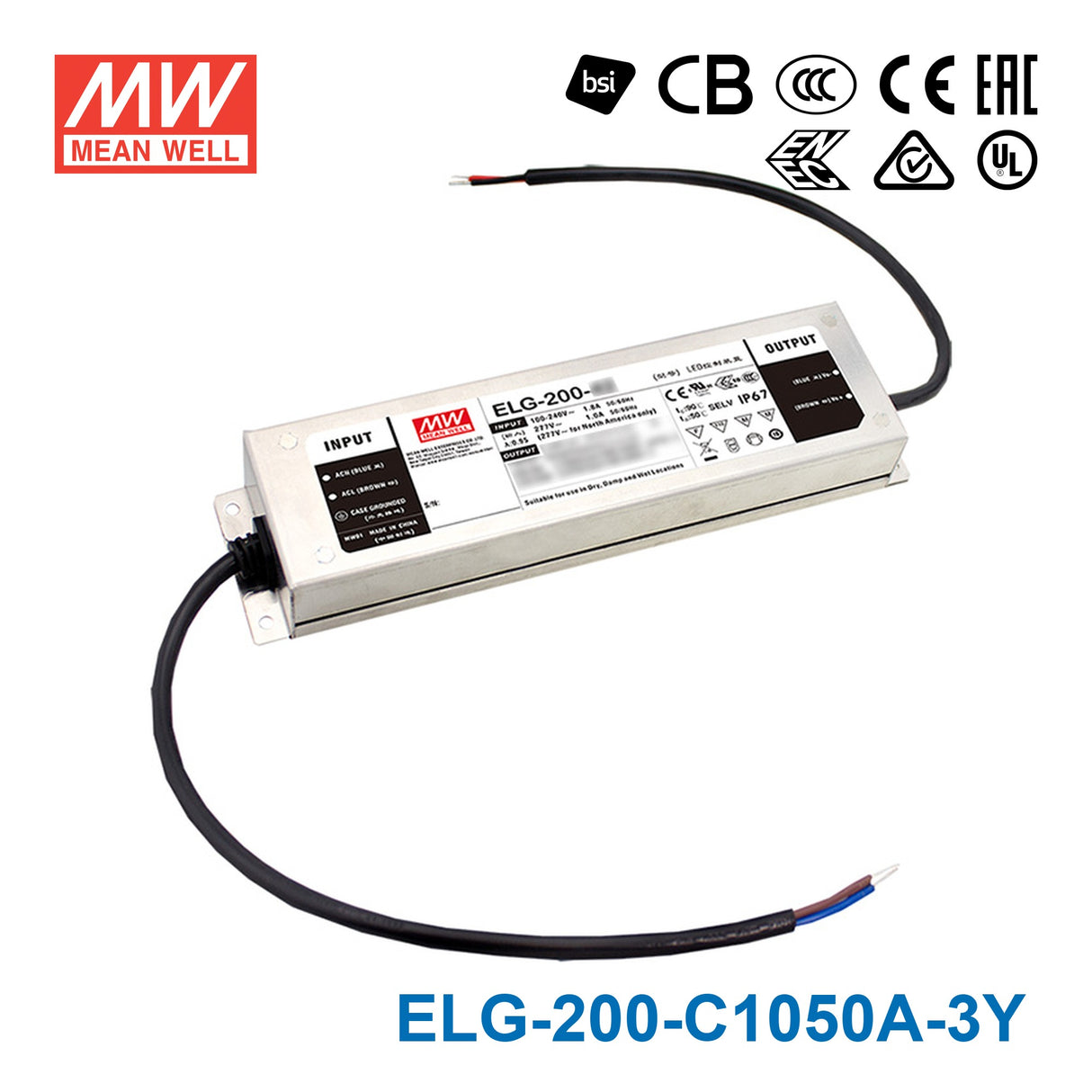

Mean Well ELG-200-C1050A Power Supply 200W 1050mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1050A Power Supply 200W 1050mA - Adjustable
Description
Description
Features
| Constant Current mode output |
| Metal housing design with functional ground |
| built-in active PFC function |
| No load / Standby power consumption < 0.5W |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI |
| Typical lifetime > 50000 hours |
| 5 years warranty |
General Specification
| input voltage range | 100 ~ 305VAC | 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| AC inrush current | COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410 |
| Over voltage protection |
Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3.75KVAC | I/P-FG:2.0KVAC | O/P-FG:1.5KVAC |
| Working temperature | -40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards |
UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244 x 71 x 37.5 mm |
| Packing | 1.22Kg; 12pcs / 15.2kg / 0.72CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating199.5 Watt
-
Output Voltage200 Volt
-
Rated Current1.05 Ampere
-
Input Voltage142V~431V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED loads is the ELG-200-C1050A-3Y designed to drive?
The ELG-200-C1050A-3Y is a constant-current driver delivering 1050mA across a 95–190V output voltage range, making it suited for mid-to-high voltage LED strings such as linear LED modules, street light arrays, or series-connected LED boards that operate in that voltage window at 1050mA.
Can the ELG-200-C1050A-3Y be used in outdoor street or area lighting fixtures?
Yes. The IP65 water-resistant rating means the unit is protected against low-pressure water jets from any direction, suitable for outdoor luminaire housings used in street lighting, parking lot lights, or floodlights. The -40°C to +85°C operating temperature range supports all-season outdoor deployment.
Is the ELG-200-C1050A-3Y compatible with high-bay LED fixtures in industrial settings?
Yes. At 199.5W and 1050mA constant current output, this driver is a good match for high-bay fixtures using series LED strings rated for the 95–190V output range. The wide 142–431VAC input range accommodates industrial three-phase-derived voltages and international supplies.
Does the ELG-200-C1050A-3Y support output current adjustment?
Yes. The 'A' suffix indicates the output current can be adjusted via an external resistor, allowing fine-tuning of the 1050mA nominal current to match specific LED array requirements without replacing the driver. This is useful during commissioning when LED forward voltages vary between production batches.
Can the ELG-200-C1050A-3Y drive a series string of LED modules for a horticulture grow light?
Yes. Constant-current drivers at 1050mA are commonly used in horticulture LED fixtures with series-connected high-power LEDs. The 199.5W output capacity supports large grow light panels, and the IP65 rating provides protection against moisture and cleaning spray in greenhouse environments.
What certifications does the ELG-200-C1050A-3Y carry?
The driver holds CCC, CE, EAC, FCC, c_RCM, TÜV, and UL certifications, providing broad international market coverage including North American, European, Australian, and Chinese requirements. The 5-year warranty and IP65 rating support its use in demanding commercial and industrial lighting projects.
