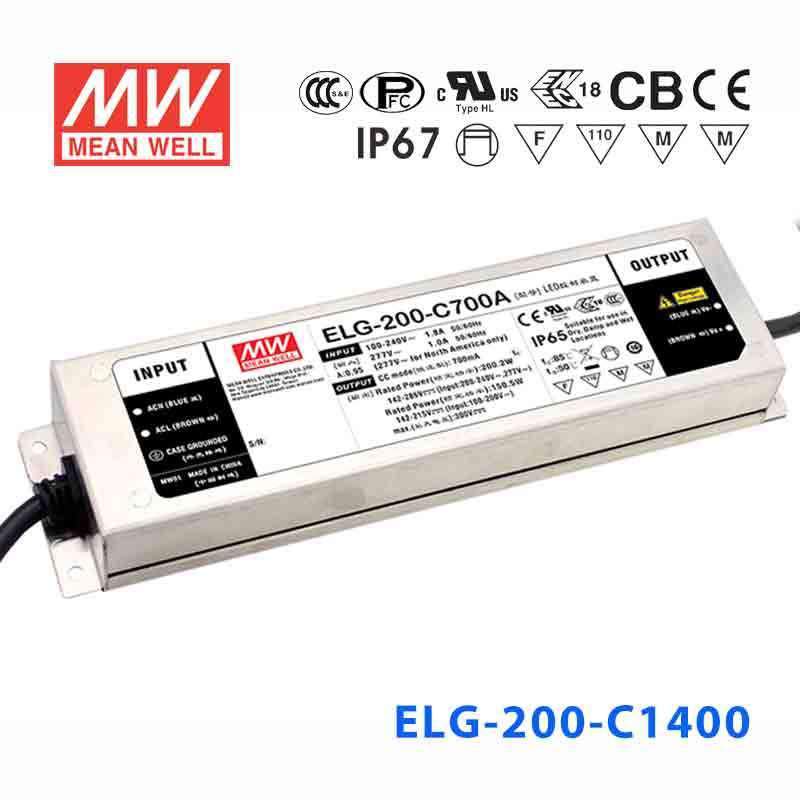

Mean Well ELG-200-C1400 Power Supply 200W 1400mA
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating198.8 Watt
-
Output Voltage160 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1400 be used to drive high-power LED modules in industrial or street lighting applications?
Yes. At 198.8W and 1400mA constant current output, the ELG-200-C1400 is well-suited for high-power LED modules used in street lights, area lighting, and industrial high-bay fixtures. The CC voltage range of 71–142V accommodates series strings of appropriate LEDs.
Is the ELG-200-C1400 suitable for LED signage modules that require higher drive current?
Yes. The 1400mA output is higher than the 1050mA variants, making this driver a good fit for larger or higher-current LED signage modules where the total forward voltage of the series string falls within the 71–142V CC range.
How does the ELG-200-C1400 differ from the ELG-200-C1050 in terms of output current and voltage range?
The ELG-200-C1400 outputs 1400mA with a CC voltage range of 71–142V, while the ELG-200-C1050 outputs 1050mA with a CC range of 95–190V. Both deliver approximately 200W; choosing between them depends on whether your LED string requires higher current at lower voltage or lower current at higher voltage.
Can the ELG-200-C1400 operate in wet outdoor locations, such as an outdoor parking lot luminaire?
Yes. The IP67 waterproof rating allows this driver to be installed in luminaire housings exposed to rain and moisture, including outdoor parking lot and roadway fixtures. Operating temperature range is -40°C to +85°C.
What is the input voltage range of the ELG-200-C1400, and does it work on 277V circuits?
The ELG-200-C1400 accepts 100–305VAC, which covers 120V, 208V, 240V, and 277V North American commercial circuits as well as standard 230V European mains, without any manual range switching.
Is the ELG-200-C1400 appropriate for LED arrays installed in cold-weather outdoor cabinets?
Yes. With an operating temperature floor of -40°C, this driver starts and runs reliably in cold-weather outdoor enclosures. The metal case and IP67 sealing protect against frost, condensation, and moisture intrusion.
