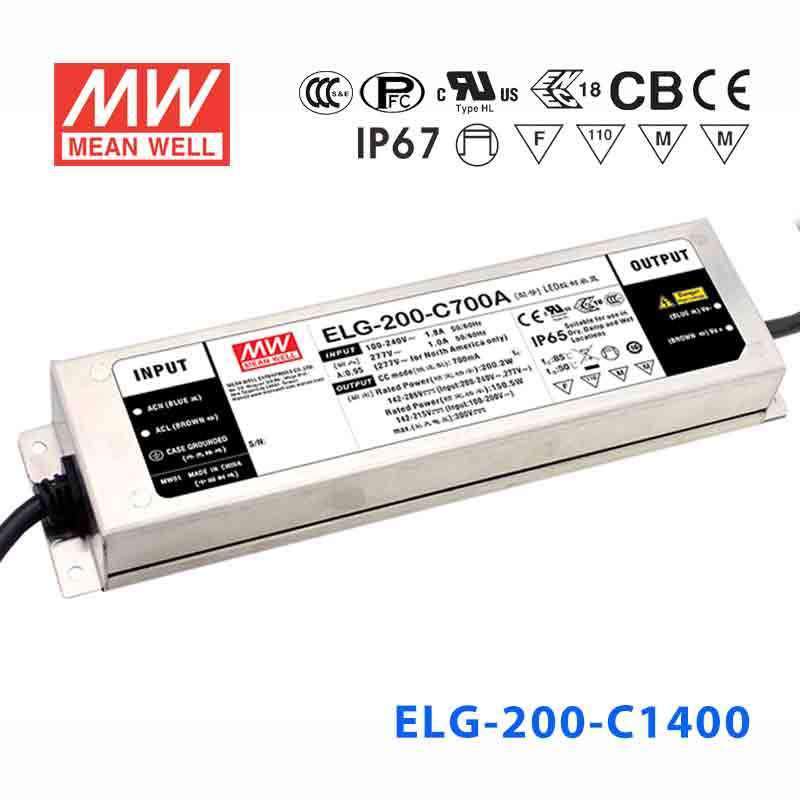

Mean Well ELG-200-C1400AB Power Supply 200W 1400mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1400AB Power Supply 200W 1400mA - Adjustable and...
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 65 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244x71x37.5 |
| Packing | 12pcs / 15.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating198.8 Watt
-
Output Voltage160 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-C1400AB drive LED modules in a dimmable commercial lighting retrofit?
Yes. The 'AB' suffix indicates that the ELG-200-C1400AB supports both output current adjustment and built-in dimming, making it suitable for dimmable commercial lighting retrofits. It delivers 198.8W at 1400mA constant current with a CC voltage range of 71–142V.
Is the ELG-200-C1400AB appropriate for LED architectural wash lighting on a building exterior?
Yes. Its IP65 water-resistant rating and -40°C to +85°C operating range allow it to be mounted in outdoor architectural fixture enclosures. The dimming feature also enables integration with scene-control or time-based lighting automation.
How many series-connected LEDs can the ELG-200-C1400AB support?
The CC output voltage range is 71–142V. The count of LEDs in the series string depends entirely on each LED's individual forward voltage; only strings whose combined forward voltages land within 71–142V will be regulated properly at 1400mA.
Can the ELG-200-C1400AB be used in an LED sign cabinet mounted on the exterior of a retail building?
Yes. The IP65 rating protects against rain splash and dust, and the wide input range of 100–305VAC ensures compatibility with standard commercial branch circuits. The built-in dimming also allows the sign brightness to be adjusted.
What is the operating temperature range of the ELG-200-C1400AB, and can it operate in unheated outdoor enclosures?
The ELG-200-C1400AB operates from -40°C to +85°C. This range covers unheated outdoor enclosures in most climates, including cold-weather regions where nighttime temperatures drop well below freezing.
How does the ELG-200-C1400AB compare to the ELG-200-C1400A?
Both are 198.8W constant current drivers at 1400mA with IP65 rating and a 71–142V CC voltage range. The ELG-200-C1400A supports output current adjustment only, while the ELG-200-C1400AB adds dimming capability on top of that adjustment function.
