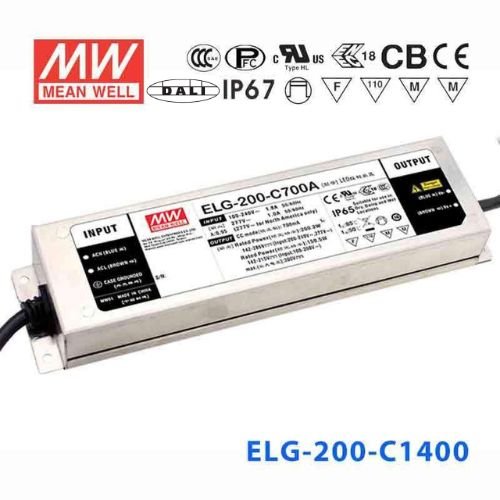

Mean Well ELG-200-C1400DA Power Supply 200W 1400mA - DALI
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating198.8 Watt
-
Output Voltage160 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Does the ELG-200-C1400DA support DALI-based building automation systems?
Yes. The "DA" suffix indicates DALI (Digital Addressable Lighting Interface) dimming support, allowing the driver to be individually addressed and controlled within a DALI-networked lighting system. This is common in commercial office, retail, and hospitality environments.
Can the ELG-200-C1400DA be used to power high-voltage LED module strings in commercial ceiling fixtures?
Yes. Operating in constant current mode at 1400mA with a CC voltage range of 71–142V, this driver is well-suited for series-connected LED modules used in commercial recessed or surface-mount ceiling fixtures where DALI dimming control is required.
Is the ELG-200-C1400DA rated for outdoor or damp-location use?
Yes. The ELG-200-C1400DA carries an IP67 waterproof rating, so it can be installed in outdoor luminaires, covered walkway fixtures, or damp-location applications without additional protective enclosures.
What LED applications benefit most from the DALI interface on the ELG-200-C1400DA?
DALI control is particularly useful in smart building projects where individual luminaire dimming, group scenes, and occupancy-responsive control are needed. Typical applications include office task lighting, hotel corridor lighting, and retail display arrays using high-voltage LED modules within the 71–142V CC range.
How does the ELG-200-C1400DA compare to the ELG-200-C1400B in terms of dimming capability?
The C1400B uses 3-in-1 dimming (1–10V, PWM, and resistance) suited for simpler analog control systems, while the C1400DA uses DALI protocol for digital, addressable control in networked lighting systems. Both are 198.8W at 1400mA with IP67 rating; the choice depends on the control infrastructure of the installation.
Can the ELG-200-C1400DA operate in harsh-temperature environments such as outdoor signage cabinets?
Yes. With an operating temperature range of -40°C to +85°C and IP67 waterproofing, the ELG-200-C1400DA is suitable for outdoor signage cabinets and other thermally challenging environments.
