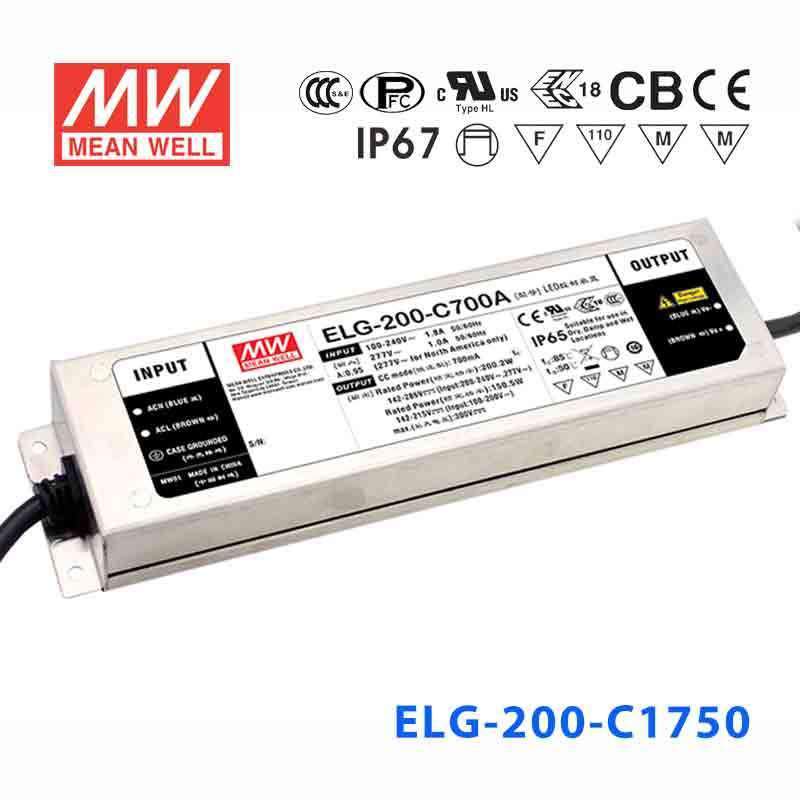

Mean Well ELG-200-C1750 Power Supply 200W 1750mA
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage120 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1750 drive mid-voltage LED module strings in the 57–114V range?
Yes. This driver delivers constant current at 1750mA with a CC voltage range of 57–114V. It is compatible with series-connected LED modules whose combined forward voltage falls within that window; the actual number of LEDs depends on each LED's forward voltage.
Is the ELG-200-C1750 suitable for use in outdoor LED luminaires?
Yes. It carries an IP67 waterproof rating and operates from -40°C to +85°C, making it appropriate for outdoor landscape lighting, facade illumination, or streetlight-style fixtures exposed to weather.
Can I use the ELG-200-C1750 to power LED modules in parking garage or tunnel lighting?
Yes. At 199.5W and 1750mA constant current output with a wide 100–305VAC input, this driver is well-matched to the high-power LED fixtures used in parking garages, underpasses, and tunnel lighting where robust, non-dimmable operation is needed.
What is the difference between the ELG-200-C1750 base model and the C1750A, C1750AB, C1750B, C1750D2, and C1750DA variants?
All variants deliver 199.5W at 1750mA. The base C1750 has no dimming or adjustment. The A adds output current adjustability. The B adds 3-in-1 dimming (1–10V/PWM/resistance). The AB combines adjustability and 3-in-1 dimming. The D2 adds 0–10V/PWM dimming at a max voltage of 114V. The DA adds DALI dimming protocol support.
Can this driver be used in industrial LED high-bay lighting for 24/7 operation?
Yes. The ELG-200-C1750 is designed for constant current operation with a 5-year warranty and a metal enclosure rated IP67. Its -40°C to +85°C operating range supports continuous operation in demanding industrial environments.
Is the ELG-200-C1750 compatible with universal mains input voltages for international projects?
Yes. The driver accepts 100–305VAC input, covering both 120V and 240V mains standards, which makes it usable across North American, European, and other international electrical systems without modification.
