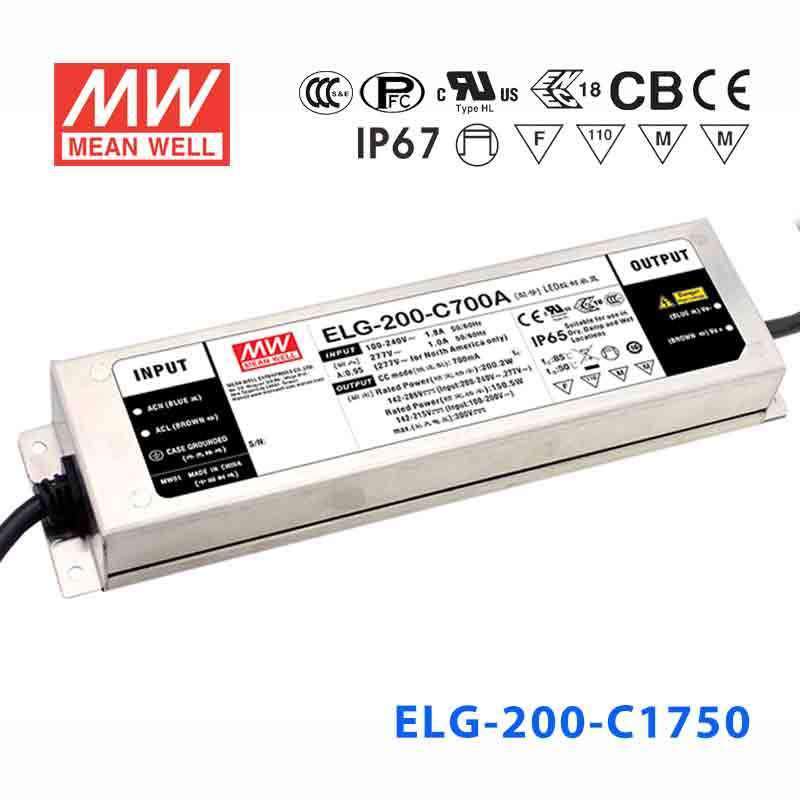

Mean Well ELG-200-C1750A Power Supply 200W 1750mA - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C1750A Power Supply 200W 1750mA - Adjustable
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage120 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1750A be used for LED retrofit projects where fine-tuning of output current is needed?
Yes. The "A" suffix indicates the output current can be adjusted via an external potentiometer, allowing installers to fine-tune current delivery within the driver's rated range. This is useful when retrofitting fixtures with slightly different LED forward current requirements.
What type of LED installations benefit from the ELG-200-C1750A's adjustable output?
Applications such as customized LED downlight arrays, architectural linear lighting, and modular LED panels benefit from current adjustability, since it allows the driver to be matched precisely to the LED load without relying solely on standard fixed-current models.
Is the ELG-200-C1750A rated for damp or outdoor locations?
The ELG-200-C1750A carries an IP65 water-resistant rating, which covers protection against low-pressure water jets, suitable for covered outdoor areas, damp indoor locations, or installations where splashing is possible but direct immersion is not expected.
Can the ELG-200-C1750A power mid-voltage LED module strings without an external current-limiting device?
Yes. As a constant current driver, the ELG-200-C1750A inherently regulates current to 1750mA within its CC voltage range of 57–114V. No additional current-limiting component is required for LED modules connected in series within that voltage window.
How does the ELG-200-C1750A differ from the ELG-200-C1750 base model?
The C1750A adds output current adjustability via a potentiometer and has an IP65 water-resistant rating rather than IP67. Both deliver 199.5W at 1750mA with the same 57–114V CC voltage range and 100–305VAC input.
Can the ELG-200-C1750A be installed inside a luminaire housing for industrial or commercial LED lighting?
Yes. Its compact 244 x 71 x 37.5 mm metal enclosure and IP65 rating allow installation inside luminaire housings used in commercial or light industrial LED fixtures, provided the housing provides adequate ventilation for thermal management.
