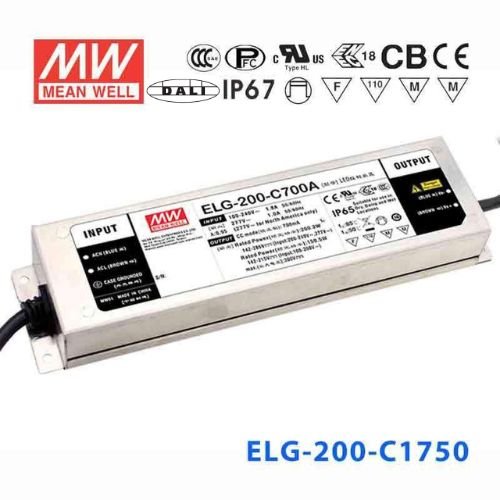

Mean Well ELG-200-C1750DA Power Supply 200W 1750mA - DALI
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating199.5 Watt
-
Output Voltage120 Volt
-
Rated Current1.75 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-200-C1750DA drive LED downlights in a commercial outdoor canopy application?
Yes. The ELG-200-C1750DA is rated IP67, making it fully sealed against dust and temporary water immersion. At 199.5W and 1750mA constant current, it can power multiple high-wattage LED downlights mounted in outdoor canopy or soffit fixtures where exposure to rain and condensation is expected.
Is this driver suitable for LED signage modules installed on building exteriors?
Yes. The IP67 waterproof rating and operating temperature range of -40°C to +85°C make the ELG-200-C1750DA appropriate for outdoor LED sign cabinets and facade signage. The 57–114V CC output range accommodates series strings of LED modules whose combined forward voltage falls within that window.
Can the ELG-200-C1750DA be integrated into a DALI lighting control system?
Yes. The DA suffix indicates this model includes DALI dimming capability, allowing it to receive dimming commands from DALI controllers and building automation systems. This makes it well suited to commercial projects where centralized, addressable LED dimming is required.
How many LEDs can the ELG-200-C1750DA drive in a series string?
The ELG-200-C1750DA operates as a constant current driver with a CC output voltage range of 57–114V. The number of LEDs in the series string depends on the forward voltage of each individual LED; LEDs with higher forward voltages result in fewer devices per string. The driver will regulate the current at 1750mA so long as the total string voltage stays within 57–114V.
Does the ELG-200-C1750DA operate reliably in cold-storage or freezer room lighting installations?
Yes. The operating temperature range starts at -40°C, which covers industrial cold-storage and freezer environments. The IP67-rated metal enclosure also tolerates condensation that forms when the unit transitions between temperature zones.
What certifications does the ELG-200-C1750DA hold for international projects?
The ELG-200-C1750DA carries c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications. This covers North America (UL), the EU (CE, ENEC), Australia/New Zealand (c_rcm), China (CCC), and Russia/Eurasia (EAC), making it usable across multiple regulatory markets.
