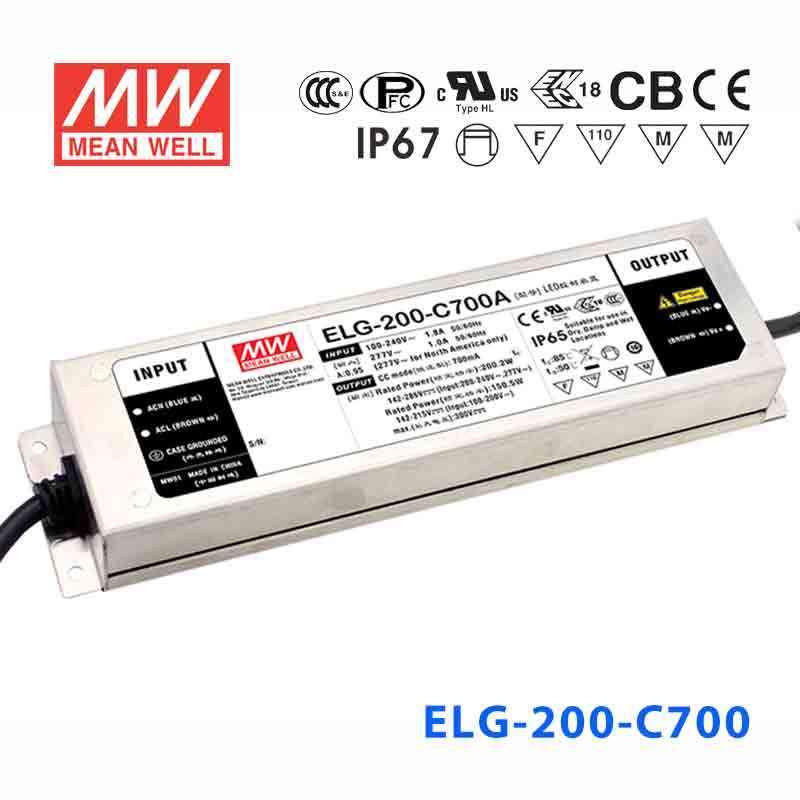

Mean Well ELG-200-C700B Power Supply 200W 700mA - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-200-C700B Power Supply 200W 700mA - Dimmable
Description
Description
The ELG-200 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating200.2 Watt
-
Output Voltage300 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-200-C700B be used to power LED modules in an outdoor architectural lighting installation?
Yes. The ELG-200-C700B carries an IP67 waterproof rating, meaning it can be installed in outdoor enclosures or luminaires exposed to rain and temporary water immersion. It delivers 200.2W at 700mA constant current, suitable for series-connected LED modules in facade, landscape, or sign lighting.
Is the ELG-200-C700B suitable for driving LED downlights in a commercial space with a dimming control system?
Yes. The 'B' designation indicates built-in analog dimming support, allowing the driver to respond to a 0–10V or PWM dimming signal from a building control system. At 700mA and up to 200.2W, it can drive a substantial LED downlight array. The LED chain must present a combined forward voltage within the 142–286V CC range.
Can this driver be installed in a wet-rated or washdown area without additional enclosure protection?
The ELG-200-C700B is rated IP67, which means it is protected against temporary immersion in water up to 1 meter. This allows installation in wet-rated luminaire housings, washdown areas, and outdoor locations without requiring a separate waterproof enclosure around the driver itself. The metal case also provides robust mechanical protection.
What is the LED load compatibility of the ELG-200-C700B in terms of voltage range?
The ELG-200-C700B is a constant current driver outputting 700mA with a CC voltage range of 142–286V. Any LED load with a combined forward voltage falling within that range at 700mA is compatible. The actual number of LEDs depends on the forward voltage of each LED at operating current.
How does the ELG-200-C700B compare to the ELG-200-C700A and ELG-200-C700AB?
The ELG-200-C700B provides analog dimming but no output adjustment (trimming), while the ELG-200-C700A is adjustable with no dimming and the ELG-200-C700AB combines both features. The ELG-200-C700B and ELG-200-C700DA both carry IP67 ratings, whereas the A and AB variants are IP65. All share 200.2W output and 700mA constant current.
Can the ELG-200-C700B operate reliably in an unheated outdoor cabinet during winter?
Yes. The operating temperature range is -40°C to +85°C, so the driver handles extreme cold without issue. Combined with IP67 waterproofing, the ELG-200-C700B is well suited to unheated outdoor enclosures in cold climates where condensation and frost are concerns.
