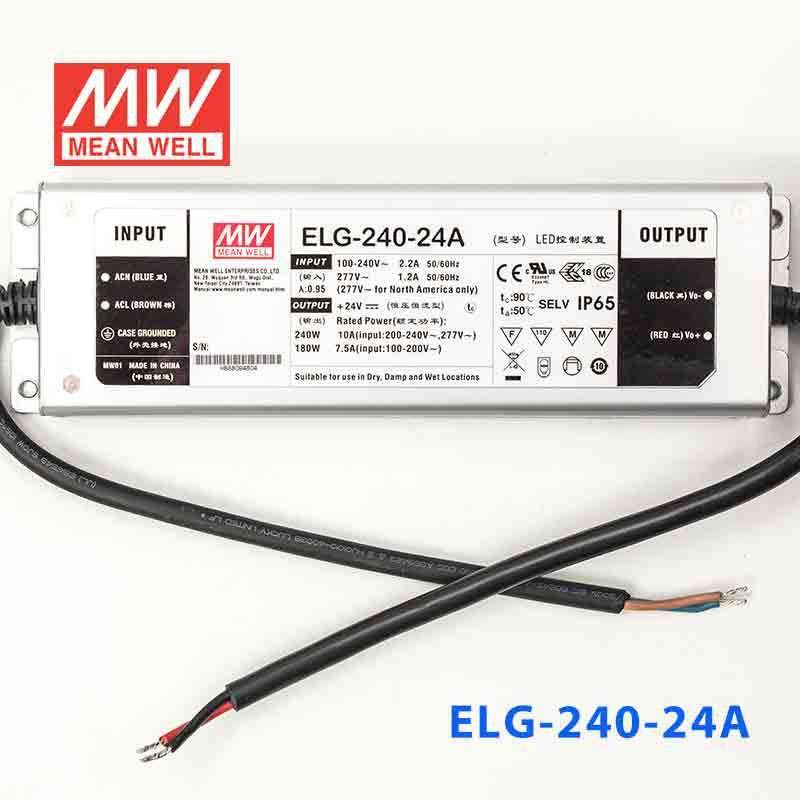

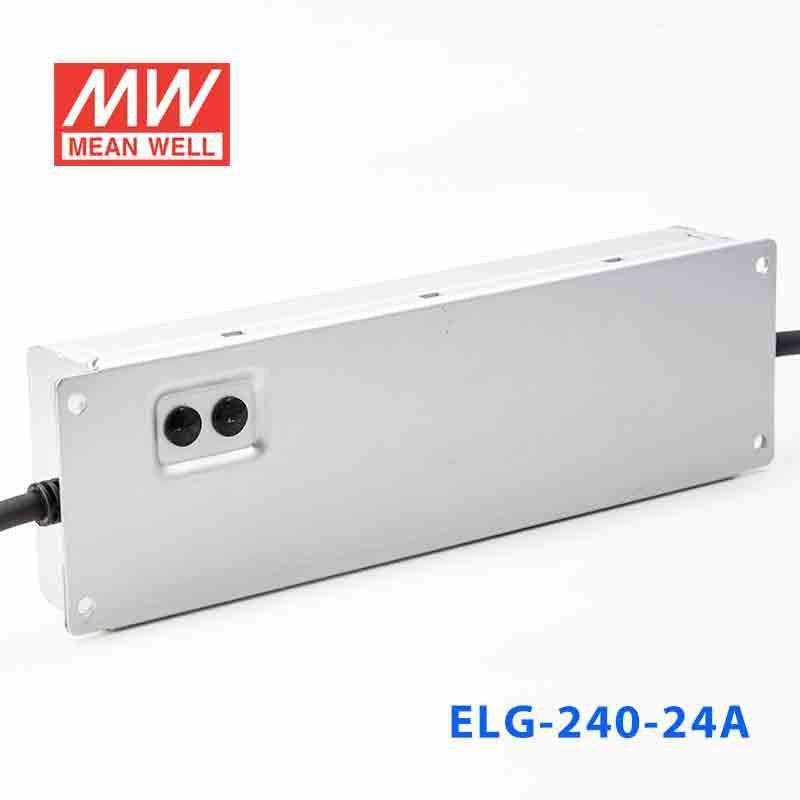

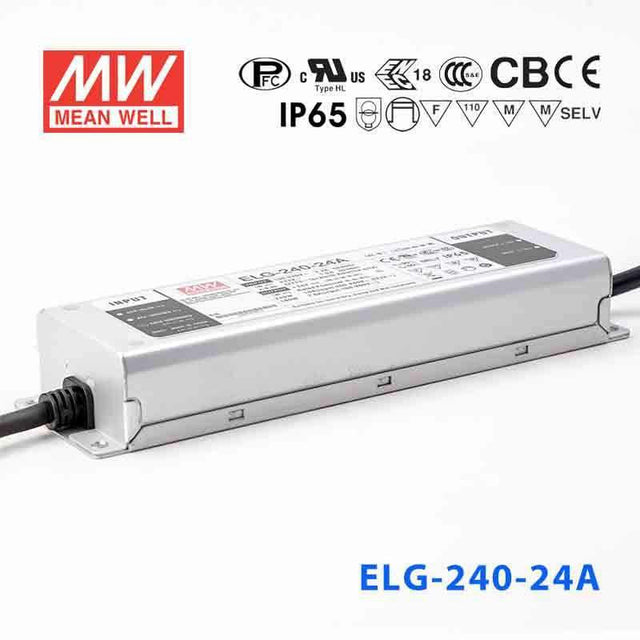

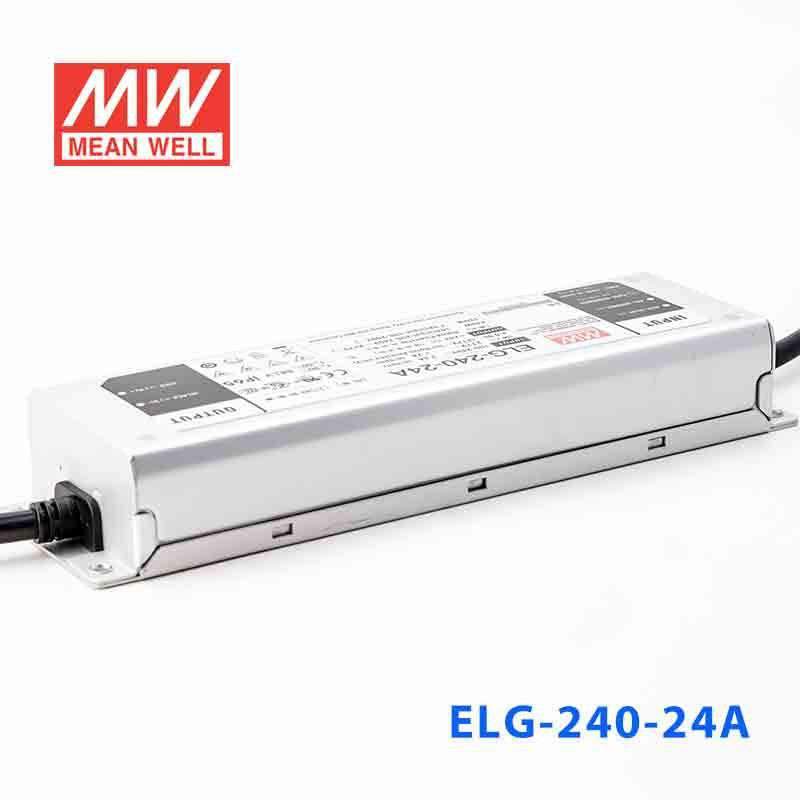

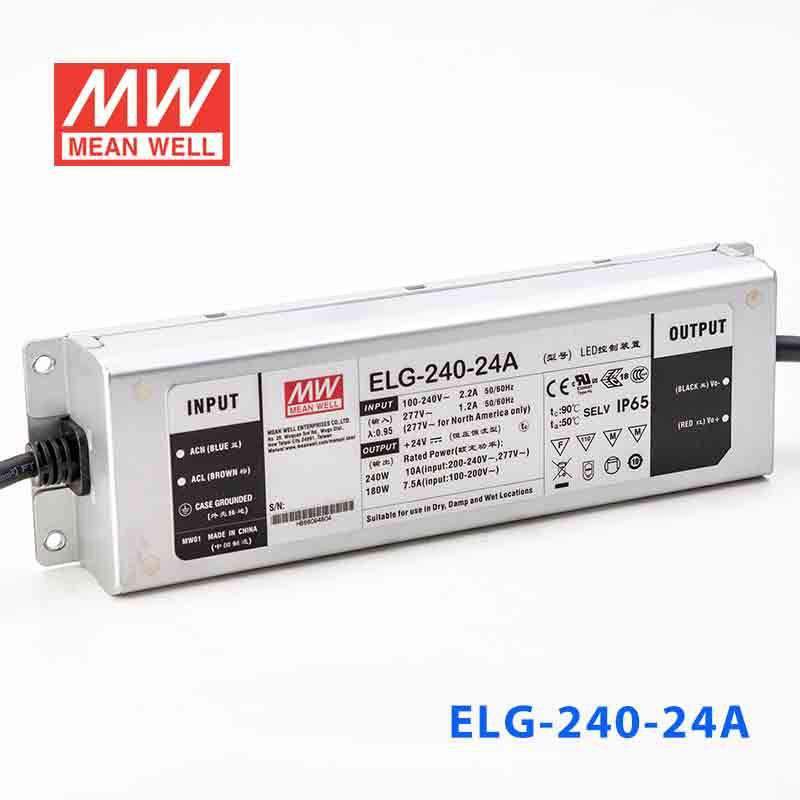

Mean Well ELG-240-24A Power Supply 240W 24V - Adjustable

The 'A' suffix indicates the output voltage and current are adjustable via an external trimmer or resistor, allowing fine-tuning of the 24V output within the CC voltage range (12–24V) and current up to 10A. This is useful when commissioning multi-zone 24V LED systems where LED forward voltages vary across fixtures.

Yes. At 240W and 24V with adjustable output, the ELG-240-24A suits large cove, pelmet, or under-shelf LED strip installations in hotels and restaurants. The IP65 water-resistant rating provides protection against cleaning spray and condensation common in hospitality environments.

The driver outputs 240W at 24V. For 24V strip rated at 10W per meter: 240W ÷ 10W/m = 24m at full load. Apply an 80% continuous-use derating for a practical maximum of approximately 19 meters. Check your strip's rated power per meter and apply the same calculation.

Yes. With IP65 water-resistant rating the driver tolerates rain splash and dust in outdoor covered locations such as building soffits, canopies, and awnings. The -40°C to +90°C operating temperature range ensures reliable performance in both winter and summer extremes.

Yes. The 240W output at 24V allows parallel connection of multiple 24V LED fixtures as long as total load stays within 240W (10A). The adjustable output is useful for compensating for voltage drop over long cable runs by slightly increasing the set voltage at the driver.

The ELG-240-24A carries c_BSI, CB, CCC, CE, EAC, ENEC, KC, c_RCM, and UL certifications with a 5-year warranty. This broad certification portfolio covers North American, European, Australian, Chinese, and Korean markets, making it suitable for multinational commercial lighting projects.
