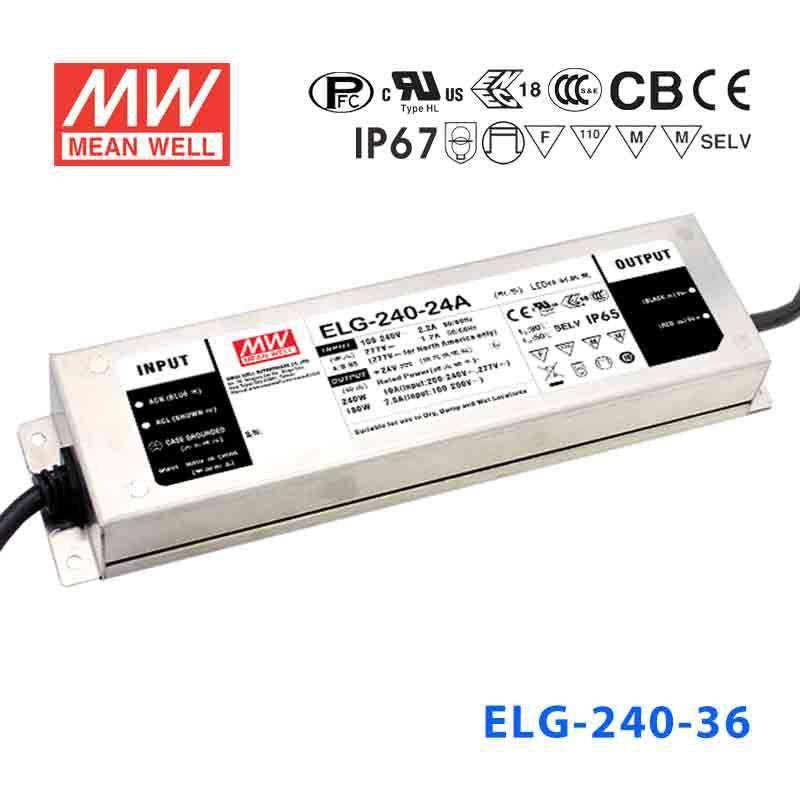

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-240-36AB Power Supply 240W 36V - Adjustable and Dimmable
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating239.76 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-240-36AB be used for outdoor LED signage enclosures?
Yes. The ELG-240-36AB is rated IP65, meaning it is protected against dust and low-pressure water jets, making it suitable for installation inside outdoor sign cabinets. Its metal case adds mechanical protection in demanding sign installation environments.
How many meters of 36V LED strip can the ELG-240-36AB drive?
The ELG-240-36AB delivers 239.76W at 36V. Divide 239.76 by your strip's rated watts per meter to get the maximum run — for example, at 14.4 W/m that is about 16.6 m. Always check your specific strip's rated power per meter and derate by around 20% for thermal safety.
Is the ELG-240-36AB suitable for powering 36V LED channel letter modules?
Yes. The 239.76W output at 36V and 6.66A provides ample capacity for multiple strings of 36V channel letter LED modules. The IP65 rating and wide 100–305VAC input make it a practical choice for sign cabinets across different installation markets.
Can I use the ELG-240-36AB for architectural facade or cove lighting projects?
Yes. At 239.76W with a 36V output and an operating range of –40°C to +90°C, this driver handles demanding facade and cove lighting loads. The adjustable output trim lets integrators fine-tune voltage to match long LED strip runs subject to small voltage drop.
Does the ELG-240-36AB support dimming for lighting control integration?
Yes. The AB suffix indicates built-in dimming capability in addition to adjustable output voltage. This allows the driver to interface with compatible dimming control systems for scene-based or automated brightness control in architectural or retail lighting installations.
Is this driver appropriate for 36V LED retrofit installations in commercial buildings?
Yes. The ELG-240-36AB accepts 100–305VAC, covering standard commercial voltages worldwide. Its 239.76W rating at 36V suits retrofit projects replacing fluorescent strips or metal halide fixtures with 36V LED strip or module systems.
How does the ELG-240-36AB differ from the ELG-240-36B and ELG-240-36DA in the same family?
All three share 239.76W, 36V, 6.66A output and the same 244 × 71 × 37.5 mm enclosure. The AB suffix adds both adjustable output and built-in dimming; the B suffix provides dimming only (no output trim); the DA suffix provides DALI digital dimming for building automation systems. The AB is rated IP65 while the B and DA are rated IP67.
