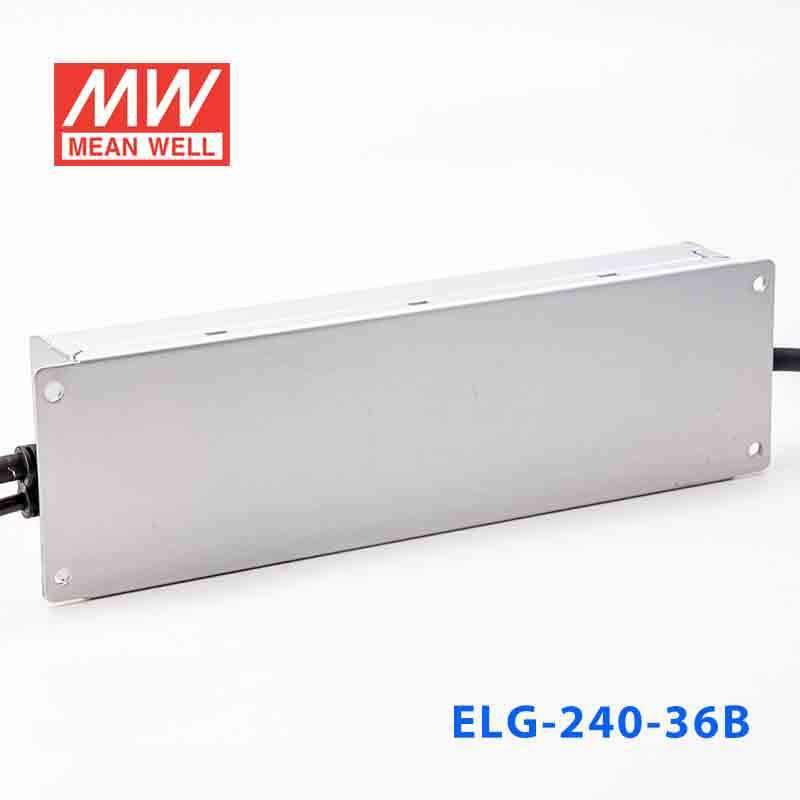

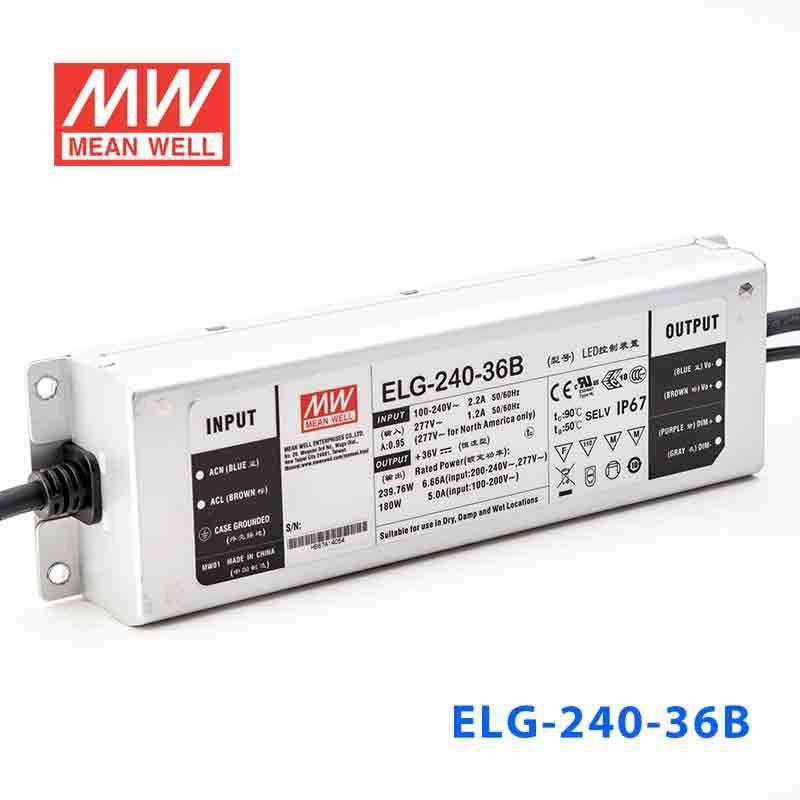

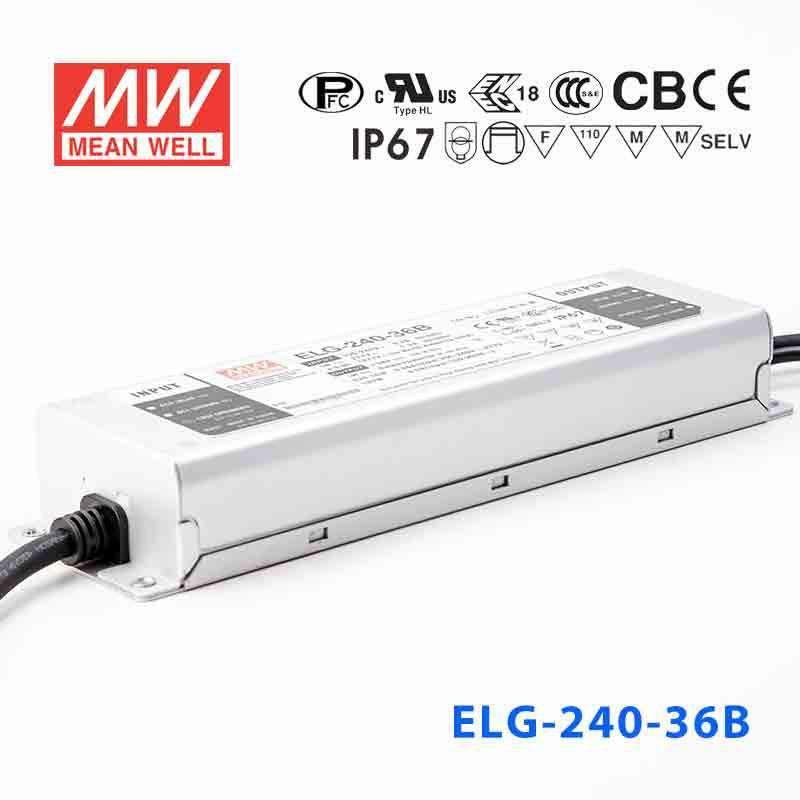

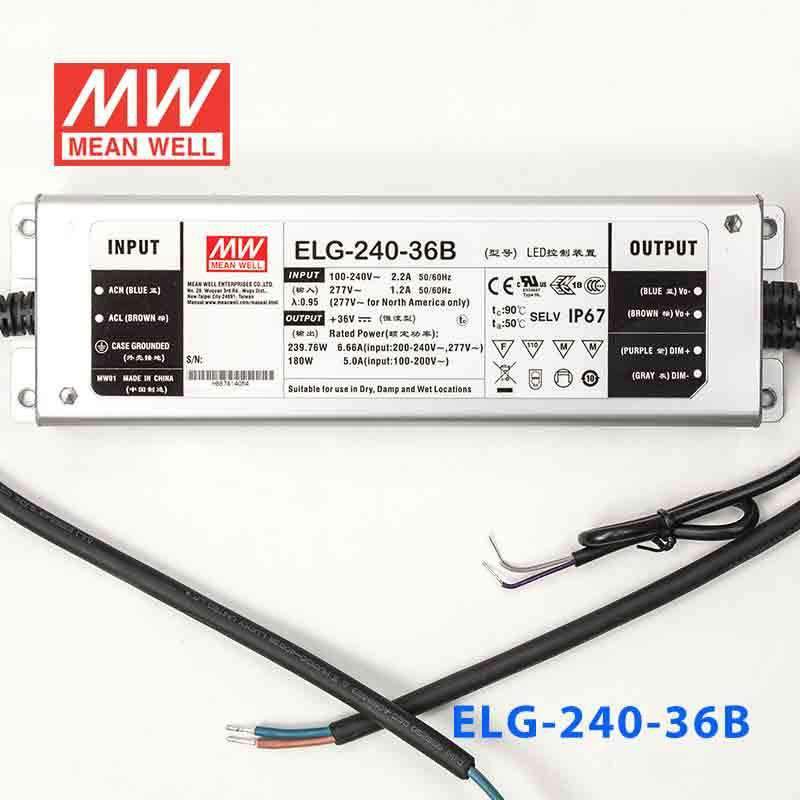

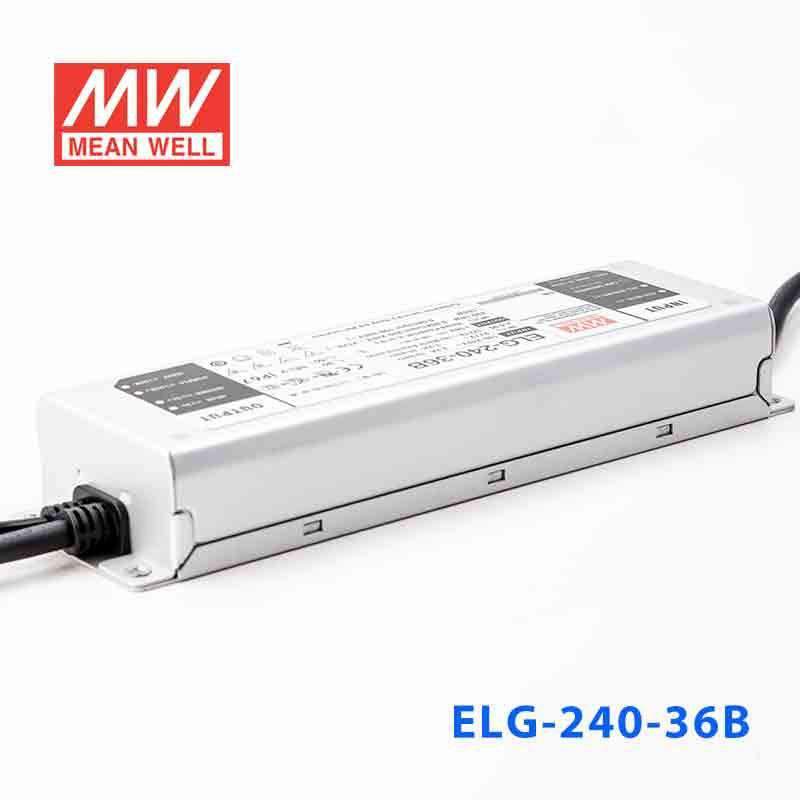

Mean Well ELG-240-36B Power Supply 240W 36V - Dimmable
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating239.76 Watt
-
Output Voltage36 Volt
-
Rated Current6.66 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
Can the ELG-240-36B be installed in a fully exposed outdoor location?
Yes. The ELG-240-36B carries an IP67 waterproof rating, meaning it is fully sealed against dust and can withstand temporary immersion in water up to 1 meter. It can be mounted in exposed outdoor enclosures, wet-area sign cabinets, or landscape lighting fixtures.
How much 36V LED strip can the ELG-240-36B power?
The ELG-240-36B provides 239.76W at 36V. For a 12 W/m strip that allows up to approximately 20 meters (239.76 ÷ 12). Always confirm your specific strip's rated power per meter and apply a 20% derating factor for safe continuous operation.
Is the ELG-240-36B suitable for outdoor landscape or garden lighting with 36V LED fixtures?
Yes. The IP67 rating ensures the driver is protected against rain and brief water immersion, making it well suited to landscape and garden installations. The –40°C to +90°C operating range covers extreme seasonal temperature swings.
Can this driver power 36V LED wash fixtures for outdoor architectural uplighting?
Yes. The 239.76W at 36V provides substantial capacity for wall wash or uplight fixtures, and the IP67 enclosure allows mounting close to the fixture in exposed locations. The wide 100–305VAC input accepts any mains supply voltage.
Does the ELG-240-36B support dimming for hospitality or retail scene control?
Yes. The B suffix indicates built-in dimming capability, allowing brightness adjustment via a compatible control signal. This makes it appropriate for mood or scene-controlled lighting in restaurants, hotels, or display environments.
What is the operating temperature range, and does the ELG-240-36B work in cold-climate outdoor installations?
The ELG-240-36B operates from –40°C to +90°C. The –40°C lower limit covers cold-climate installations such as outdoor signage or pathway lighting in regions where winter temperatures drop well below freezing.
