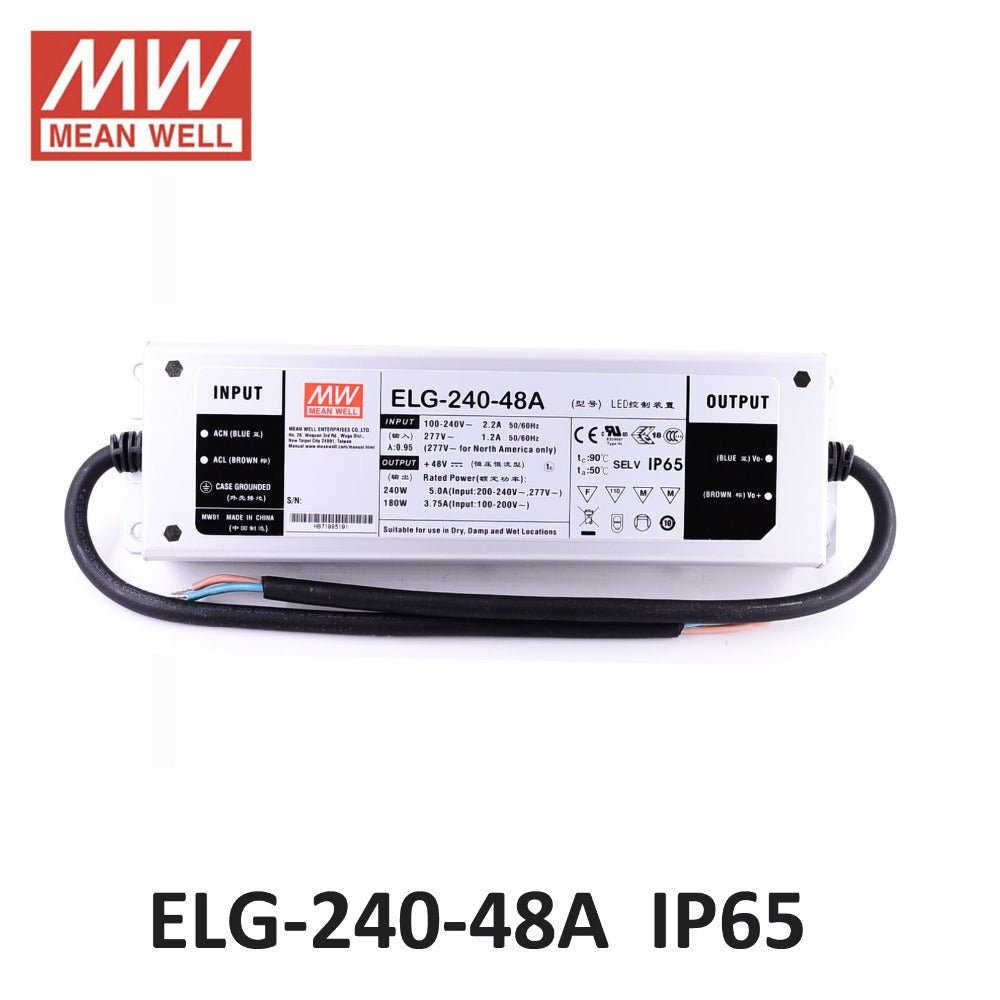

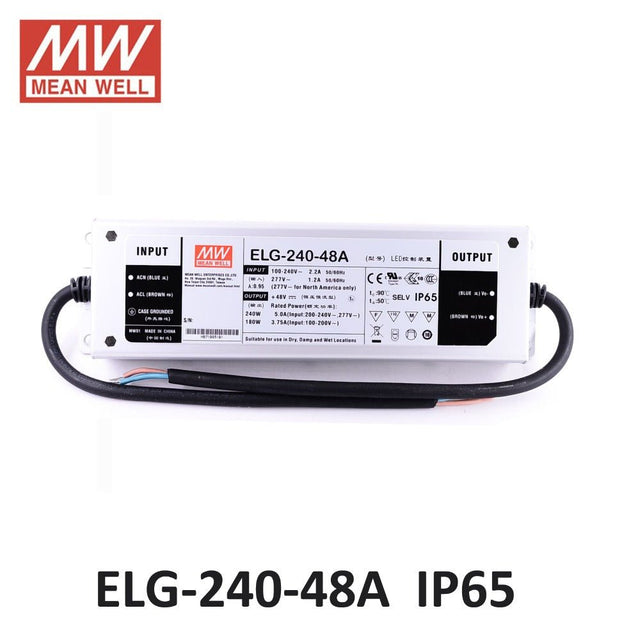

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-240-48D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
::specification::
Frequently Asked Questions
What dimming interface does the ELG-240-48D2 use?
The D2 suffix denotes a digital dimming interface compatible with both PWM signal and 0–10V analog input. This gives installers flexibility to integrate the driver with modern lighting control systems that output either signal type.
How many meters of 48V LED strip can the ELG-240-48D2 support?
The ELG-240-48D2 delivers 240W at 48V and 5A. A 48V strip rated at 15W per meter could run up to 16 meters; at 20W per meter the limit is 12 meters. Always verify the strip's rated wattage per meter and stay within the 240W maximum.
Is the ELG-240-48D2 safe to install in outdoor or wet environments?
Yes. The ELG-240-48D2 carries an IP67 waterproof rating, indicating it is fully dust-tight and can withstand temporary immersion. It is appropriate for outdoor enclosures, covered outdoor signage, and installations exposed to rain or wash-down.
Can the ELG-240-48D2 power a large LED video wall or billboard backlight?
Yes. At 240W and 48V, this driver is suitable for medium-to-large LED backlit signage and display panels running on 48V. The D2 dimming interface also enables brightness control, which is useful for adjusting signage luminance based on ambient conditions.
What certifications does the ELG-240-48D2 carry?
The ELG-240-48D2 is certified to BSMI, CB, CE, EAC, and UL standards, covering markets in Taiwan, international safety, Europe, the Eurasian Economic Union, and North America.
Can the ELG-240-48D2 handle wide input voltage ranges for global deployment?
Yes. The input range is 100–305VAC, accommodating standard voltages in the Americas (110–120V), Europe (220–240V), and industrial 277V supplies. This makes it suitable for multinational projects without requiring separate driver SKUs.
