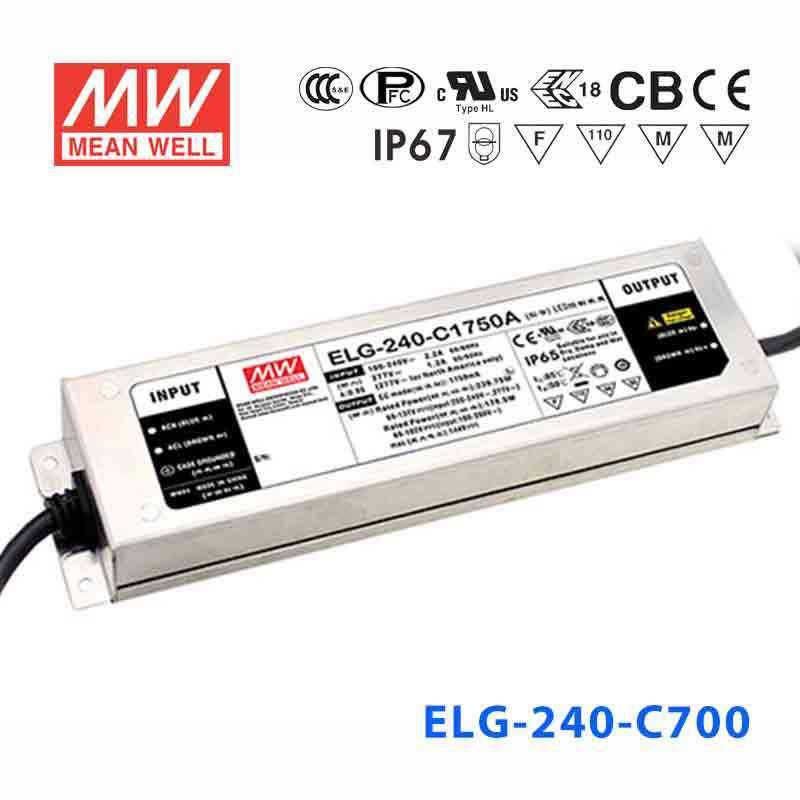

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well ELG-240-C700AB Power Supply 240W 700mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-240-C700AB Power Supply 240W 700mA - Adjustable and D...
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 93% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 75 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 244x71x37.5 |
| Packing | 12pcs / 15.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating240.1 Watt
-
Output Voltage360 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length9.61 in
-
Width2.8 in
-
Height1.48 in
-
Weight2.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-240-C700AB drive LED signage or street lighting modules and be dimmed from a lighting controller?
Yes. The ELG-240-C700AB delivers 700mA constant current across a 172–343V range, suitable for long series LED strings in signage and street lighting. The 'AB' designation means it supports both output current adjustment and analog dimming via 0–10V, PWM, or resistance input, allowing integration with standard commercial lighting controllers.
What dimming protocols does the ELG-240-C700AB support?
The 'B' component of the 'AB' suffix indicates analog dimming, which on Mean Well ELG series drivers supports three signal types: 0–10V analog voltage, PWM signal, and resistance control. This covers most conventional lighting control systems used in commercial, architectural, and industrial installations.
Is the ELG-240-C700AB suitable for outdoor LED facade or accent lighting where the driver is inside a weatherproof enclosure?
Yes. With IP65 protection, the ELG-240-C700AB is rated for dust and low-pressure water jet resistance, making it suitable for outdoor weatherproof enclosures used in facade and accent lighting. The -40°C to +85°C operating range covers outdoor climatic extremes, and the 100–305VAC input accepts diverse supply voltages.
How does the ELG-240-C700AB differ from the plain ELG-240-C700 and ELG-240-C700A?
All three are 240.1W, 700mA constant current drivers with a 172–343V CC range. The base ELG-240-C700 is IP67 with no adjustment or dimming. The ELG-240-C700A is IP65 with output current adjustability only. The ELG-240-C700AB is IP65 and adds both output adjustability and analog dimming. Choose based on whether you need dimming control and whether IP65 or IP67 is required.
How many LEDs can the ELG-240-C700AB support in a series string?
The driver provides 700mA constant current with an output voltage window of 172–343V. The actual number of LEDs per string is determined by each LED's forward voltage — the total forward voltages in the series must sum to a value between 172V and 343V. No single count applies across all LED types.
What global certifications does the ELG-240-C700AB carry?
The ELG-240-C700AB is certified to c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL, providing coverage for North America, Europe, China, Australia, and Russia/CIS markets. It carries a 5-year warranty and accepts 100–305VAC universal input.
