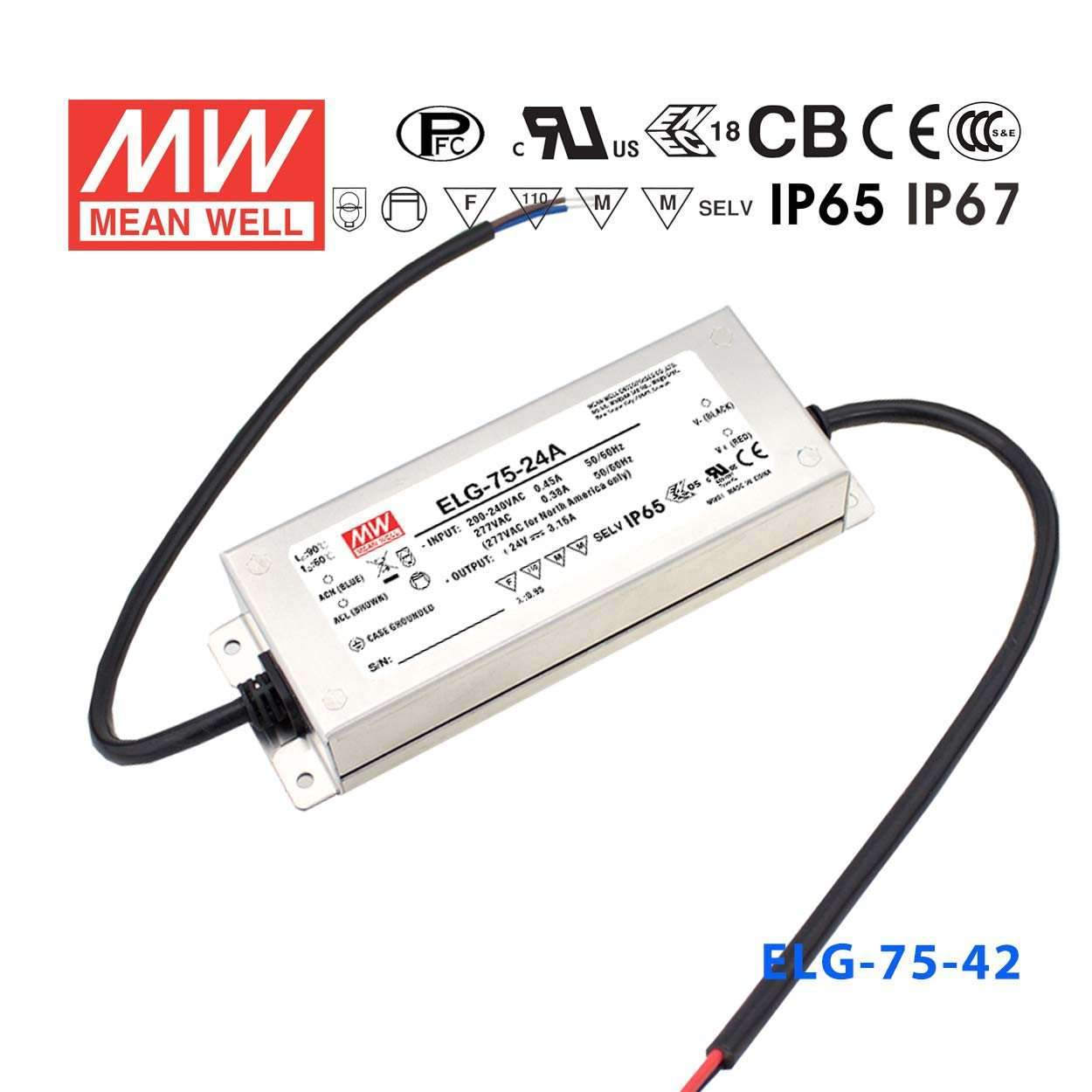

Mean Well ELG-75-42A Power Supply 75W 42V - Adjustable
Description
Description
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75.6 Watt
-
Output Voltage42 Volt
-
Rated Current1.8 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the ELG-75-42A suitable for outdoor LED lighting installations?
The ELG-75-42A is rated IP65, which means it is protected against dust and low-pressure water jets from any direction. It is suitable for rain-exposed outdoor fixtures and sign cabinets but is not intended for temporary immersion—choose the IP67-rated variants for submersion-risk locations.
How many meters of 42V LED strip can the ELG-75-42A drive?
The ELG-75-42A delivers 75.6W at 42V. For a 10 W/m strip, the maximum is approximately 7.5 meters; for an 8 W/m strip, about 9.5 meters. Divide 75.6W by your strip's rated power per meter and reduce by 20% to account for thermal derating and efficiency losses.
Can I adjust the output current of the ELG-75-42A for different LED loads?
Yes. The 'A' suffix indicates a built-in potentiometer that allows the output to be trimmed within the CC voltage range of 21–42V. This is useful for fine-tuning the current to match a specific LED load or to compensate for wiring resistance in longer runs.
Is the ELG-75-42A a good fit for powering 42V LED strips in a retail display case?
Yes. The adjustable output and 75.6W at 42V make the ELG-75-42A well suited to retail display lighting where precise brightness control without a separate dimmer is needed. The wide 100–305VAC input range supports both 120V and 230V installations.
Can the ELG-75-42A be used in a cold-climate outdoor application?
Yes. The ELG-75-42A operates from -40°C to +85°C, making it suitable for outdoor signage and landscape lighting in cold regions. Its IP65 rating handles rain and dust exposure typical of outdoor enclosures.
How does the ELG-75-42A differ from the ELG-75-42B?
The ELG-75-42A ('A' suffix) adds a potentiometer for analog output adjustment and is rated IP65. The ELG-75-42B ('B' suffix) adds 3-in-1 dimming (10V, PWM, resistance) for remote control and is rated IP67 for higher water ingress protection. Both deliver 75.6W at 42V with 1.8A output.
