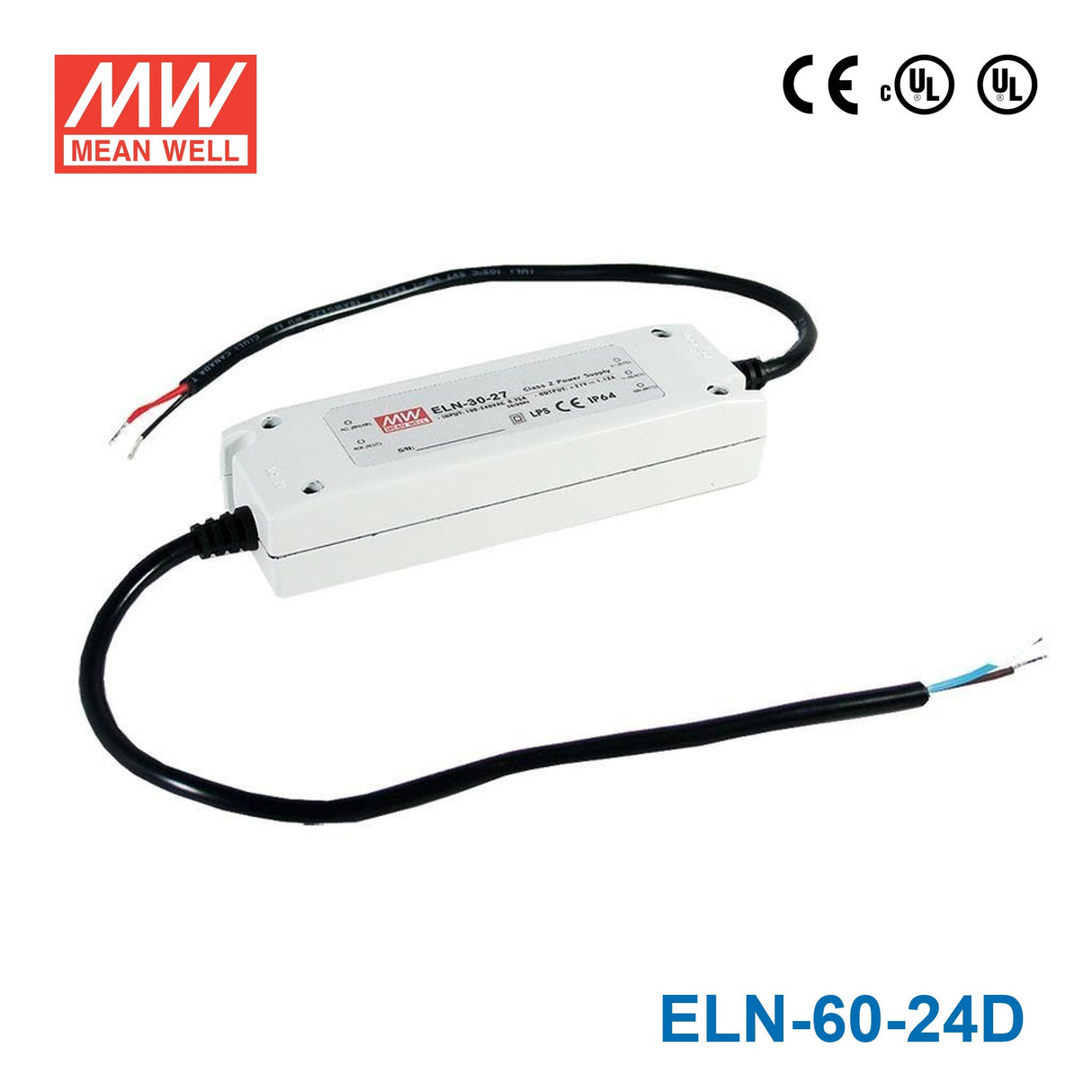

Mean Well ELN-60-24D Single Output Class 2 Switching Power Supply 60W 24V CC

$15.87 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

AC-DC Single output LED driver Constant Current (CC); Output 24Vdc at 2.5A; Dimming with 1-10Vdc; ELN-60-24D is succeeded by NPF-60D-24.

Specifications

  • Brand
    Mean Well
  • Series
    ELN Series
  • Power Rating
    60 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.00 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    1-10V
  • Standards Met
    CE,cUL,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    60°C~-20°C
  • Warranty
    2 Year
  • Length
    7.13 in
  • Width
    2.42 in
  • Height
    1.38 in
  • Weight
    0.88 lb

File Downloads

::specification::
