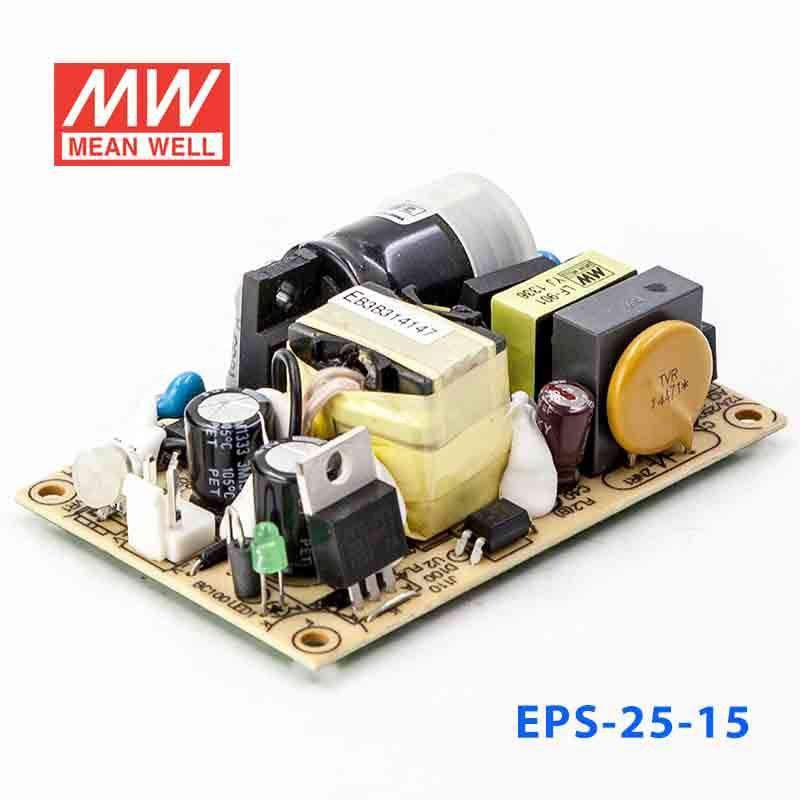

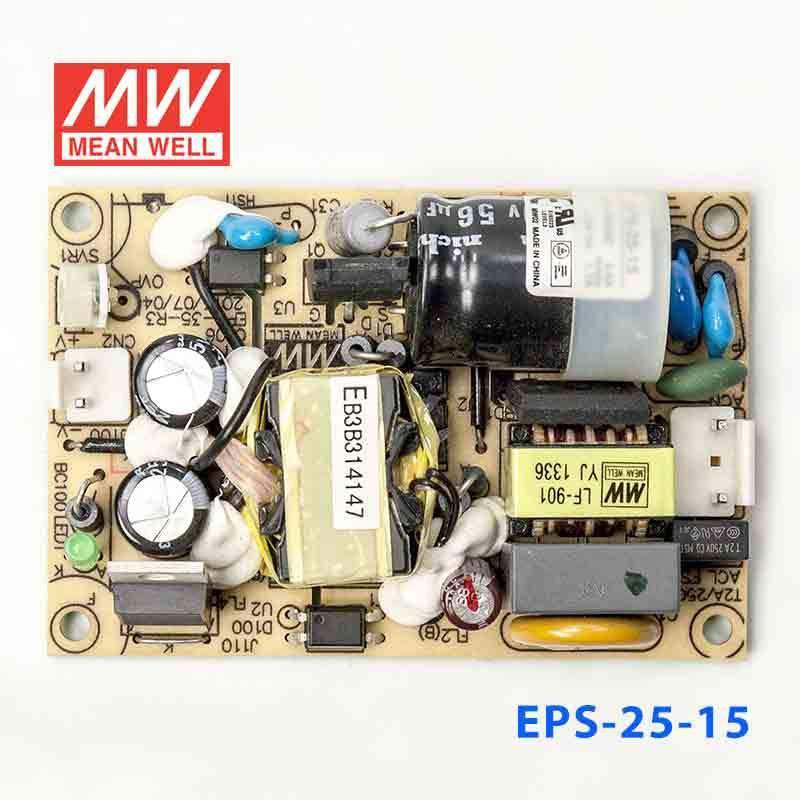

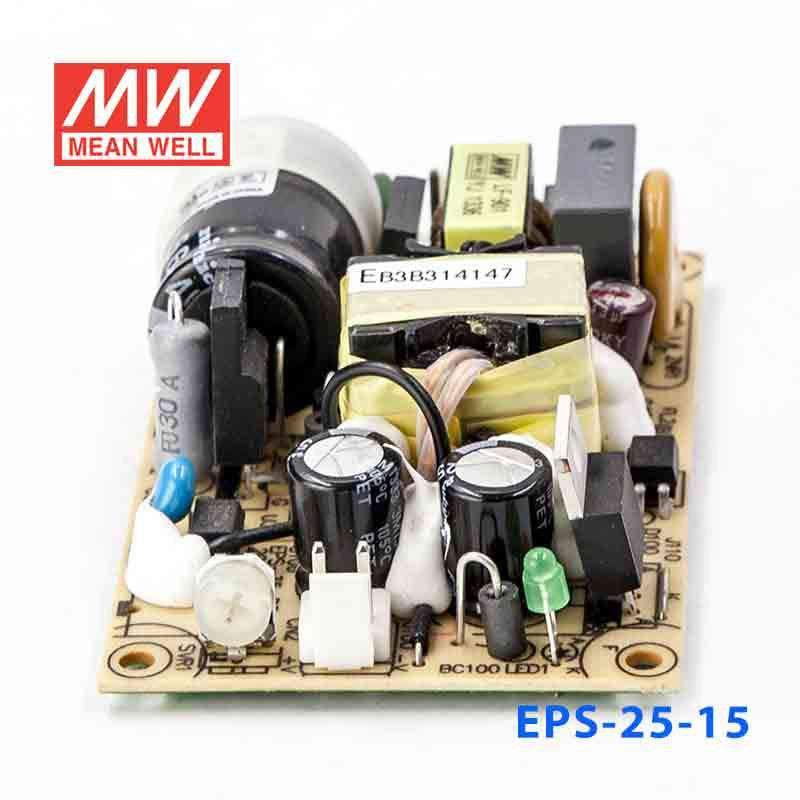

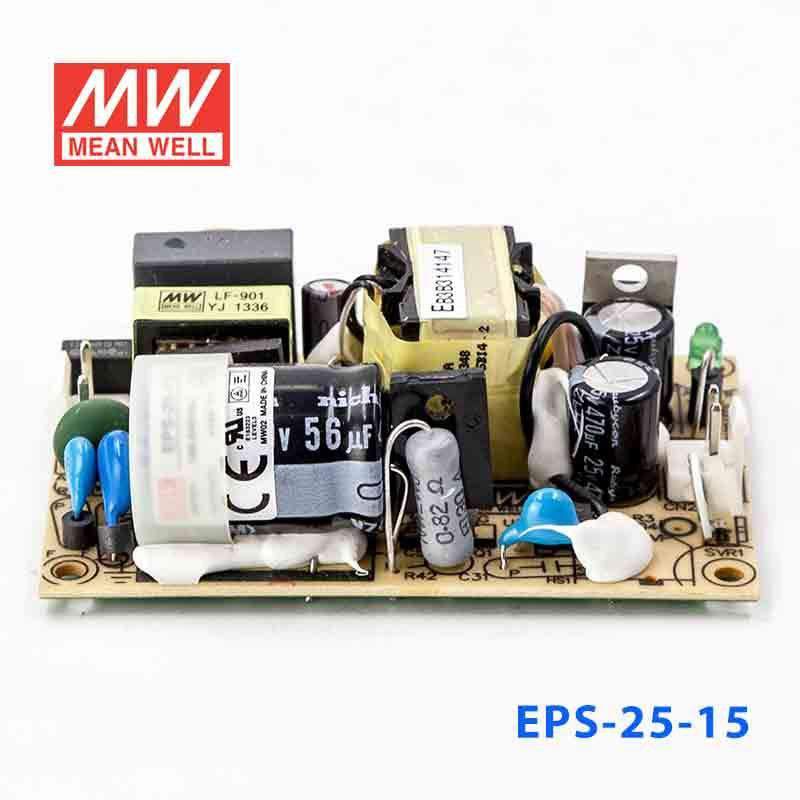

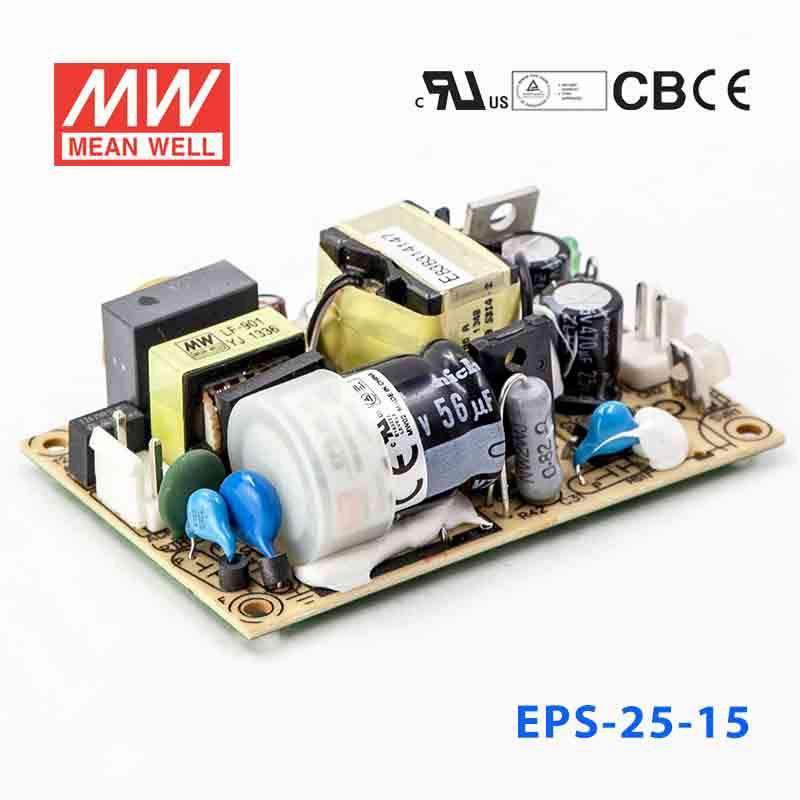

Mean Well EPS-25-15 Power Supply 25W 15V
The EPS-25 is a 25W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.5 Watt
-
Output Voltage15 Volt
-
Rated Current1.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the EPS-25-15 for 15V instrumentation or industrial control electronics?
Yes, if the equipment requires a constant 15V DC source and the total load stays within 25.5W and 1.7A. That makes it more appropriate for lighter-duty 15V control and instrumentation loads than for higher-current systems.
Is the EPS-25-15 a good fit for a compact embedded controller that runs on 15V?
It can work for embedded controllers, interface boards, or test assemblies that are designed for 15V constant voltage input. The limit to watch is the 1.7A maximum output current at 25.5W.
Can this model power 15V analog modules, meters, or small automation subsystems?
It can support 15V analog or automation subsystems as long as the combined requirement does not go past 25.5W or 1.7A. The 85-264VAC input range also helps when the same equipment may be used across different AC mains conditions.
Is the EPS-25-15 intended for indoor or outdoor conditions?
The provided specs give an operating temperature range of -30°C to +70°C, but they do not include an IP rating. Because no IP rating is listed, it is best treated as a supply for protected indoor equipment or for use inside an enclosure that provides environmental protection.
What are the other voltage options in the EPS-25 family besides the EPS-25-15?
The EPS-25 family includes EPS-25-3.3 at 16.5W, 3.3V, 5A; EPS-25-5 at 25W, 5V, 5A; EPS-25-7.5 at 25.5W, 7.5V, 3.4A; EPS-25-12 at 25.2W, 12V, 2.1A; EPS-25-15 at 25.5W, 15V, 1.7A; EPS-25-24 at 25.2W, 24V, 1.05A; EPS-25-27 at 25.65W, 27V, 0.95A; EPS-25-36 at 25.2W, 36V, 0.7A; and EPS-25-48 at 25.44W, 48V, 0.53A. Across the family, the voltage option changes the available current while staying in the same compact series format.
