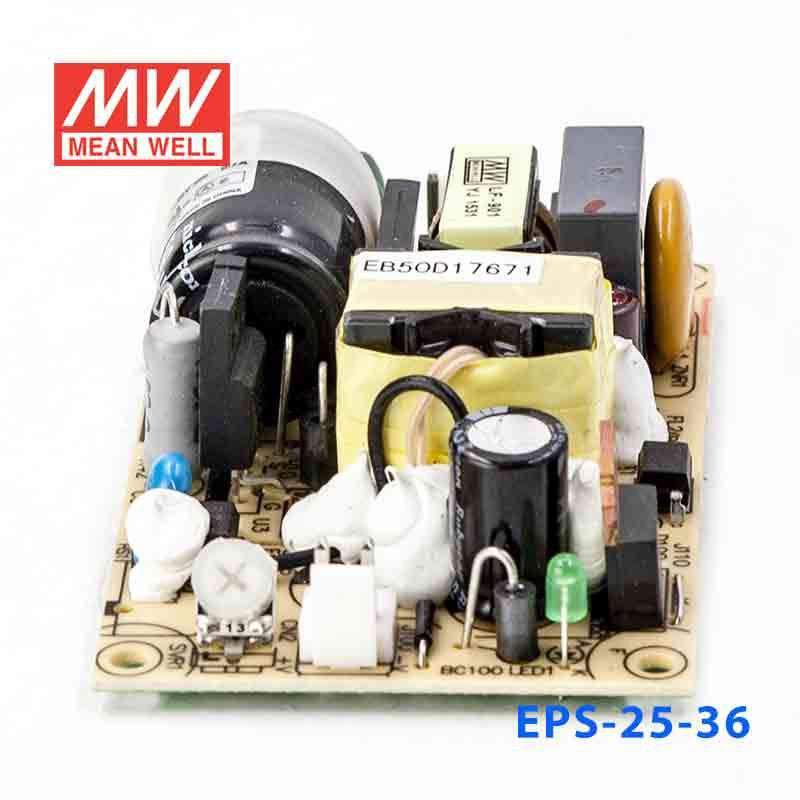

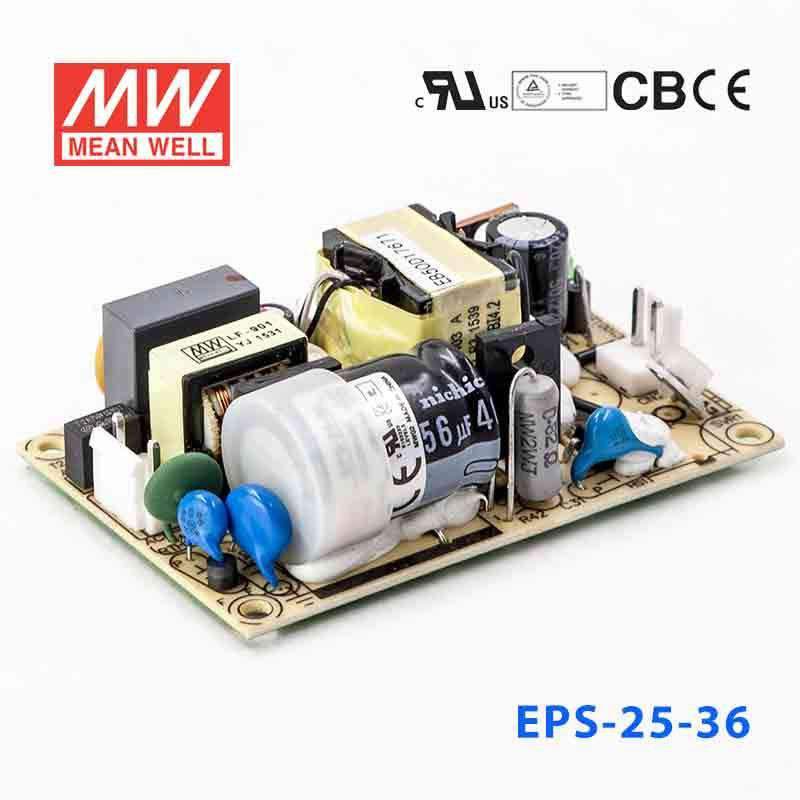

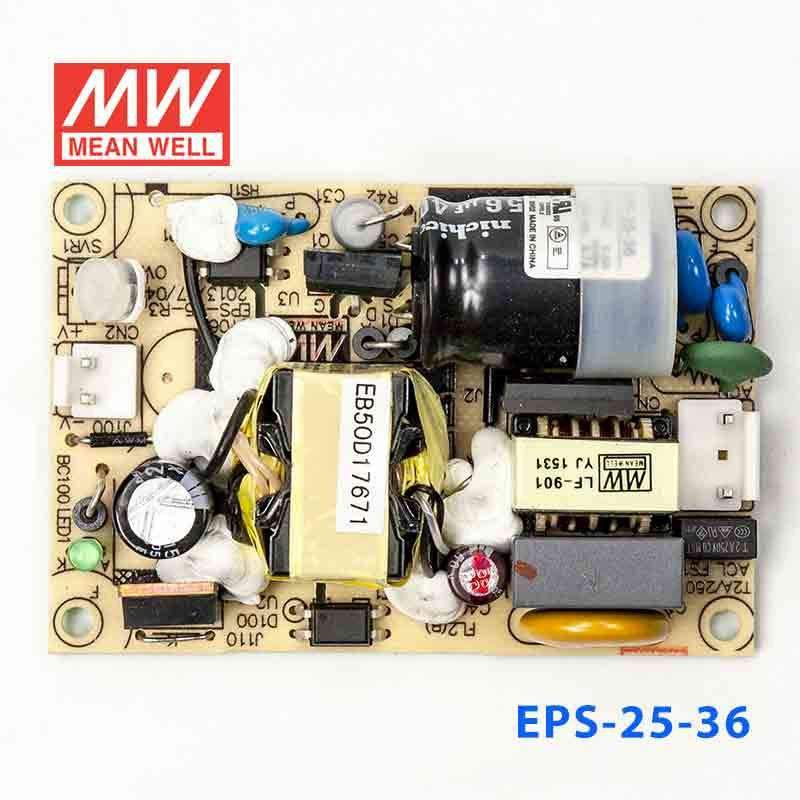

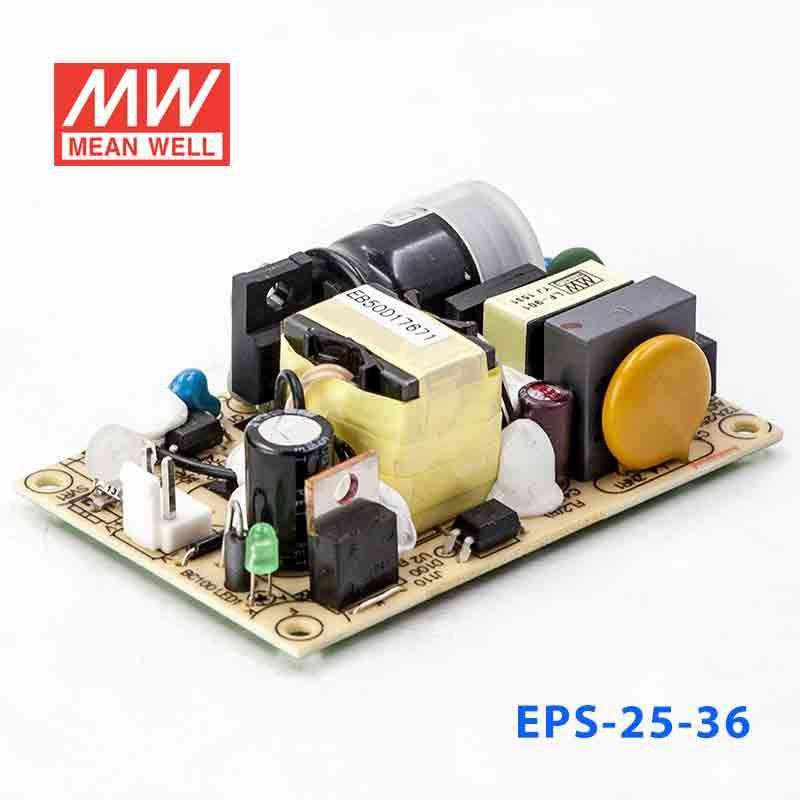

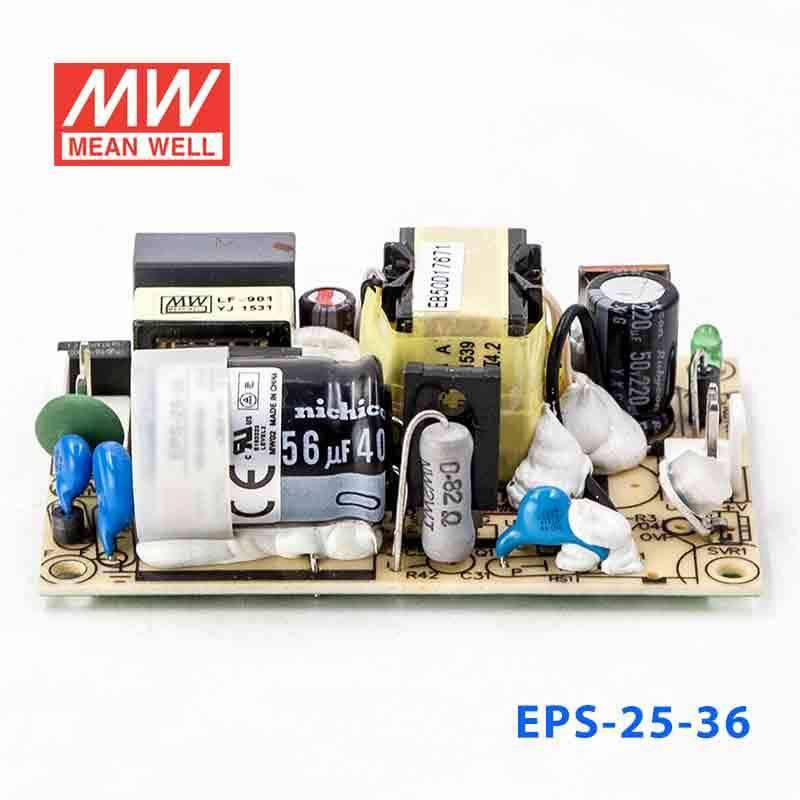

Mean Well EPS-25-36 Power Supply 25W 36V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~170% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~140% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+2P/3.96mm pitch, JST B3P/B2P-VH |
| Dimension (LxWxH) | 76.2x50.8x24 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-25-36 for a 36V industrial control board or automation module?
Yes, if the equipment requires constant-voltage 36V DC and stays within 0.7A and 25.2W. That makes it a fit for low-power 36V control electronics, embedded boards, and automation subassemblies that do not exceed those limits.
Is this 36V power supply suitable for a small embedded OEM device?
It can be, when the OEM device is designed for a constant 36V input and its load is no more than 0.7A. The compact 76.2 x 50.8 x 24.0 mm size also suits dense equipment layouts where board space is limited.
Can the EPS-25-36 power a 36V sensor or monitoring subsystem in a panel?
It is appropriate for a 36V subsystem if the total demand remains at or below 25.2W and 0.7A. For panel-level sensing, monitoring, or control electronics, the key requirement is that the load expects constant-voltage 36V DC.
Is the EPS-25-36 okay for outdoor or harsh-environment use?
The published operating range is -30°C to +70°C, so temperature coverage is broad. However, no IP rating is listed in the provided specs, so these specs do not indicate suitability for exposed outdoor, washdown, or weather-facing use without additional enclosure protection.
How does the EPS-25-36 compare with other EPS-25 models?
Within the EPS-25 group, the sibling outputs are 3.3V 5A at 16.5W, 5V 5A at 25W, 7.5V 3.4A at 25.5W, 12V 2.1A at 25.2W, 15V 1.7A at 25.5W, 24V 1.05A at 25.2W, 27V 0.95A at 25.65W, 36V 0.7A at 25.2W, and 48V 0.53A at 25.44W. The main difference is the output-voltage and current combination, while all remain in the same compact EPS-25 family.
