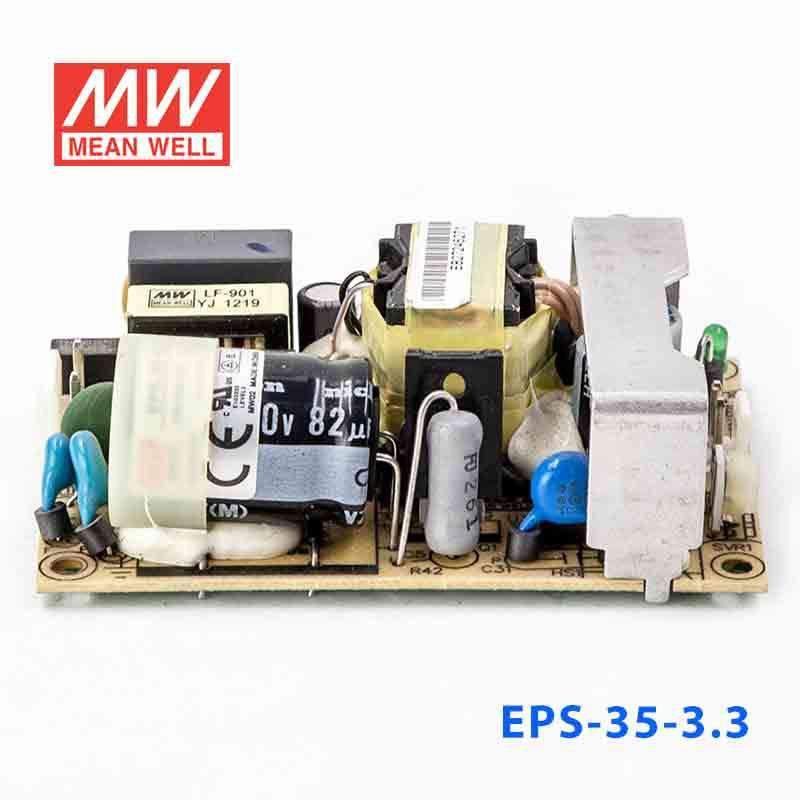

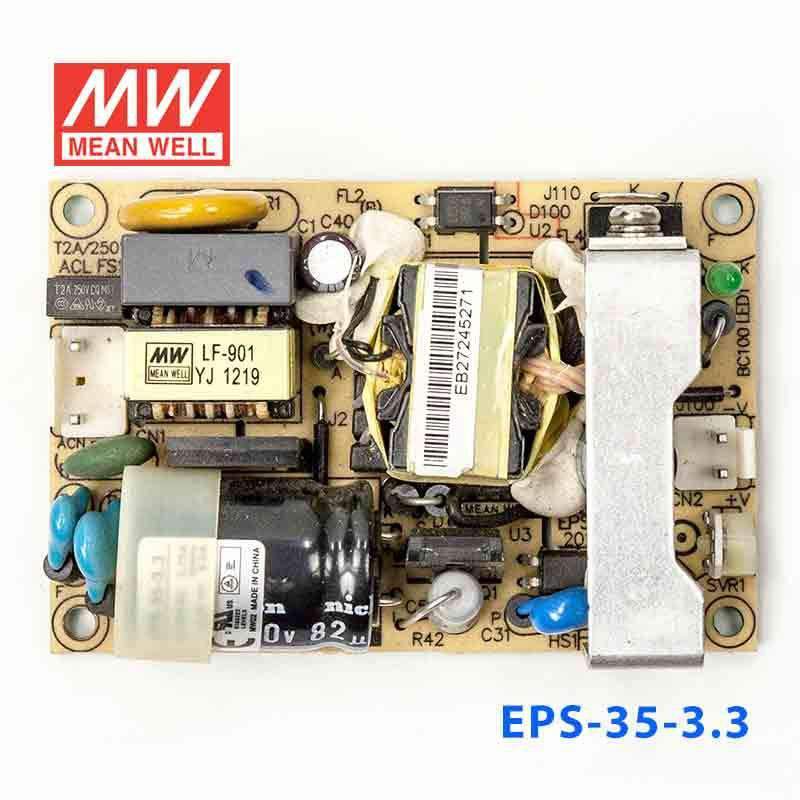

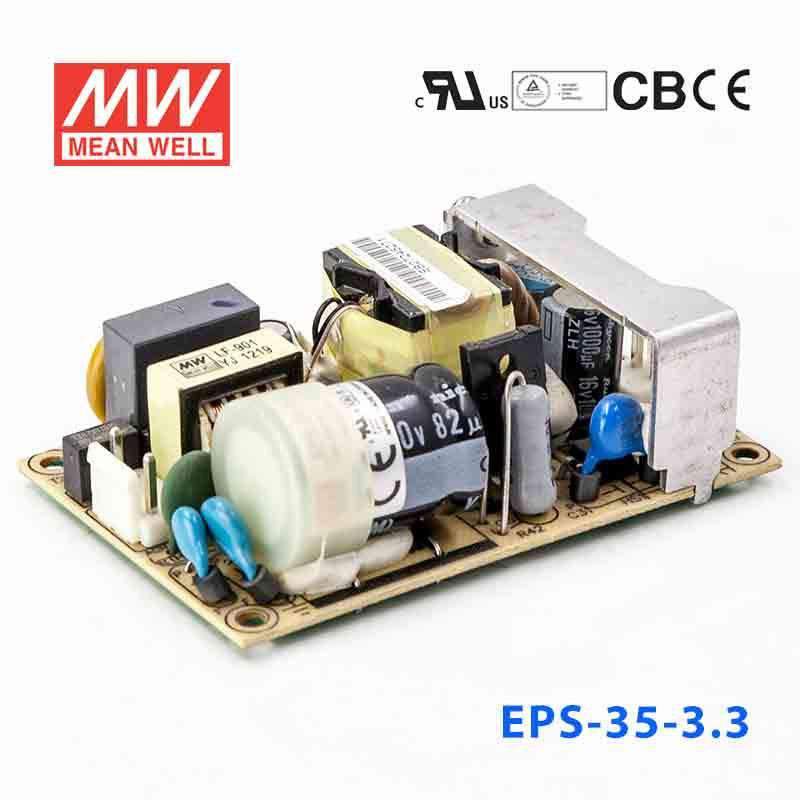

Mean Well EPS-35-3.3 Power Supply 20W 3.3V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating19.8 Watt
-
Output Voltage3.3 Volt
-
Rated Current6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-3.3 for 3.3V embedded controllers or logic boards?
Yes, it is a constant-voltage 3.3V supply rated for 19.8W and up to 6A, which suits embedded controllers, logic circuits, and processor-based boards that require a regulated 3.3V rail. The load still needs to stay within the 6A output current limit.
Is the EPS-35-3.3 a good fit for industrial I/O electronics that run on 3.3V DC?
It can be used for industrial or automation electronics that specifically require 3.3V DC and draw no more than 19.8W total. With an 85-264VAC input range, it works where the equipment needs a compact AC-to-3.3V supply inside the system enclosure.
Can this model power a small 3.3V communications or control subsystem?
Yes, if the subsystem is designed for 3.3V constant voltage and the total demand stays within 6A. That makes it appropriate for low-voltage digital subsystems, control logic, or embedded communication electronics that need more current than smaller 3.3V models provide.
What is the difference between the 3.3V EPS models?
The 3.3V options in this series are EPS-15-3.3 at 9.9W and 3A, EPS-25-3.3 at 16.5W and 5A, EPS-35-3.3 at 19.8W and 6A, EPS-45-3.3 and EPS-45-3.3-C at 26.4W and 8A, EPS-45S-3.3 at 26.4W and 8A, EPS-65-3.3 and EPS-65-3.3-C at 36.3W and 11A, and EPS-65S-3.3 at 33W and 10A. The selection difference is available wattage and output current at the same 3.3V output.
Can I use the EPS-35-3.3 in outdoor equipment or unsealed areas?
The operating temperature range is -30°C to +70°C, but no IP rating is listed in the provided specs. Based on that, the temperature range is defined, while outdoor or water-exposed suitability is not established by this data.
