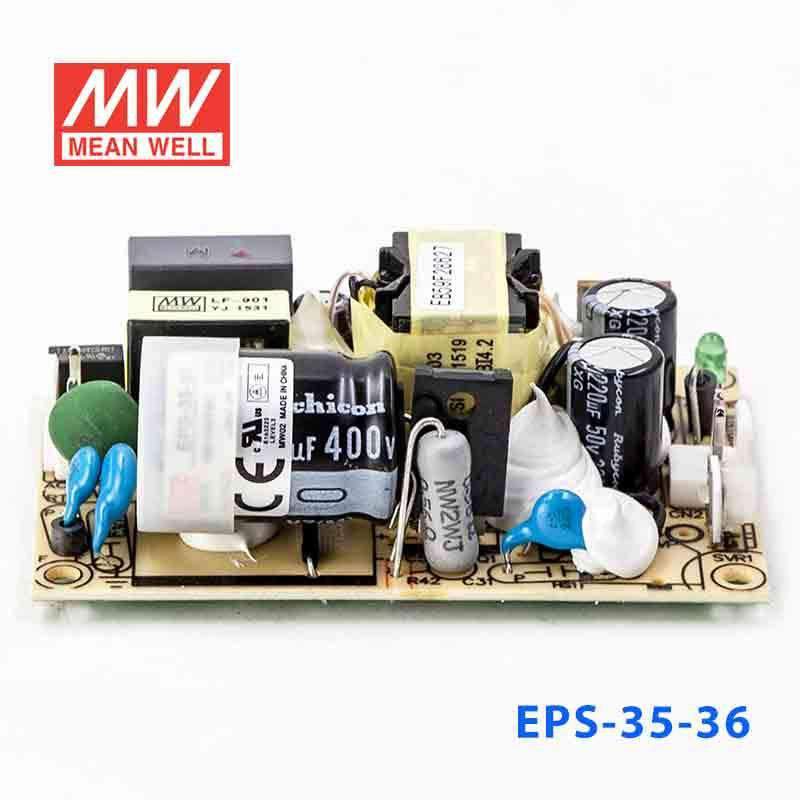

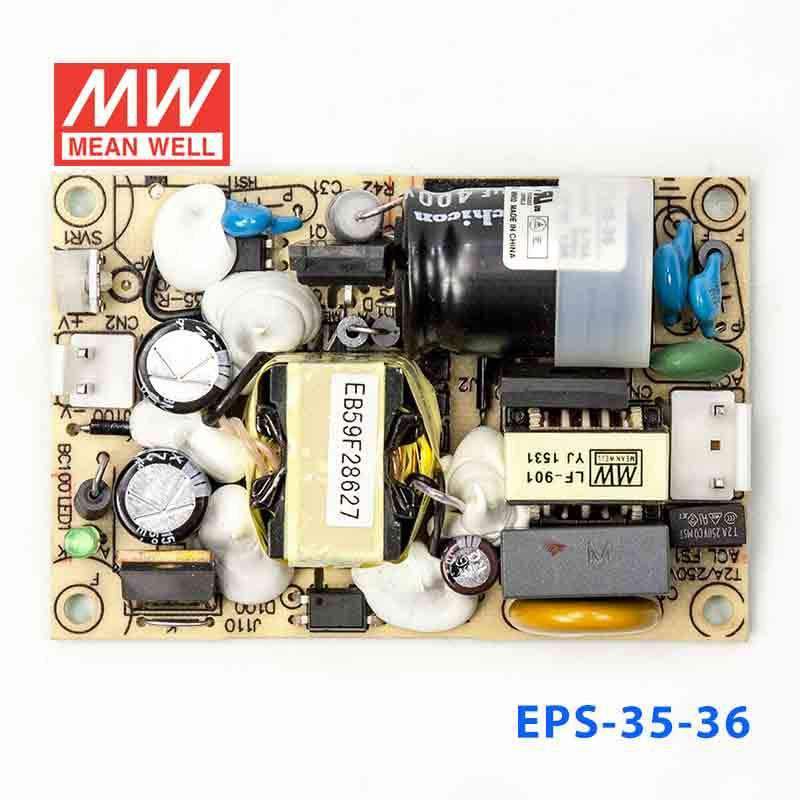

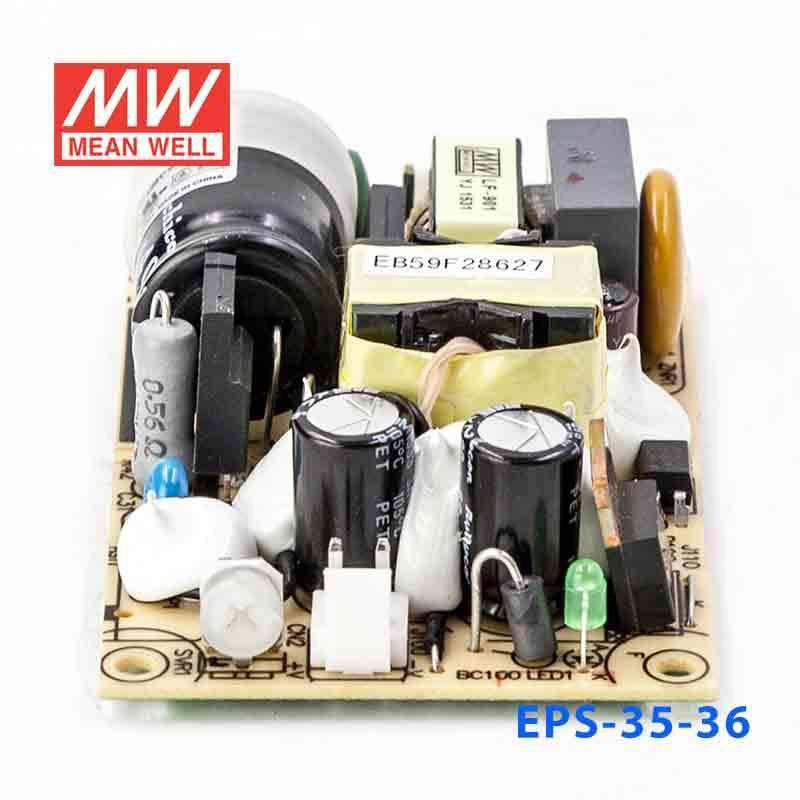

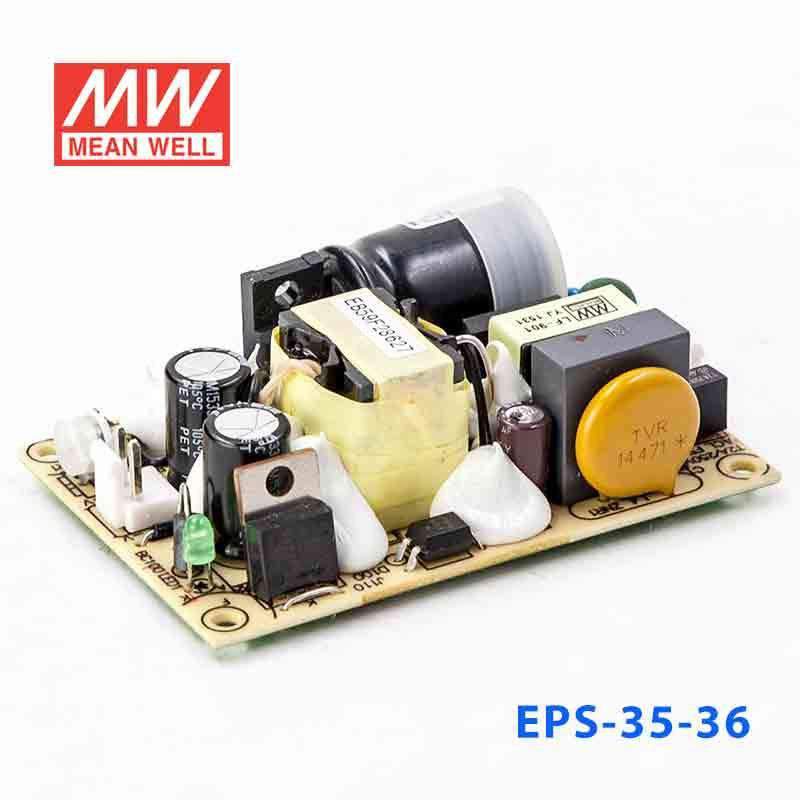

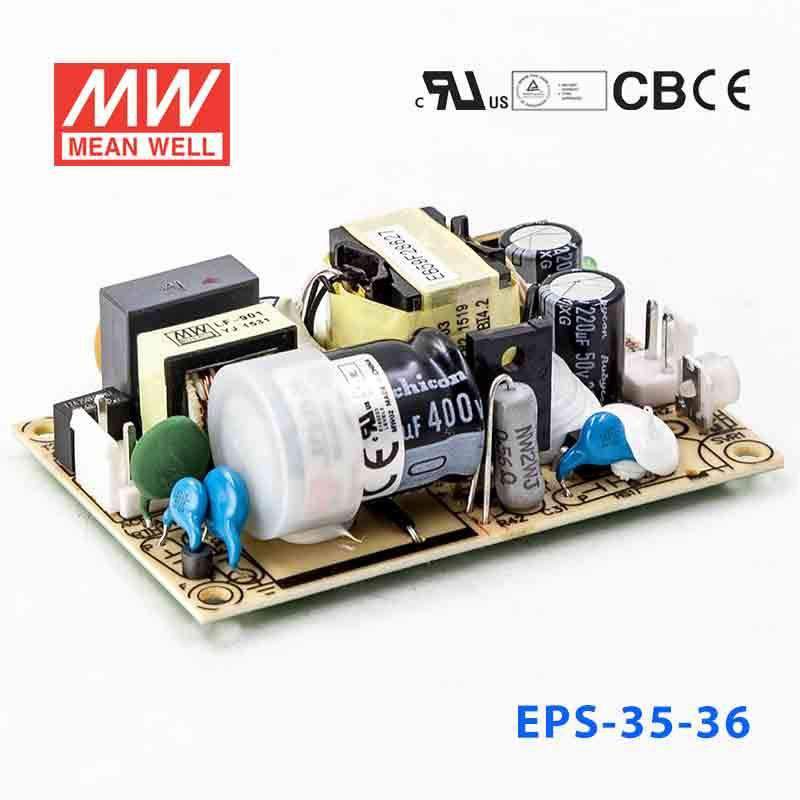

Mean Well EPS-35-36 Power Supply 36W 36V
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating36 Watt
-
Output Voltage36 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
Can I use the EPS-35-36 for a 36V automation or industrial control load?
Yes, if the equipment requires a constant 36V output and draws no more than 1A, since this model is rated for 36W at 36V. It fits low-power industrial, embedded, or automation loads that need 36V DC from an 85-264VAC input.
Is the EPS-35-36 suitable for a compact 36V internal power supply in equipment?
It is designed for compact internal use where a 36V rail is needed at up to 36W. The 76.2 × 50.8 × 24.0 mm form factor and 0.085 kg weight are useful when space is limited inside a machine, controller, or embedded assembly.
Can this model power a 36V panel device or low-current control module?
It can, provided the device is a 36V constant-voltage load and its current draw does not exceed 1A. That makes it a better fit for lower-current 36V electronics than for heavier 36V loads that need more than 36W.
How does EPS-35-36 compare with other 36V models in the EPS family?
For 36V outputs, EPS-15-36 is 15.12W at 0.42A, EPS-25-36 is 25.2W at 0.7A, EPS-35-36 is 36W at 1A, EPS-45-36 and EPS-45-36-C are 45W at 1.25A, and EPS-65-36 and EPS-65-36-C are 65.16W at 1.81A. The main difference is how much power and current each 36V model can deliver.
Is the EPS-35-36 rated for outdoor environments?
The product has an operating temperature range of -30°C to +70°C, but no IP rating is shown in the provided specs. That means the temperature capability is specified, while outdoor, rain, or dust-exposed suitability is not confirmed here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-35 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-35-12 Power Supply 36W 12V | 36W | 12V | 3A | Indoor | $14.18 | View |
