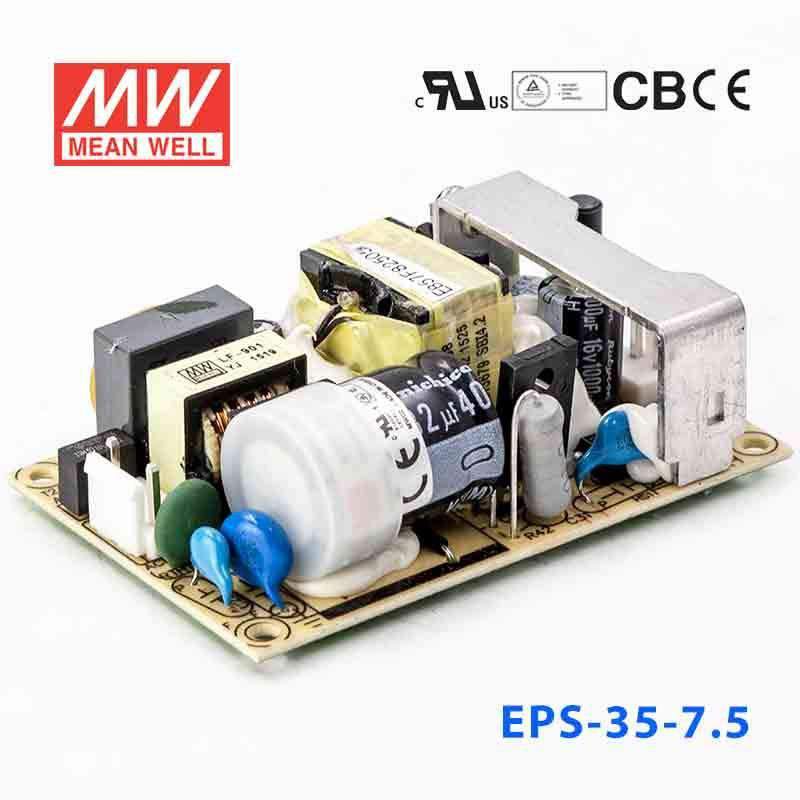

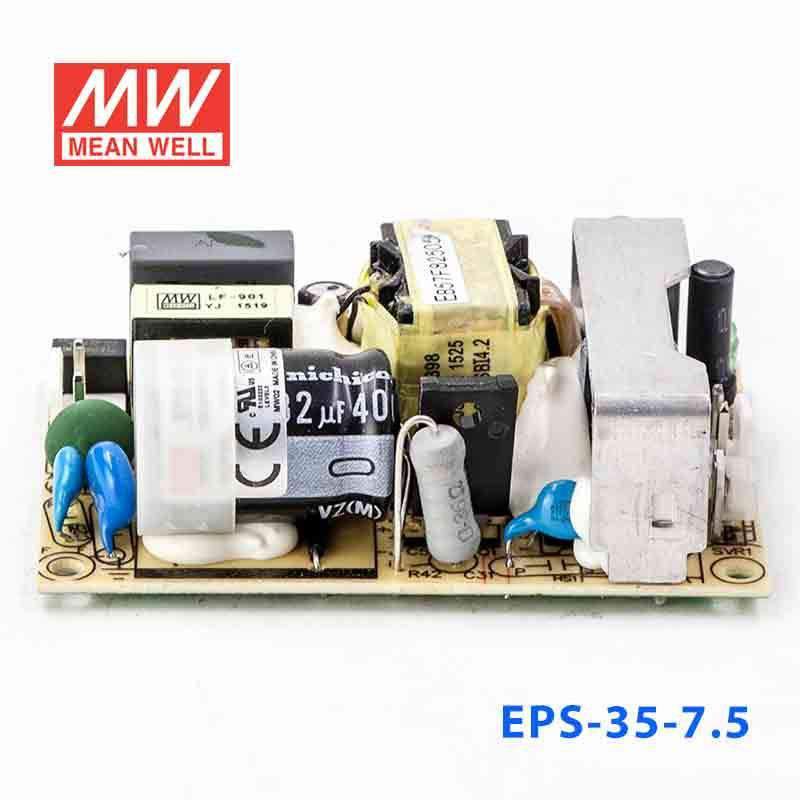

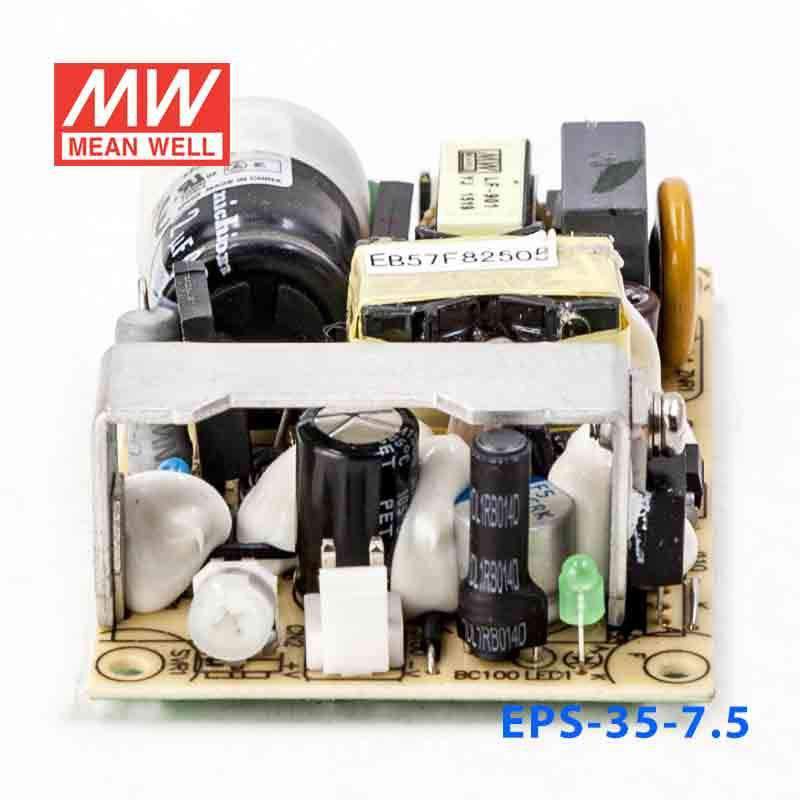

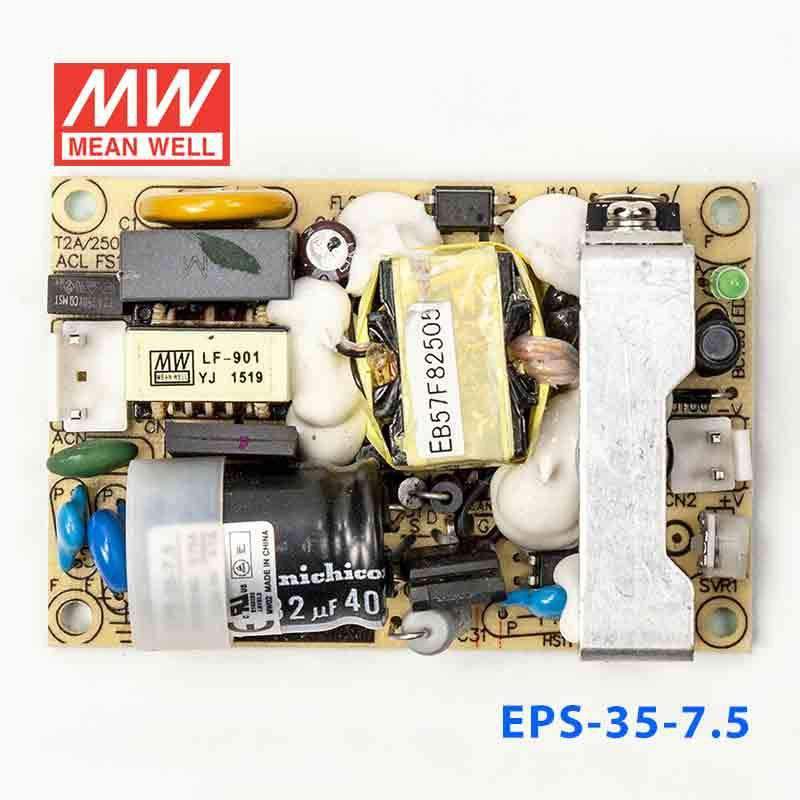

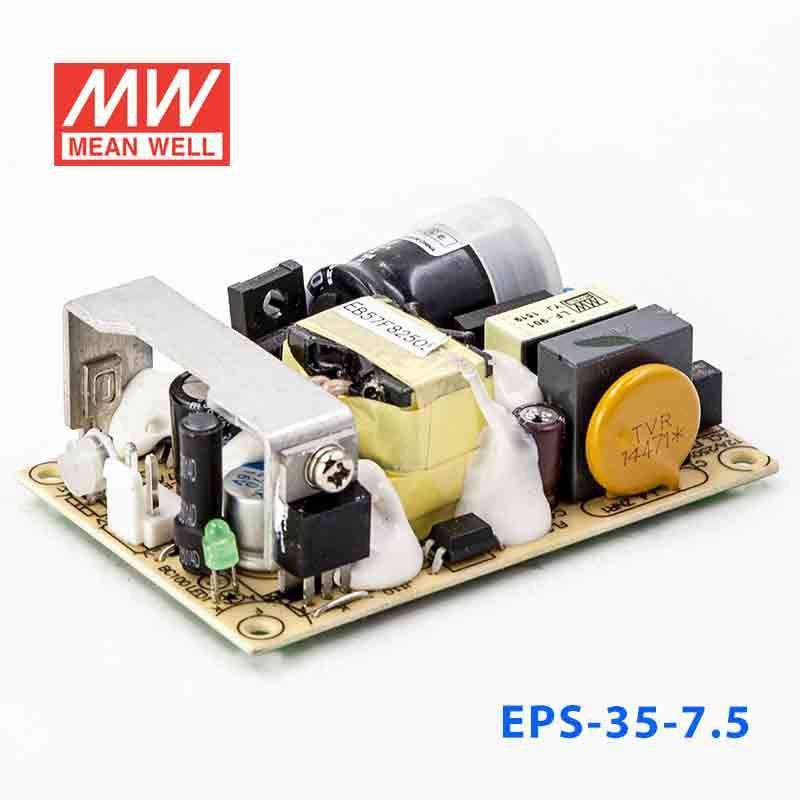

Mean Well EPS-35-7.5 Power Supply 35W 7.5V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~170% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~140% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+2P/3.96mm pitch, JST B3P/B2P-VH |
| Dimension (LxWxH) | 76.2x50.8x24 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating35.25 Watt
-
Output Voltage7.5 Volt
-
Rated Current4.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPS-35-7.5 for a 7.5V embedded controller or OEM board?
Yes, if the device is designed for constant-voltage 7.5V DC and stays within 4.7A and 35.25W. This makes it a fit for embedded or OEM electronics that specifically call for a 7.5V rail rather than 5V, 12V, or 24V.
Is the EPS-35-7.5 suitable for a 7.5V industrial instrument or test module?
It can be suitable for industrial instruments or bench modules that require a fixed 7.5V output and do not exceed 35.25W. The key match is a constant-voltage 7.5V load with current demand at or below 4.7A.
Can this model power several low-power 7.5V automation accessories in one enclosure?
Yes, if the combined 7.5V load remains at or below 4.7A and 35.25W. For grouped automation accessories, the important check is the total demand on the 7.5V rail.
Would the EPS-35-7.5 work for IT or communications equipment that needs a 7.5V rail?
It can work for IT or communications subassemblies when the equipment is specified for 7.5V DC and the total load stays within 35.25W. Its 85-264VAC input also supports use across a wide AC input range.
Is the EPS-35-7.5 suitable for outdoor or wide-temperature environments?
The published operating range is -30°C to +70°C, which supports a wide span of equipment-enclosure temperatures. No IP rating is listed in the provided specs, so those specs do not confirm exposed outdoor or wet-location suitability by themselves.
How does the EPS-35-7.5 compare with other 7.5V EPS models?
Among the listed 7.5V versions, EPS-15-7.5 is 15W at 2A, EPS-25-7.5 is 25.5W at 3.4A, EPS-35-7.5 is 35.25W at 4.7A, EPS-45-7.5 and EPS-45-7.5-C are 40.5W at 5.4A, EPS-45S-7.5 is 40.5W at 5.4A, EPS-65-7.5 and EPS-65-7.5-C are 60W at 8A, and EPS-65S-7.5 is 60W at 8A. This model sits above the 15W and 25.5W options and below the 40.5W and 60W versions.
