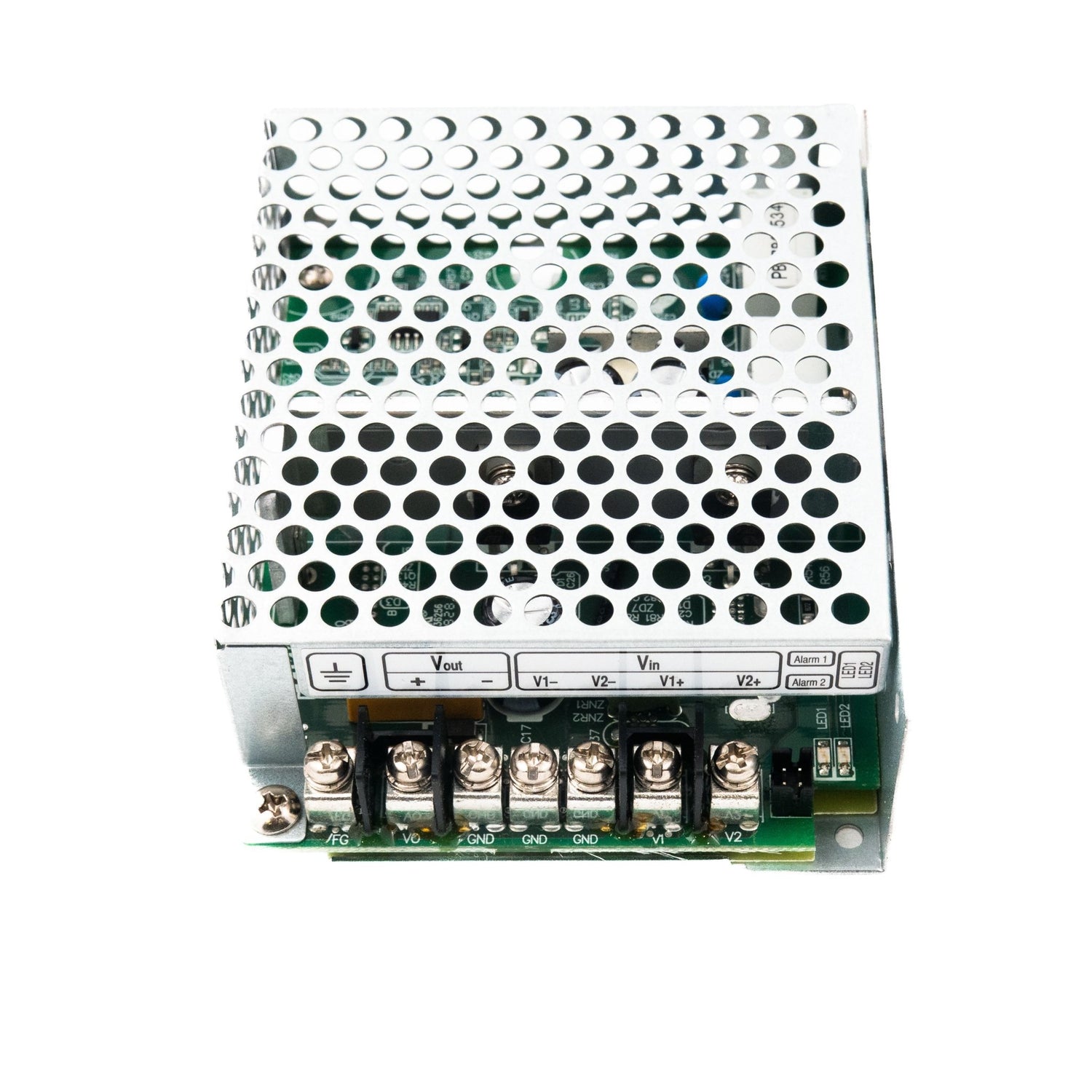

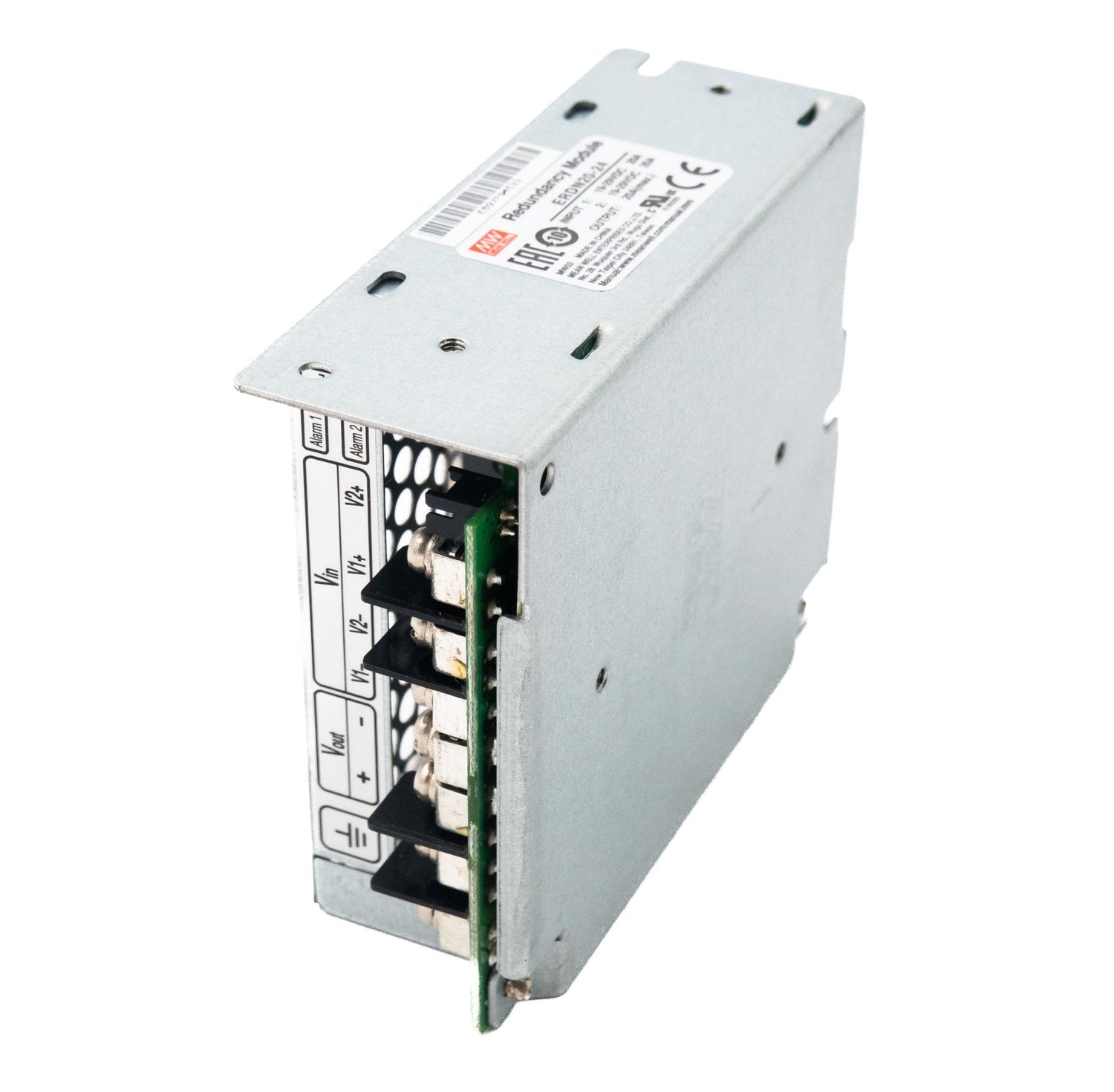

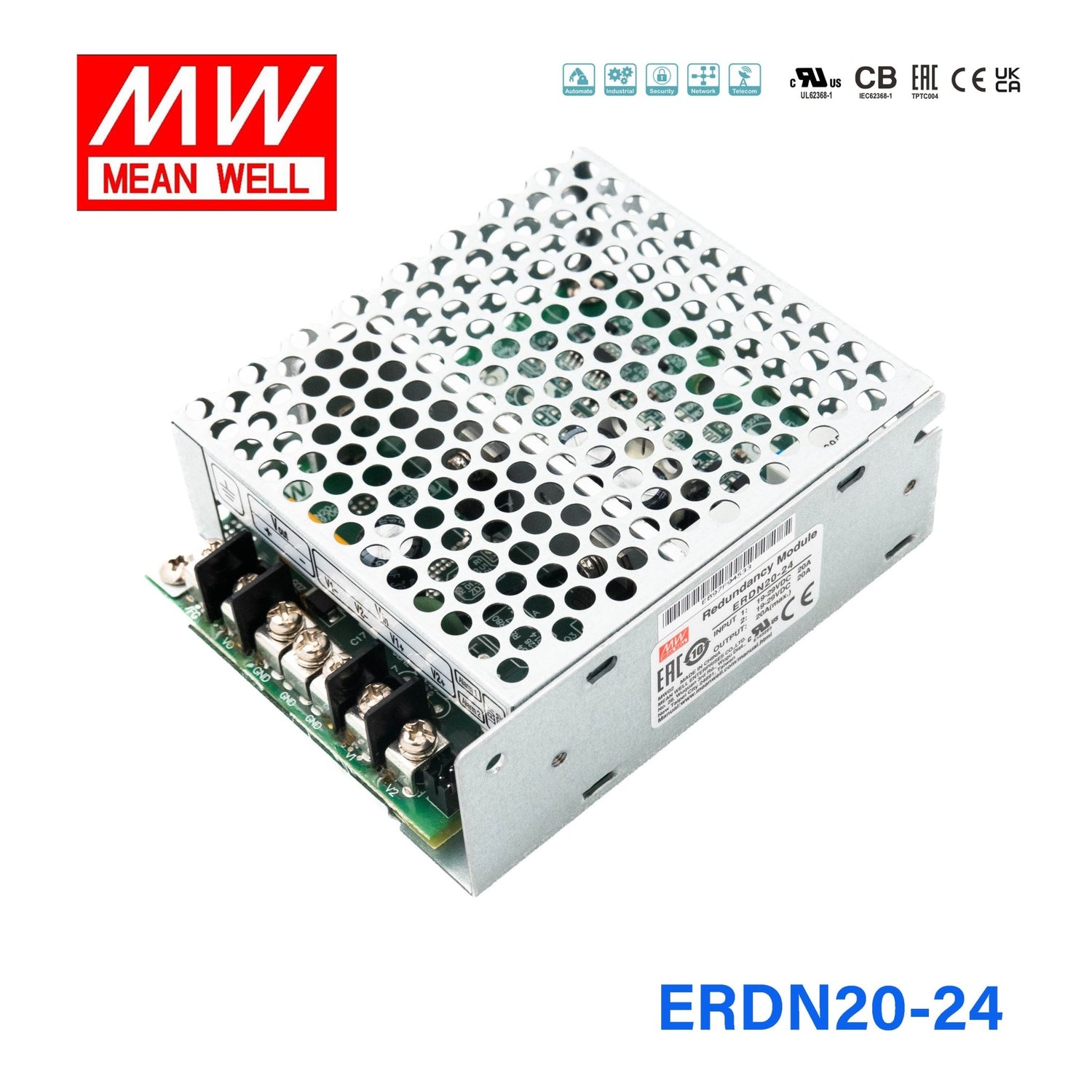

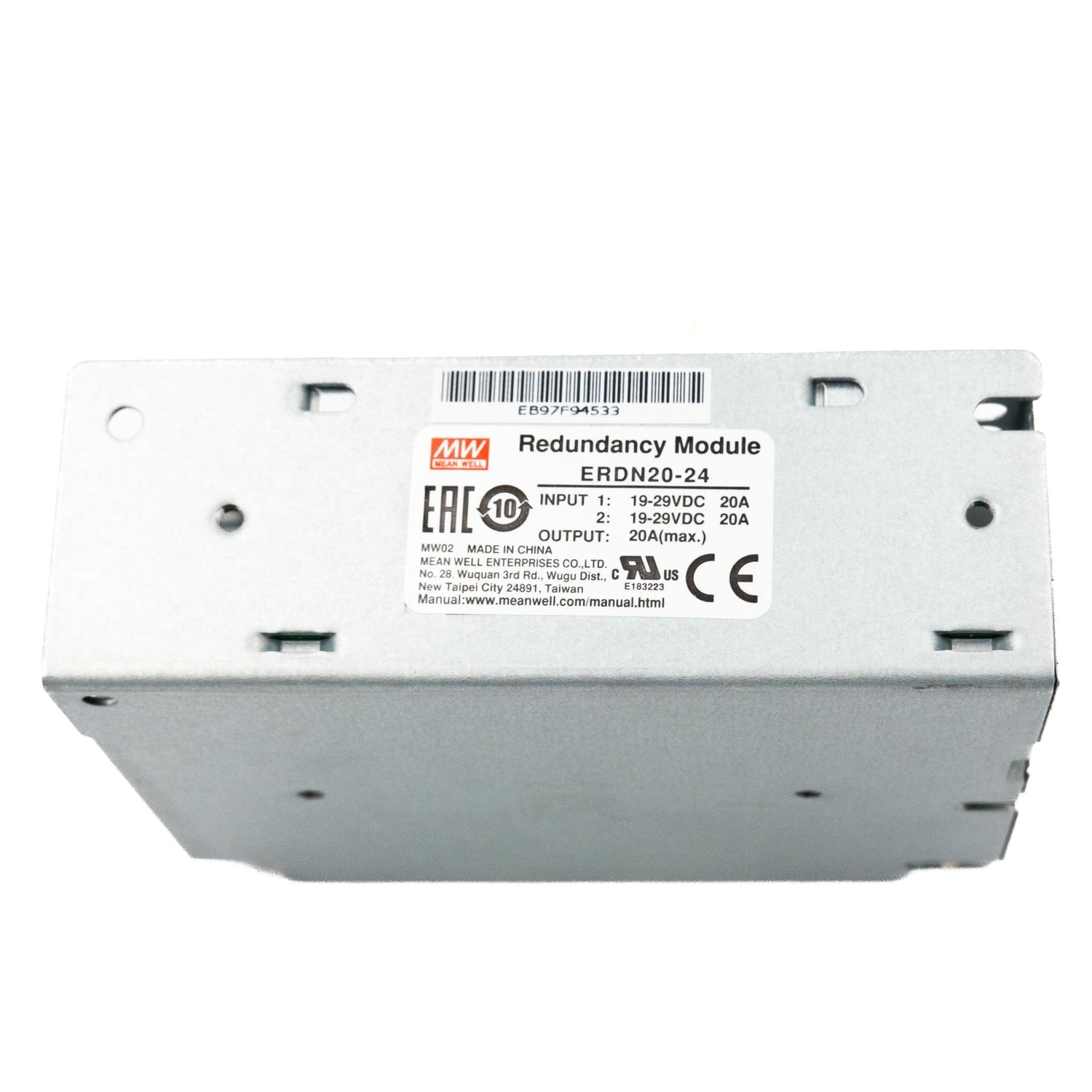

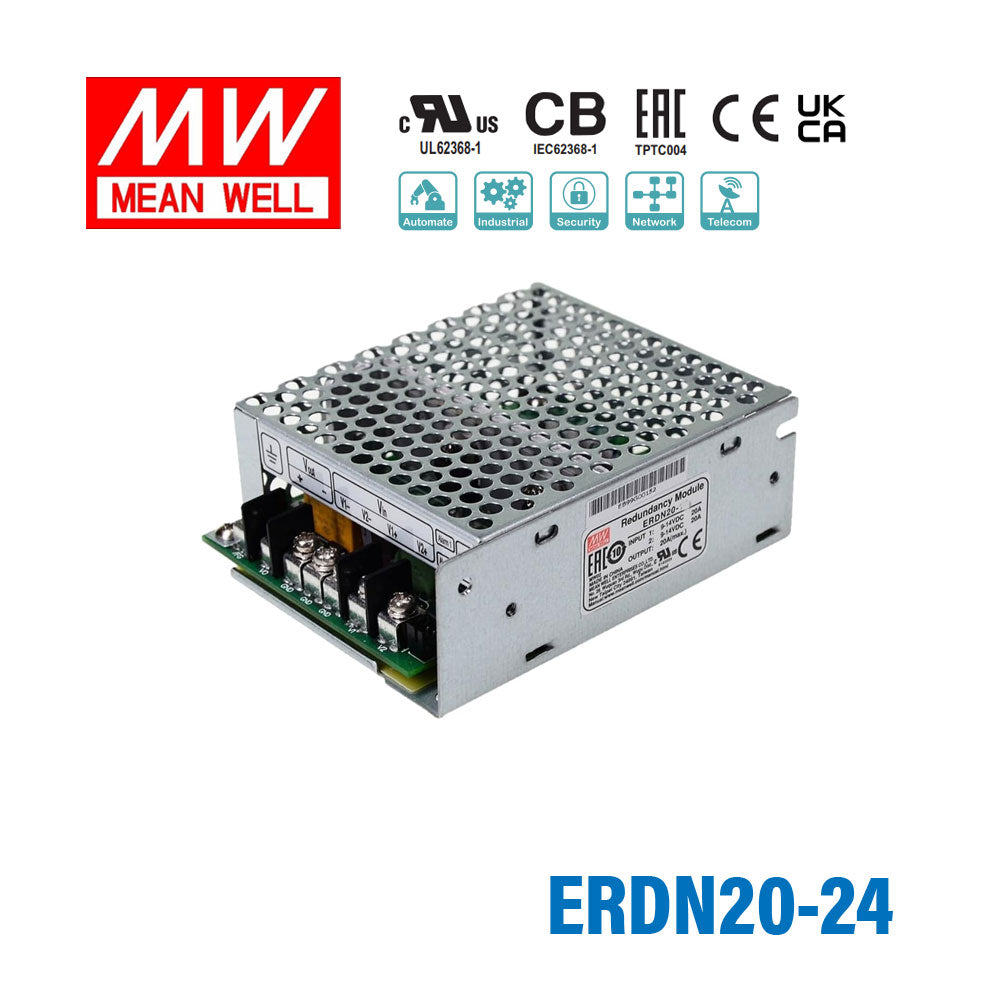

Mean Well ERDN20-24 Redundancy Module Power Supply 20A
redundancy module, support 1+1 and 1+N redundancy, relay contacts for monitoring power status
$27.27 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well ERDN20-24 Redundancy Module Power Supply 20A
$27.27 USD
Unit price /
Unavailable
Description
Description
Features
| Support 1+1 and N+1 redundancy system |
| 2 channels input and 1 output |
| Suitable for redundancy operation of 5V/12V/24V/48V system |
| Output current up to 20A |
| Cooling by free air convection |
| Built-in 2 channels DC Ok signal and alarm relay contact |
| 3 years warranty |
General Specification
| DC input voltage | 5-48V |
| Peak current | 0-30A per input; 5 Sec |
| DC voltage range | 5V: 4.5-6V; 12V: 9-14V; 24V: 19-29V; 48V: 36-60V |
| Overload protection | <30A, 5 Sec. No damage |
| Short circuit protection | <30A, 5 Sec. No damage |
| Case No | 932D |
| Withstand voltage | I/P-O/P - Chassis: 0.5KVac; I/P-O/P - Relay: 0.5KVac; Relay - Chassis: 0.5KVac; |
| Working temperature | -40~+80°C |
| DC OK signal | Relay contact |
| Safety standards | IEC62368-1, UL60950-1 |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,10 |
| Connection | Screw terminal |
| Dimension (LxWxH) | 82x99x36 |
| Packing | 45pcs / 10.3kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesERDN Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage19V~29V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length3.9 in
-
Width3.23 in
-
Height1.42 in
-
Weight0.46 lb
