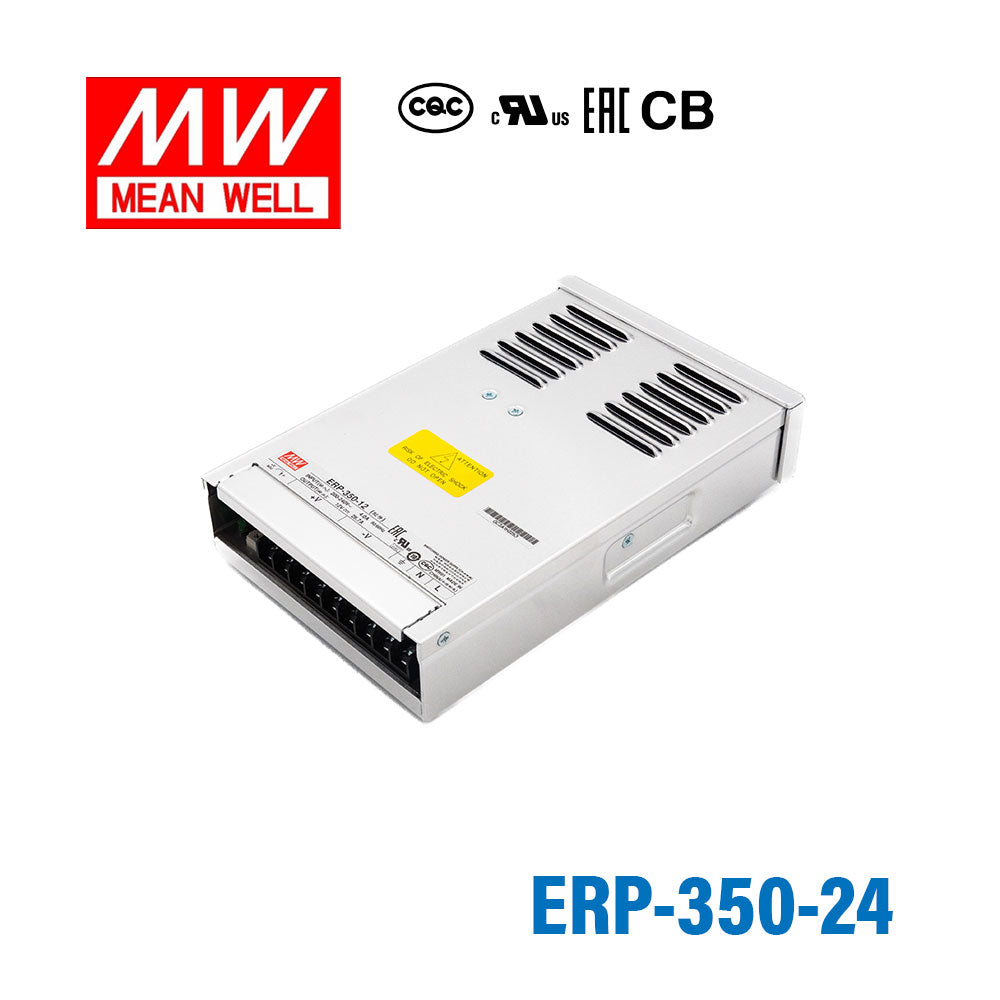

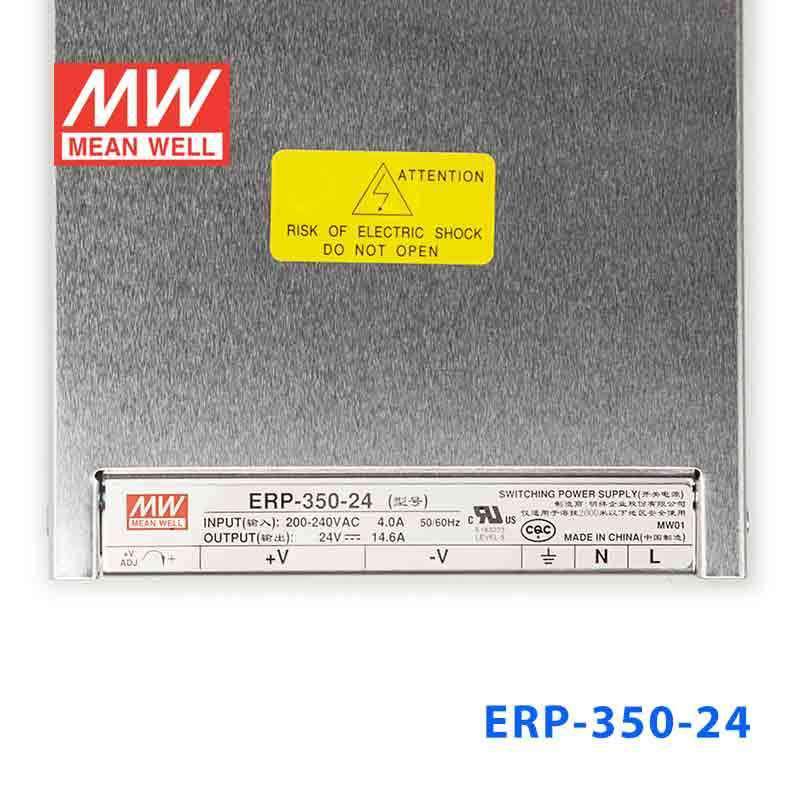

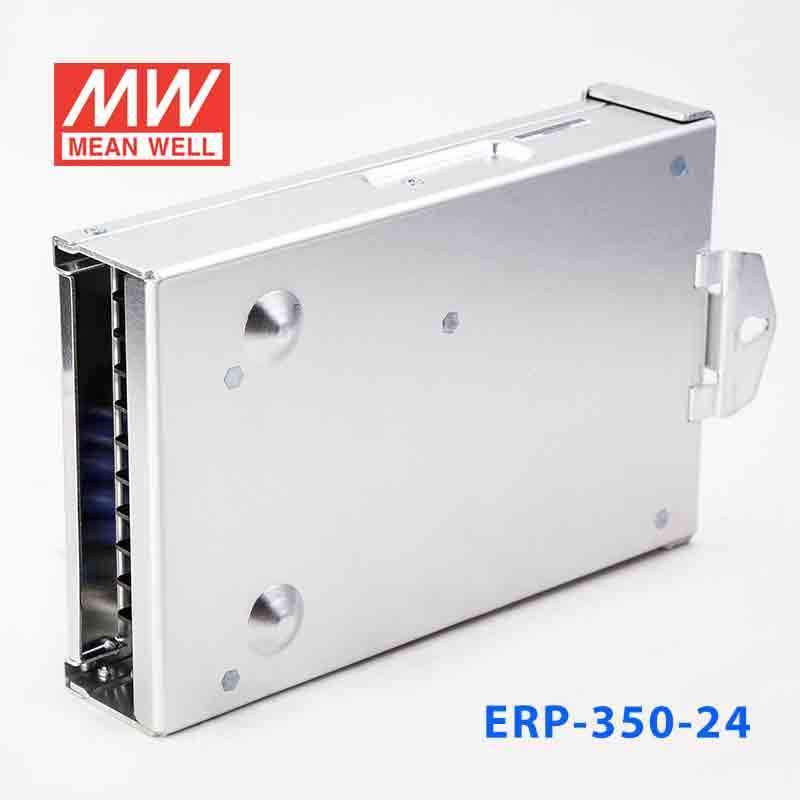

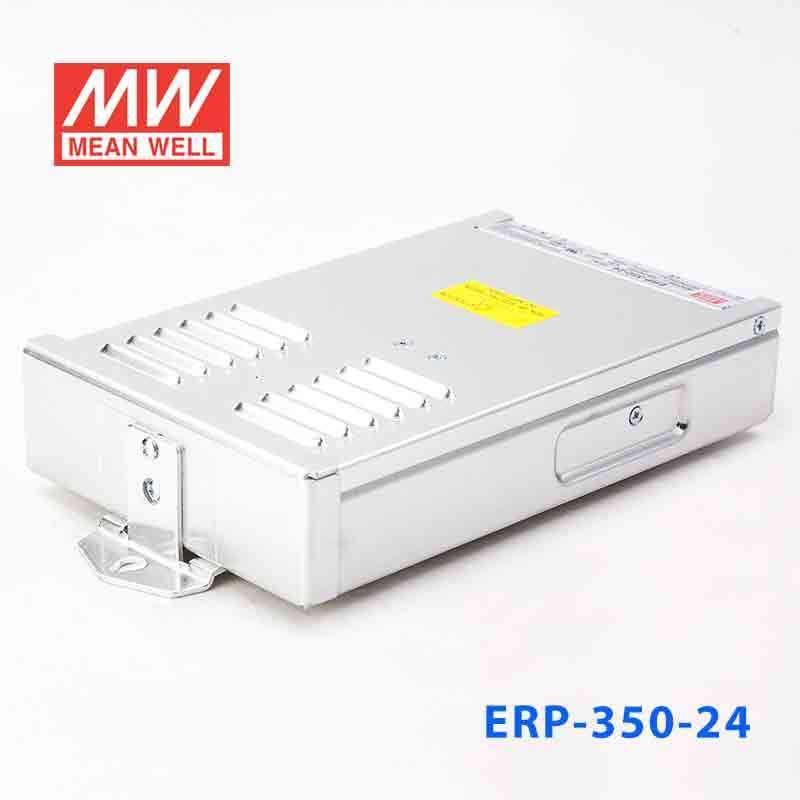

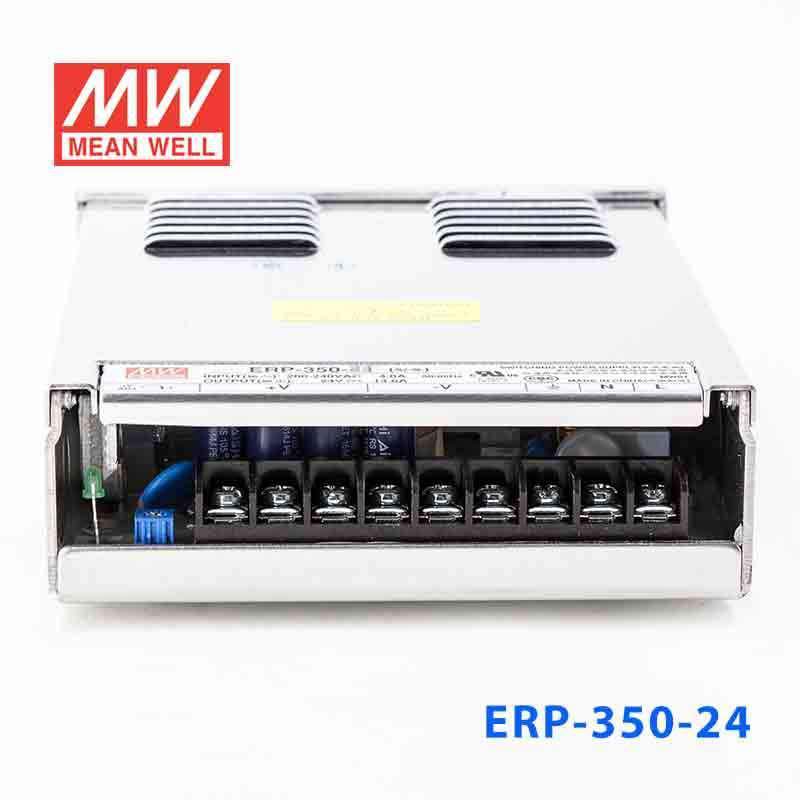

Mean Well ERP-350-24 Switching Power Supply 350W 24V 14.6A
Overview
ERP-350-24 is the 24V output model of this series: rated current 14.6A, rated power 350.4W, typical efficiency 89%.
ERP-350 series is a 350W single output enclosed type AC/DC power supply . It adopts an aluminum case and the interior is semi-potted, protecting the internal electronic components from rain splash and dust. With the complete protection functions, ERP-350 is suitable for the applications such as outdoor LED channel letters, commercial display , etc.
Features
- AC input 180~264VAC
- Withstand 300VAC surge input for 5 seconds
- Design against rain splash
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Cooling by free air convection
- LED indicator for power on
- Low cost,high reliability
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 14.6A
- CURRENT RANGE
- 0 ~ 14.6A
- RATED POWER
- 350.4W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1500ms, 200ms/230VAC
- HOLD UP TIME (Typ.)
- 20ms/230VAC
INPUT
- VOLTAGE RANGE
- 180 ~ 264VAC 254 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 89%
- AC CURRENT (Typ.)
- 4A/230VAC
- INRUSH CURRENT (Typ.)
- 90A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVER LOAD
- 130 ~ 180% rated output power 12-36V Hiccup mode, recovers automatically after fault condition is removed 48V Shut down and latch off o/p voltage, re-power on to recover
- OVER VOLTAGE
- 27.6 ~ 32.4V 12-36V Hiccup mode, recovers automatically after fault condition is removed 48V Shut down and latch off o/p voltage, re-power on to recover
- OVER TEMPERATURE
- 12-36V Shut down O/P voltage, recovers automatically after temperature goes down 48V Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +60℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL 62368-1,IEC 62368-1,GB 4943.1,EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
- EMC EMISSION
- Refer to EN55022 (CISPR22) class A, EAC TP TC 020
- EMC IMMUNITY
- Refer to EN61000-4-5;light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2396.7K hrs min. Telcordia SR-332 (Bellcore) 321Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 220.4*130*48mm (L*W*H)
- PACKING
- 0.9Kg; 9 pcs/11Kg/0.63CUFT
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Typical applications
- LED decoration/signage
- LED channel letters
- LED display
Downloads
FAQ
Can I use the ERP-350-24 for a 24V industrial automation or control application?
Yes, if the equipment requires 24V constant voltage and does not exceed 14.6A or 350W. That makes it suitable for many 24V industrial and automation loads powered from 180-264VAC input.
Is the ERP-350-24 suitable for 24V PLC-related devices, sensors, or cabinet electronics?
It can be used for 24V constant voltage cabinet electronics that fit within its 14.6A and 350W output limits. The unit is an AC-DC power supply with overload, over-voltage and over-temperature protection, which can be useful in industrial cabinets.
Can this power supply run 24V embedded or industrial computing hardware?
Yes, for 24V constant voltage hardware whose total draw stays within 350W and 14.6A. Its 180-264VAC input range matches standard AC-powered industrial equipment environments.
Is the ERP-350-24 a reasonable option for 24V systems that need a 350W supply?
Yes. This model is rated for 24V output at up to 14.6A, with a total power rating of 350.4W. Its size is 220.4 × 130 × 48 mm.
Can the ERP-350-24 be used in outdoor or semi-exposed locations?
The datasheet states that the ERP-350 is designed for outdoor application but should be installed in a sheltered place, and its operating temperature range is -30°C to +60°C with output load derating. However, no IP rating is listed, so the specs do not define a formal ingress-protection level.
