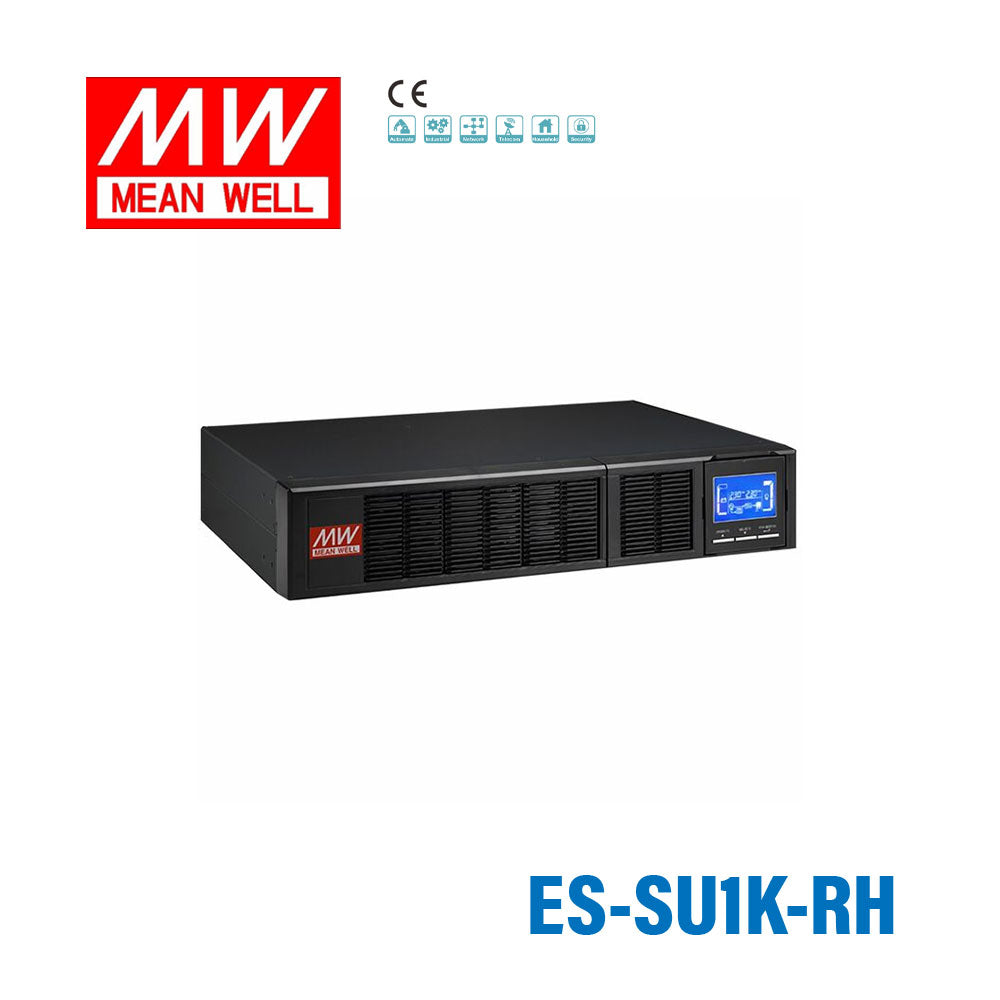

Mean Well ES-SU1K-RH Uninterruptible Online UPS
Description
Description
ES-SU1K
Features:
- Supporting connection to fuel generators
- Ultra-wide input voltage range: 110V to 300Vac
- Input power factor ≥ 0.99$
- Input current harmonic distortion ≤ 5%
- Output power factor of 1
- 50Hz/60Hz frequency conversion mode
- Emergency power-off function (EPO)
- USB/RS-232 communication interfaces
- LCD display panel
- Intelligent charging mode, adjustable charging current
- 3-year warranty
General Specification:
Input Voltage
110300Vac(Based on load at 50%); 160300Vac(Based on load at 100%)
Power Factor
≥0.99@nominal voltage(100%load)
THDi
≤5%@100% resistive load
Low-Voltage Protection Point
21V
High-Voltage Protection Point
30V
Charing Voltage
27.4V
Charing Current (CC)
8A(1/2/4/6/8A adjustable through LCD)
Power
1KVA/1KW
Output Voltage
200/208/220/230/240Vac
Harmonic Distortion
≤2%THD(Linear Load) ≤5%THD(Non-linear Load)
Safety Standard
EN IEC 62040-1:2019/A11:2021,YD/T1095-2018
Dimension (LxWxH)
310*438*88mm
Specifications
Specifications
-
BrandMean Well
-
Standards MetCE,EAC
-
Length12.2 in
-
Width17.24 in
-
Height3.46 in
-
Weight11.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of UPS is the Mean Well ES-SU1K-RH?
The ES-SU1K-RH is an online uninterruptible power supply rated at 1KVA / 1KW. It is designed for applications that need stable AC output and includes features such as frequency conversion mode, emergency power-off, and LCD monitoring.
What input voltage range does the ES-SU1K-RH support?
This model supports an ultra-wide AC input range of 110V to 300Vac at 50% load, and 160V to 300Vac at 100% load. That wide range can help the UPS handle varying mains conditions more effectively than narrower-input models.
Can the ES-SU1K-RH work with fuel generators?
Yes. One of the listed features for the ES-SU1K-RH is support for connection to fuel generators. That makes it a suitable option for sites where backup generator operation is part of the power continuity plan.
What output voltage options are available on the ES-SU1K-RH?
The ES-SU1K-RH supports selectable output voltages of 200, 208, 220, 230, and 240Vac. It also offers 50Hz/60Hz frequency conversion mode, which can be useful where equipment or site standards require a specific output frequency.
What monitoring and communication features does this UPS include?
This model includes an LCD display panel for local status visibility. It also provides USB and RS-232 communication interfaces, which can support monitoring and integration with compatible supervisory systems.
What are the power quality characteristics of the ES-SU1K-RH?
The ES-SU1K-RH has an input power factor of at least 0.99 at nominal voltage and full load, with input current harmonic distortion of 5% or less at 100% resistive load. Its output power factor is 1, and output harmonic distortion is specified as 2% THD or less for linear loads and 5% THD or less for non-linear loads.
What operating environment is specified for the ES-SU1K-RH?
The specified operating temperature range for this UPS is 0°C to 40°C. For physical planning, the unit measures 310 x 438 x 88mm and weighs 5.2kg.
What warranty is provided with the Mean Well ES-SU1K-RH?
The ES-SU1K-RH includes a 3-year warranty. That warranty period can be a useful consideration for buyers evaluating lifecycle support and long-term ownership cost.
