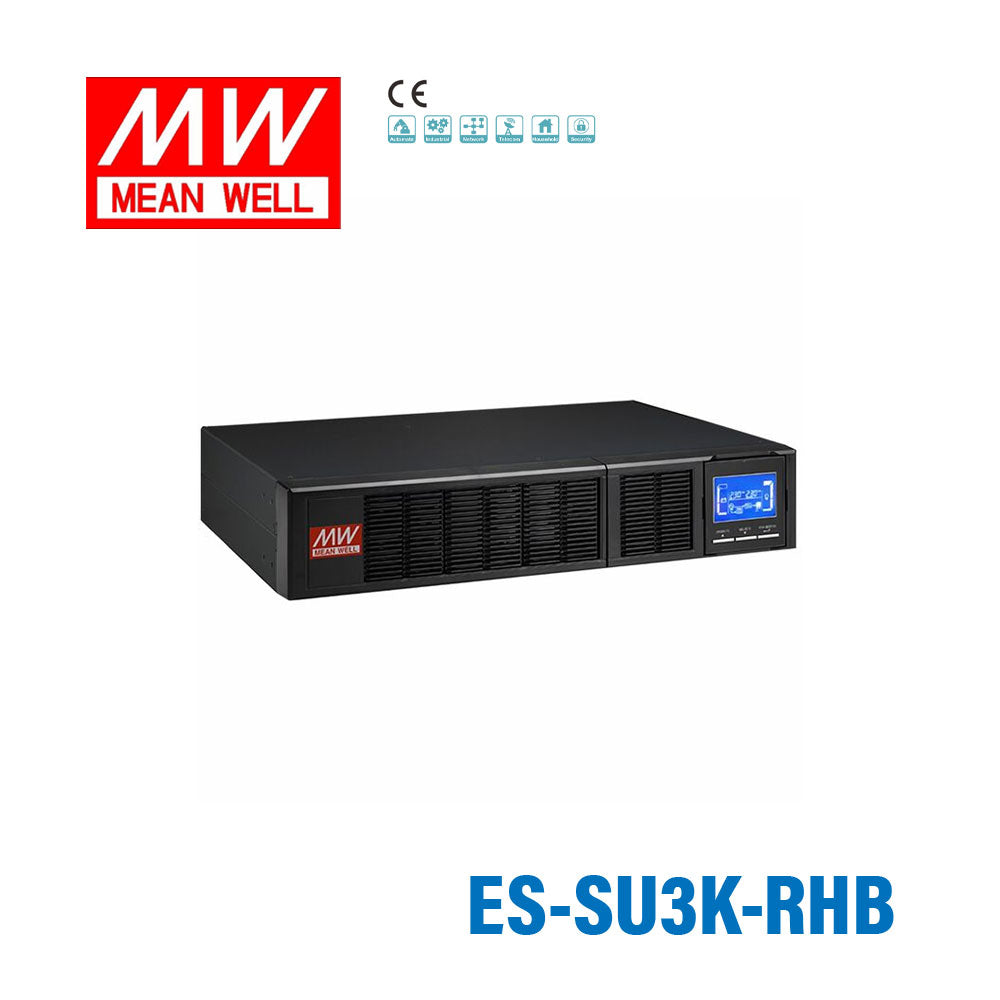

Mean Well ES-SU3K-RHB Uninterruptible Online UPS with Buit-in Batte...
Overview
ES-SU3K-RHB is the 200/208/220/230/240Vac output model of this series: typical efficiency 97%. Type Blank: No Battery.
ES-SU3K is a 3KVA online UPS power supply, providing rack type and tower type two appearance structures, using advanced digital control technology, combined with high integrated circuits and optimized design, enhance anti-interference ability, and ensure stable performance. The product has a full load efficiency of up to 94%, an input power factor of over 0.99, and a current harmonic of less than or equal to 5%, which can effectively prevent additional energy loss and reduce grid pollution. Its ultra-wide voltage input range is compatible with unstable power grids and fuel generators, which can easily cope with harsh power environments, reduce the need for frequent switching to battery power, and accurately match the needs of highly sensitive loads such as servers and medical equipment. In addition, the product has built-in EPO emergency power-off function and USB/RS-232 dual communication interfaces, which further strengthens the system security and remote control capabilities， It provides efficient, stable and flexible power protection solutions for key scenarios such as data centers, intelligent manufacturing, and communication base stations.
Features
- Supporting connection to fuel generators
- Ultra-wide input voltage range: 110V to 300Vac
- Input power factor ≥ 0.99
- Input current harmonic distortion ≤ 5%
- Output power factor of 1
- 50Hz/60Hz frequency conversion mode
- Emergency power-off function (EPO)
- USB/RS-232 communication interfaces
- LCD display panel
- Intelligent charging mode, adjustable charging current
- 3-year warranty
Specifications
INPUT
- Nominal Voltage
- 110~300Vac(Based on load at 50%); 160~300Vac(Based on load at 100%)
- Frequency Range
- 40~70Hz
- Power Factor
- ≥0.99@nominal voltage(100%load)
- THDi
- ≤5%@100% resistive load
Battery
- Connection Type
- built-in(12V/9AH*6)
- Charging Voltage (FV)
- 72V
- Low-Voltage Protection Point
- 67.7V
- High-Voltage Protection Point
- 90V
- Charing Current (CC)
- 8A(1/2/4/6/8A adjustable through LCD)
OUTPUT
- Power
- 3KVA/3KW
- Output VoltageNote 1
- 200/208/220/230/240Vac
- AC Voltage Regulation
- ±1%
- Frequency AC Mode
- 47~53Hz/57~63Hz
- Frequency Battery Mode
- 50/60±0.1Hz
- Waveform Battery Mode
- Pure Sinewave
- Harmonic Distortion
- ≤2%THD(Linear Load); ≤5%THD(Non-linear Load)
- Transfer Time AC to Battery
- 0
- Transfer Time Online to Bypass
- 4ms(Typical)
- Transfer Time ECO to Battery
- 8ms(Typical),10ms(max)
- Efficiency ECO Mode@full charged battery
- 97%
- Efficiency AC Mode @full charged battery
- 94%
- Efficiency Battery Mode
- 91%
SAFETY & EMC
- SAFETY STANDARDS
- EN IEC 62040-1:2019/A11:2021,YD/T1095-2018
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission EN IEC 62040-2:2018 C2 Radiated emission EN IEC 62040-2:2018 C2 Harmonic current EN IEC 61000-3-12:2011 Class A Voltage flicker EN IEC 61000-3-11:2019 Clause 5 - EMC IMMUNITY
-
Parameter Standard Test Level ESD EN 61000-4-2:2008 Level 3, 4KV air; Level 2: 4KV contact RS EN 61000-4-3:2006 Level 3 EFT EN 61000-4-4:2012 Level 4,1KV Surge EN 61000-4-5:2014 Level 4,1KV/Line-Line 2KV/Line-Earth Conducted EN 61000-4-6:2013 Level 3 Magnetic Field EN 61000-4-8:2009 Level 4 Voltage Dips and Interruptions EN IEC 61000-4-11:2020 100% residual voltage for 0.5cycle; 100% residual voltage for 1cycle; 100% residual voltage for 250cycle; 30% residual voltage for 25cycle
OTHER
- Communication interface
- RS232/USB
- Phase
- single phase with groud
- Display
- LCD
- Operating temperature
- 0~40℃
- Humidity
- 20-90% relative humidity(non-condensing)
- ElevationNote 2
- 1000m
- Struture
- Rack
- Weight
- 26.7kg
- Size
- 630*438*88mm
Certifications & ratings
- Marked features
- Industrial, Network, Security
MODEL ENCODING
- B
- Built-in Battery
- Blank (this model)
- No Battery
- TH
- Exterior structure
- RH
- Exterior structure
Test conditions and notes2
- 1. Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC
- 2. if the UPS is installed or used in a place where the altitude is above than 1000m. the outout power must be derated one percent per 100m.
Technical drawings
Typical applications
- Data center
- Financial institution
- Smart Buildings
- Industrial automation
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
What is the power rating of the Mean Well ES-SU3K-RHB?
The ES-SU3K-RHB is rated for 3KVA / 3KW output. It also has an output power factor of 1, which means its kVA and kW ratings are aligned for full real-power delivery.
What input voltage range does the ES-SU3K-RHB support?
This model supports an ultra-wide AC input voltage range of 110V to 300Vac at 50% load, and 160V to 300Vac at 100% load. That wide range can help it handle unstable mains conditions more effectively than narrower-input UPS models.
Is the ES-SU3K-RHB suitable for business-critical equipment that needs clean power?
Yes, this online UPS is designed for applications where power quality matters. It specifies input power factor of at least 0.99, input current harmonic distortion of 5% or less, and output harmonic distortion as low as 2% THD for linear loads.
Can the Mean Well ES-SU3K-RHB work with generator-backed power systems?
Yes, the ES-SU3K-RHB supports connection to fuel generators. That makes it a practical option for sites that use generator support during outages or in locations with less stable utility power.
Does this UPS support multiple output voltage and frequency options?
Yes, the ES-SU3K-RHB supports output voltage selections of 200, 208, 220, 230, and 240Vac. It also includes a 50Hz/60Hz frequency conversion mode, which can help match equipment requirements across different operating environments.
What operating environment is this model designed for?
The specified operating temperature range is 0°C to 40°C. Buyers should make sure the installation environment stays within that range for normal operation and expected performance.
What monitoring and management features are included on the ES-SU3K-RHB?
This model includes an LCD display panel along with USB and RS-232 communication interfaces. It also provides intelligent charging with adjustable charging current, with settings up to 8A available through the LCD.
What are the physical size, weight, and warranty for the ES-SU3K-RHB?
The ES-SU3K-RHB measures 630 x 438 x 88 mm and weighs 26.7 kg. Mean Well lists this model with a 3-year warranty.
