Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

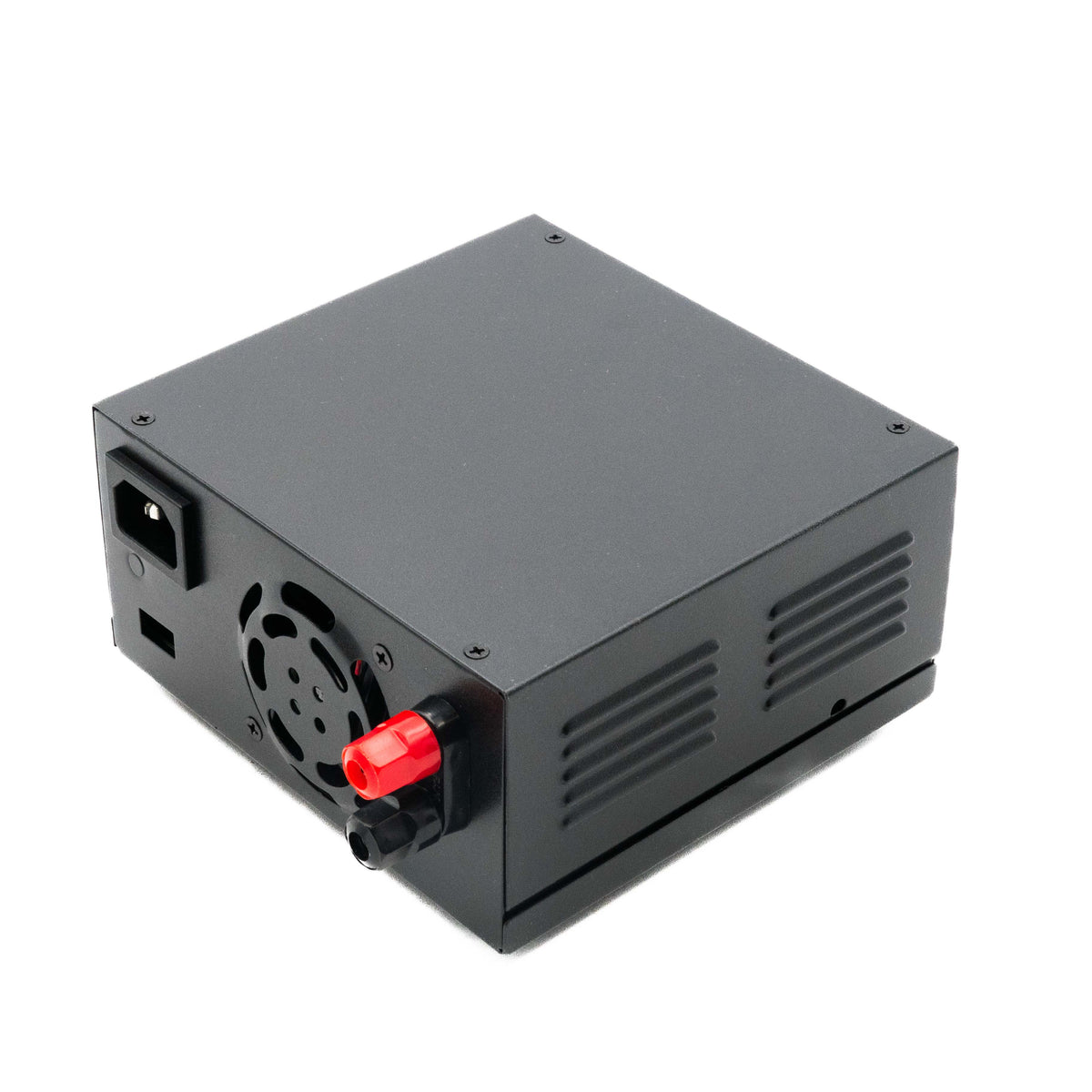

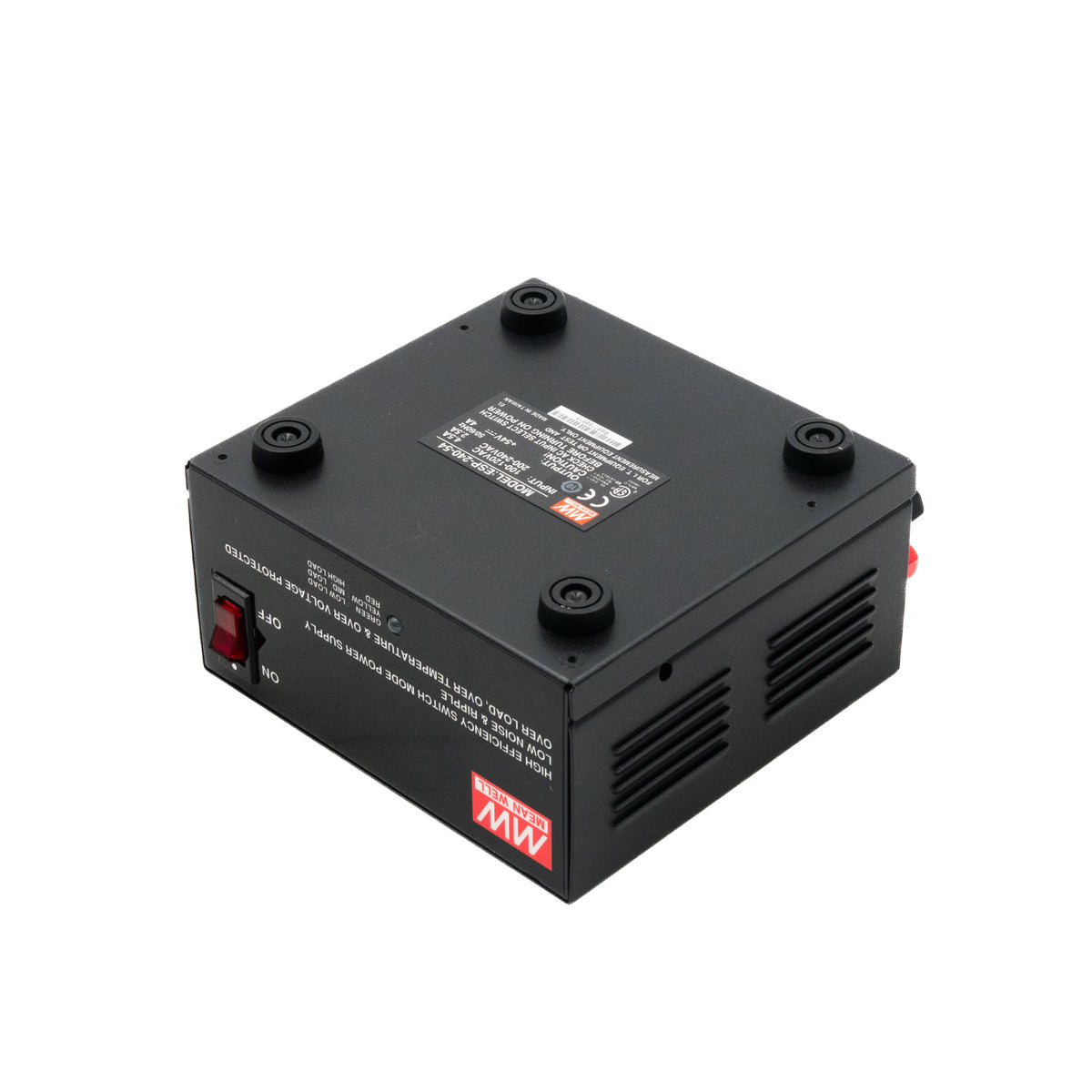

Mean Well ESP-240-54 Desktop Power Supply or Charger

$45.88 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over Temperature
Battery under/Over coltage and polarity protections(ESC only)
Forced air cooling by built-in DC fan(240W only)
Fixed switching frequency at 25KHz
3 color LED loading indicator
2 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 2.0%
Overload protection Range 105 ~ 135% rated output power
Overload protection Type Fold back current limiting, recovers automatically after fault condition is removed
Over-voltage protection Constant voltage limiting, recovers automatically after fault condition is removed
Withstand voltage I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Working temperature -10 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards CSA1010.1(UL3101-1,IEC1010-1,EN61010-1) approved
Dimension (LxWxH) (mm) 150*140*86mm (L*W*H)
Packing 1.5Kg; 8pcs/13Kg/1.1CUFT(ESC-240)

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well ESP Series
  • Power Rating
    216 Watt
  • Output Voltage
    13.5 Volt
  • Rated Current
    16 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    3
  • Standards Met
    CB,CE,EN,UL
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    5.91 in
  • Width
    5.51 in
  • Height
    3.39 in
  • Weight
    3.04 lb

File Downloads

::specification::
