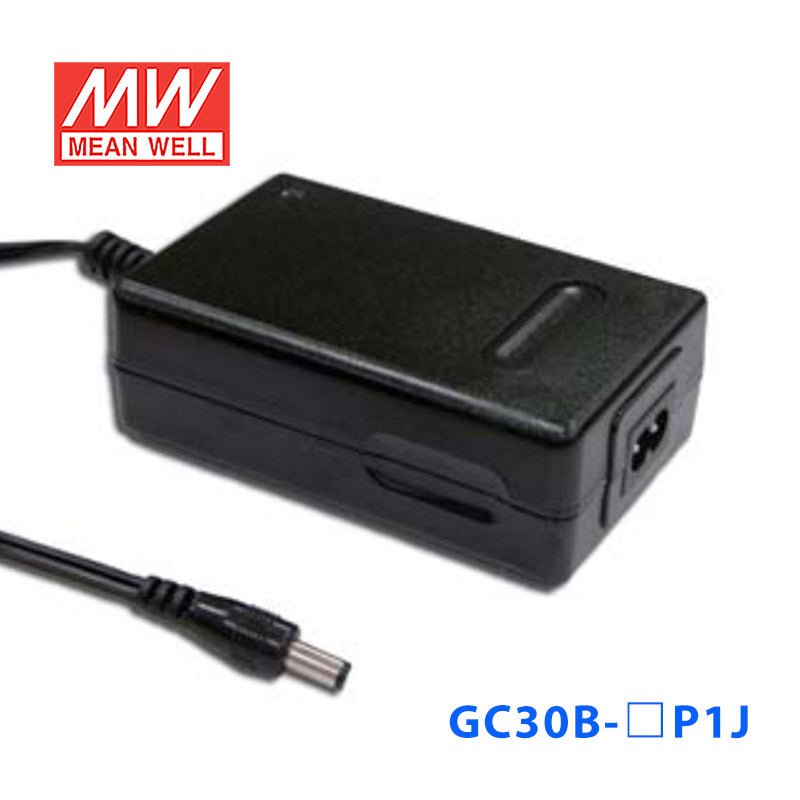

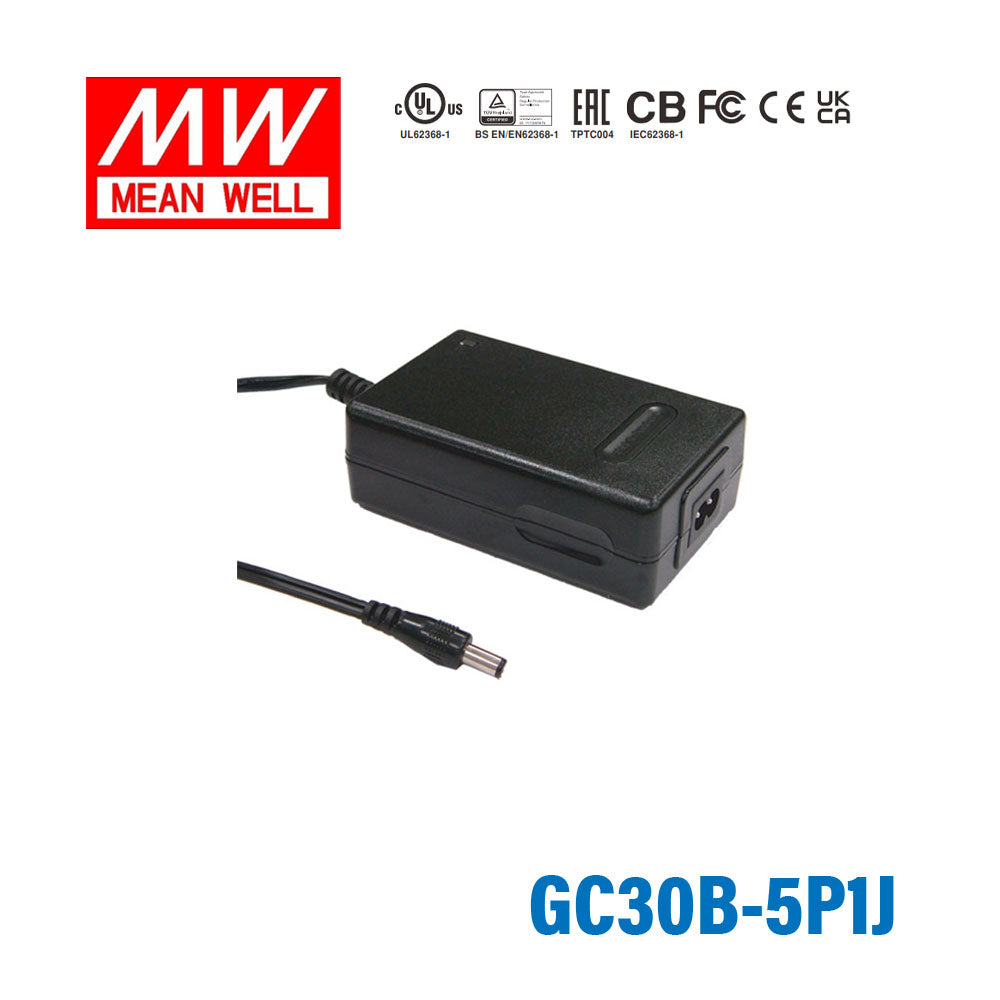

Description
Description
Features
Universal AC input / Full range |
2 pole AC inlet IEC320-C8 |
Class II power(without earth pin) |
No load power consumption < 1.0W |
Constant current and voltage(CC, CV mode) |
Suitable for continued load |
For high surge current equipment |
Protections: Short circuit / Overload / Over voltage / Over Temp. |
2 color LED indicator for charging status |
Fully enclosed plastic case |
High reliability |
Approvals:TUV/UL/CUL/CB/FCC/CE |
2 years warranty |
General Specification
AC input voltage range | 90~264VAC | 127~370VDC |
AC inrush current | 40A / 230VAC |
Over-voltage protection | 110%~135% Shut down and latch off o/p voltage, re-power on to recover |
Withstand voltage | I/P-O/P:3KVAC |
Working temperature | -0~+50°C (refer to derating curve) |
Safety standards | UL62368-1, CSA22.2, EAC TP TC 004 approved |
EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
Dimension (LxWxH) | 108 x 67 x 36 mm |
Packing | 309g; 54pcs / 19kg / CARTON |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating27 Watt
-
Output Voltage16.8 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~50°C
-
Warranty2 Year
-
Length4.25 in
-
Width2.64 in
-
Height1.42 in
-
Weight0.68 lb
