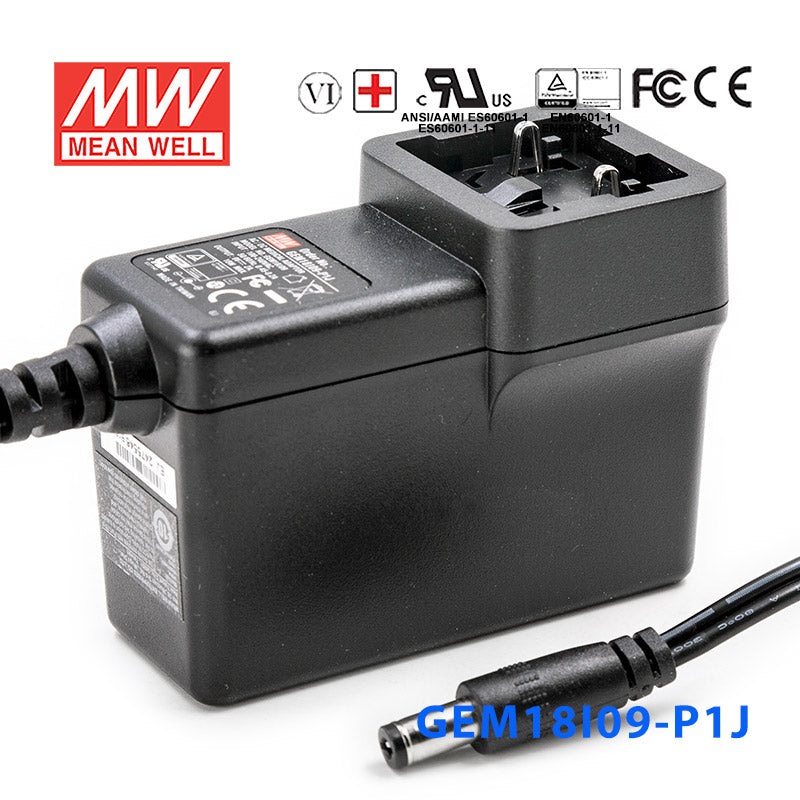

Mean Well GEM18I09-P1J Power Supply 18W 9V
$17.68 USD
Unit price /
Unavailable
Description
Description
Features
| Interchangeable AC plugs (plug kit sold separately) |
| Medical safety approved(2 xMOPP) according to 60601-1 |
| Extremely low leakage current |
| No-load power consumption <0.075W |
| Energy efficiency Level VI |
| -20 ~ +50°C wide range working temperature |
| Class II power (without earth pin) |
| Protections: Short circuit/ Overload/ Over voltage |
| Fully enclosed plastic case |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 15A at 115VAC; 30A at 230VAC |
| Setup, rise, hold up time | 500ms, 30ms, 16ms at 230VAC input |
| Overload protection | 105 ~ 160% rated output power; Hiccup mode, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:5656VDC |
| Working temperature | -20~+50°C (refer to output derating curve) |
| Safety standards | TUV BS EN/EN60601-1,ANSI/ AAMI ES60601-1(3.1 version), CAN/CSA-C22 NO. 60601-1 3 edition, EAC TP TC 004 approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Length of output cable | UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V |
| Dimension (LxWxH) | 75.5x 39.1x 56.2 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating18 Watt
-
Output Voltage9 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.31 lb
