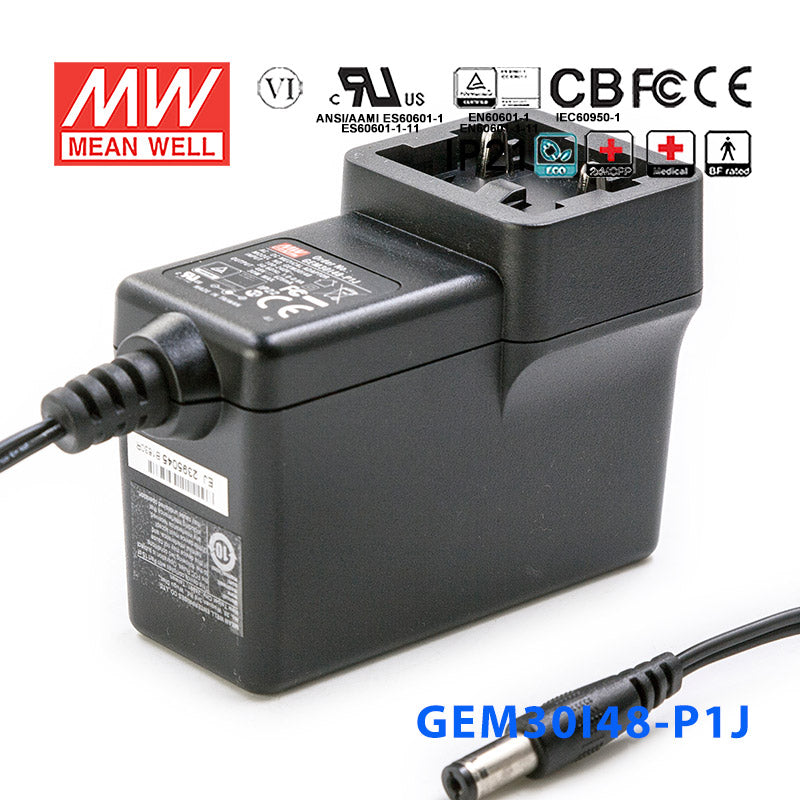

Mean Well GEM30I48-P1J Power Supply 30W 48V
The GEM30I48 is a 30W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating30 Watt
-
Output Voltage48 Volt
-
Rated Current0.62 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length2.97 in
-
Width2.21 in
-
Height1.54 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the GEM30I48-P1J for a 48V industrial communication or control device?
Yes, if the equipment needs a constant-voltage 48V DC input and the load stays at or below 0.62A. With a 30W rating, it is intended for lower-power 48V electronics rather than higher-current 48V systems.
Is this suitable for a compact 48V embedded or telecom-style module?
It can be suitable for compact 48V modules that draw no more than 0.62A from a fixed-voltage source. The 80-264VAC input is also useful when the same hardware may be powered from different AC mains ranges.
Can this power a small 48V automation node or interface unit?
Yes, for 48V DC interface units or automation nodes that fit within the 30W output budget. Because the output current is 0.62A, it is best matched to lighter 48V electronic loads.
Does the GEM30I48-P1J work in outdoor or temperature-variable environments?
The temperature specification is -25°C to +70°C, so the operating range is defined for installations that see colder or warmer conditions within that band. The provided product data does not include an IP rating, so outdoor exposure and resistance to dust or water are not established here.
What are the differences among the GEM30I48-P1J sibling options?
The sibling options listed are GEM30I48-P1J-欧套, GEM30I48-P1J-混套, GEM30I48-P1J-澳套, GEM30I48-P1J-美套, and GEM30I48-P1J-英套. The core specs remain 30W, 48V, 0.62A, constant-voltage output, 80-264VAC input, 75.5 × 56.2 × 39.1 mm dimensions, -25°C to +70°C operation, and a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GEM30 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GEM30I24-P1J Power Supply 30W 24V | 30W | 24V | 1.25A | Indoor | $27.10 | View |
| Mean Well GEM30I18-P1J Power Supply 30W 18V | 30W | 18V | 1.66A | Indoor | $27.10 | View |
| Mean Well GEM30I15-P1J Power Supply 30W 15V | 30W | 15V | 2A | Indoor | $27.10 | View |
| Mean Well GEM30I12-P1J Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $27.10 | View |
| Mean Well GEM30I09-P1J Power Supply 30W 9V | 30W | 9V | 3.33A | Indoor | $27.10 | View |
| Mean Well GEM30I07-P1J Power Supply 25W 7.5V | 25W | 7.5V | 3.33A | Indoor | $27.10 | View |
| Mean Well GEM30I05-P1J Power Supply 20W 5V | 20W | 5V | 4A | Indoor | $27.10 | View |
