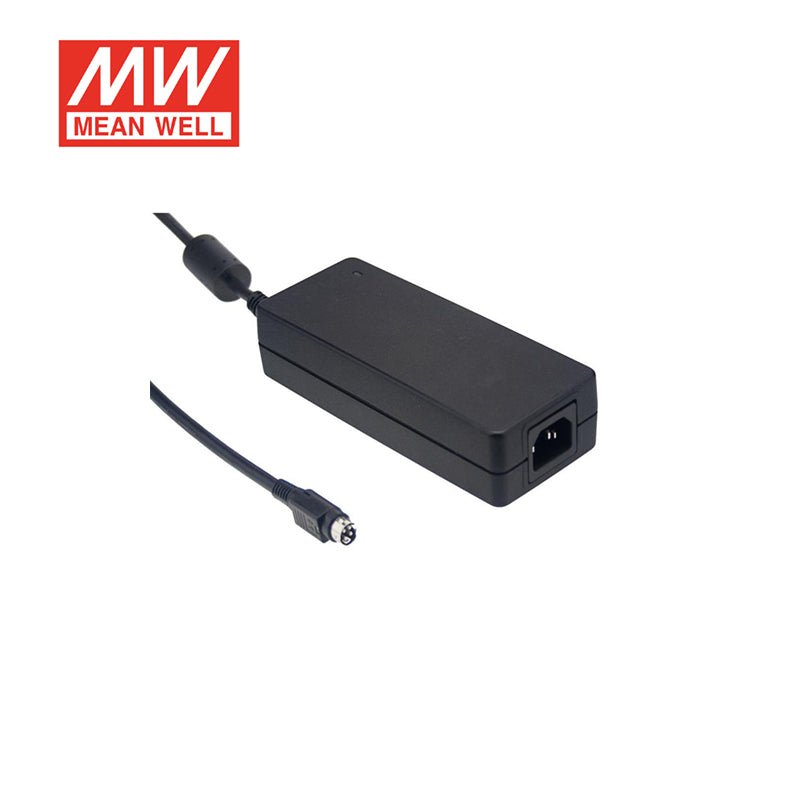

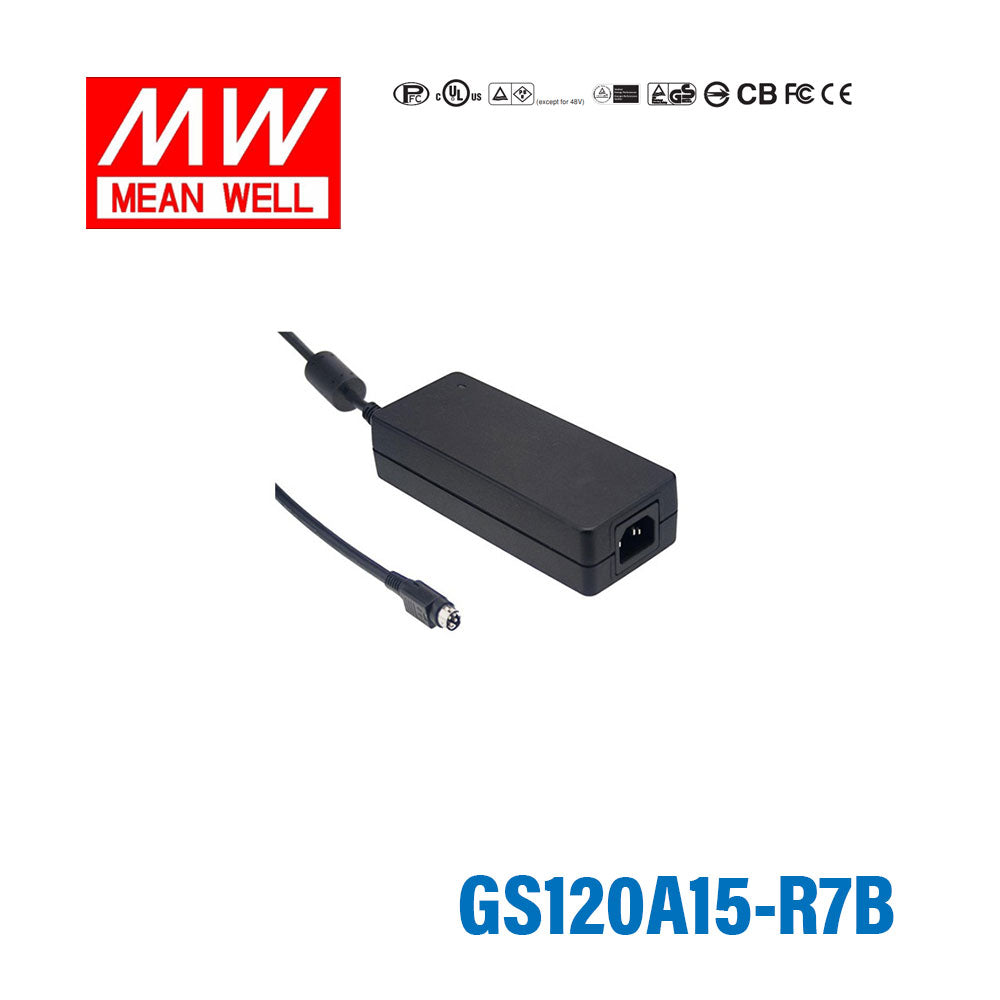

Mean Well GS120A15-R7B Switching Power Adaptor 7A
$29.66 USD
Unit price /
Unavailable
Overview
GS120A15-R7B is the 15V output model of this series: rated current 7A, typical efficiency 89%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- No load power consumption<0.5W
- Energy efficiency Level Ⅴ
- Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP
- 3 pole AC inlet IEC320-C14
- Class I power (with earth pin)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fully enclosed plastic case
- LED indicator for power on
- 2 years warranty
Specifications
GS120A15-R7BSpecifications from the official datasheet (2018-01-30 edition)Download datasheet PDF
OUTPUT
- SAFETY MODEL NO.
- GS120A15
- DC VOLTAGE
- 15V
- RATED CURRENT
- 7A
- CURRENT RANGE
- 0 ~ 7A
- RATED POWER (max.)
- 105W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATIONNote.4
- ±1.0%
- LOAD REGULATION
- ±5.0%
- SETUP, RISE TIMENote.5
- 2000ms, 30ms / 230VAC 2500ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms / 230VAC 20ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.6
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.97 / 230VAC PF>0.99 / 115VAC at full load
- EFFICIENCY (Typ.) R7B
- 89%
- EFFICIENCY (Typ.) P1M
- -----
- AC CURRENT
- 1.4A / 115VAC 0.7A / 230VAC
- INRUSH CURRENT (max.)
- 70A / 230VAC
- LEAKAGE CURRENT(max.)
- 0.75mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

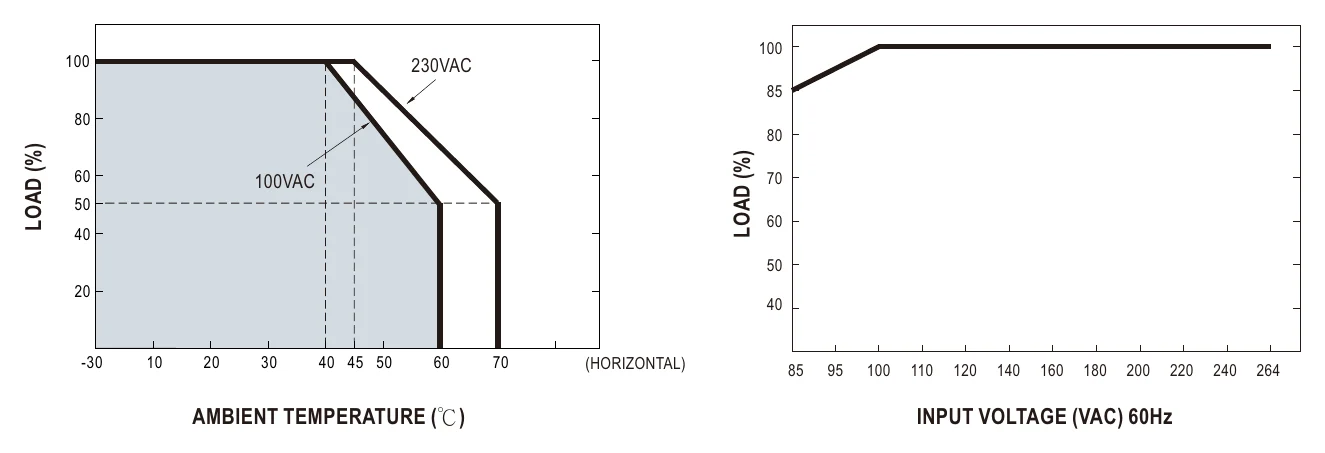

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 45℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 7)
- SAFETY STANDARDS
- UL60950-1, CSA C22.2, TUV EN60950-1, PSE J60950-1(except for 48V) approved
- WITHSTAND VOLTAGE
- I/P-O/P: 3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS
- MTBF
- 400.7K hrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 167*67*35mm (L*W*H)
- PACKING
- 0.62Kg; 20pcs/13.4Kg/0.9CUFT
CONNECTOR

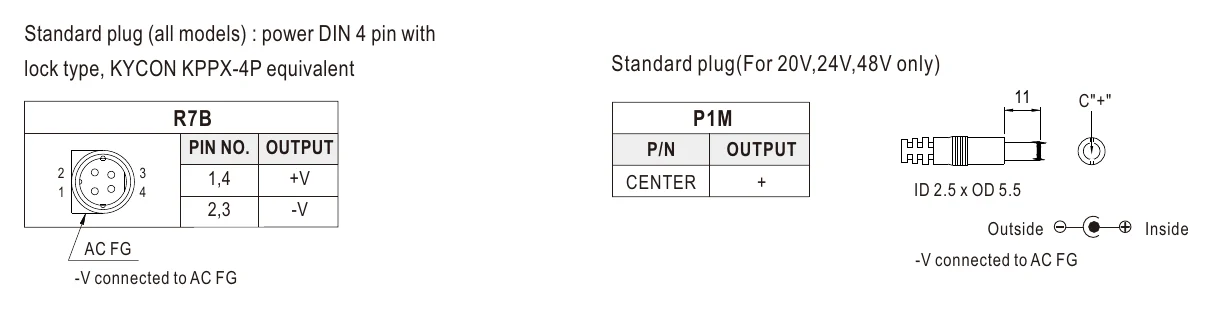

- PLUG
- See page 2 ; Other type available by customer requested
- CABLE
- See page 2 ; Other type available by customer requested
Test conditions and notes7
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3. Tolerance: includes set up tolerance, line regulation, load regulation.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

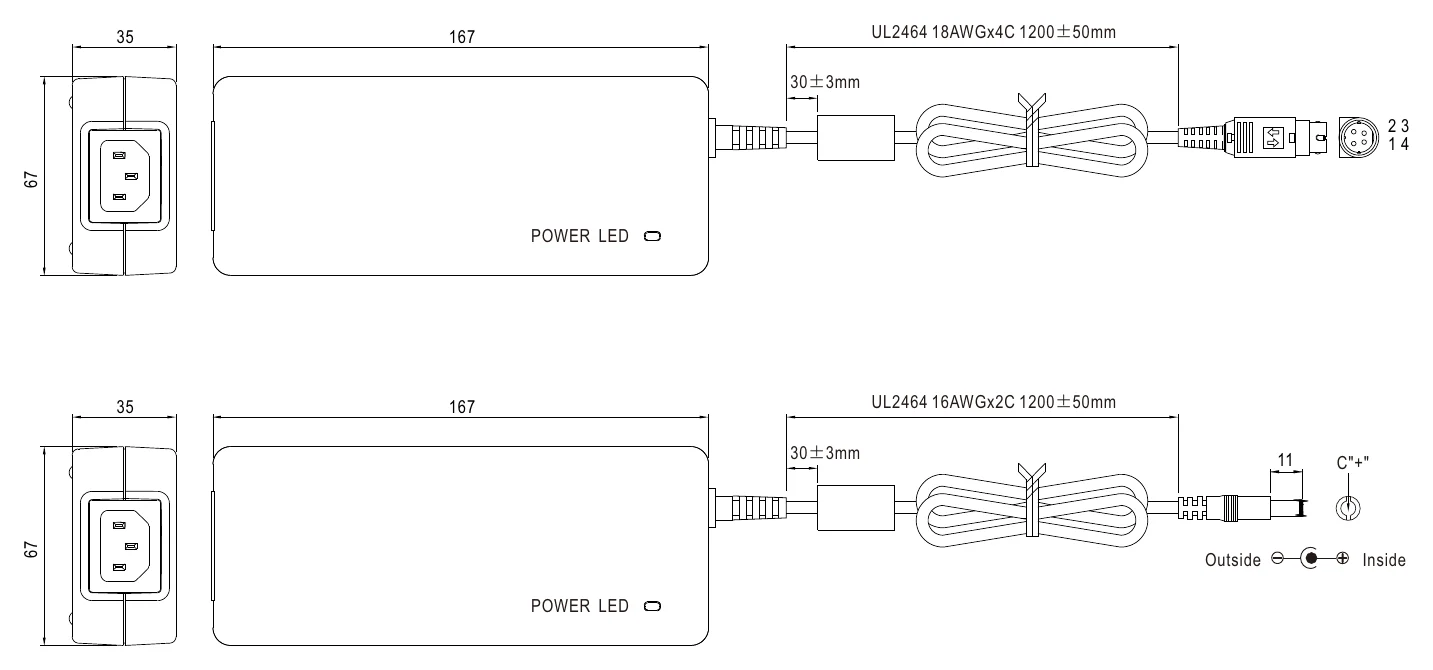

Technical drawings
