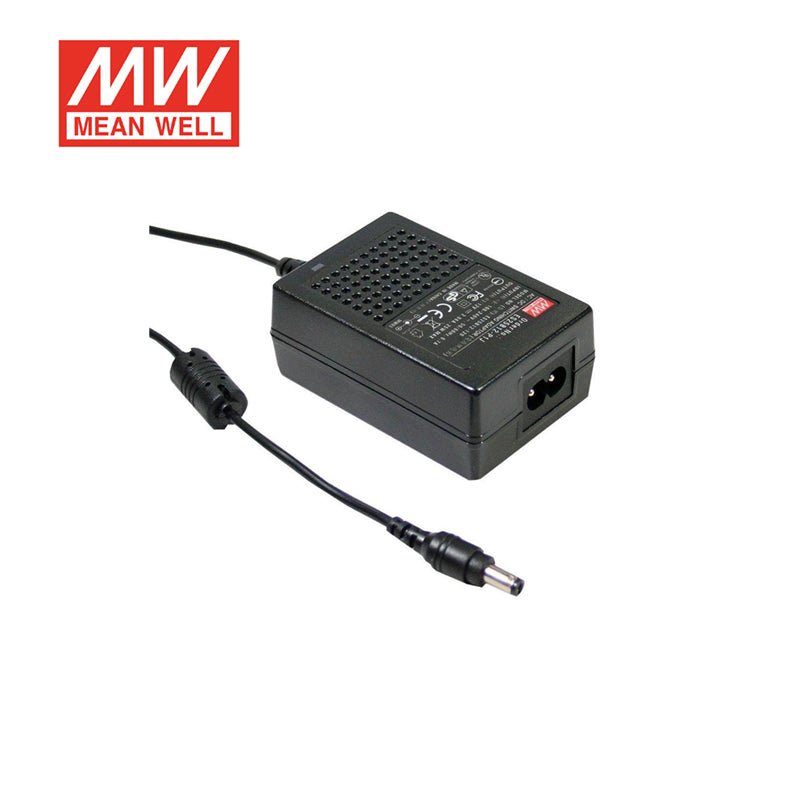

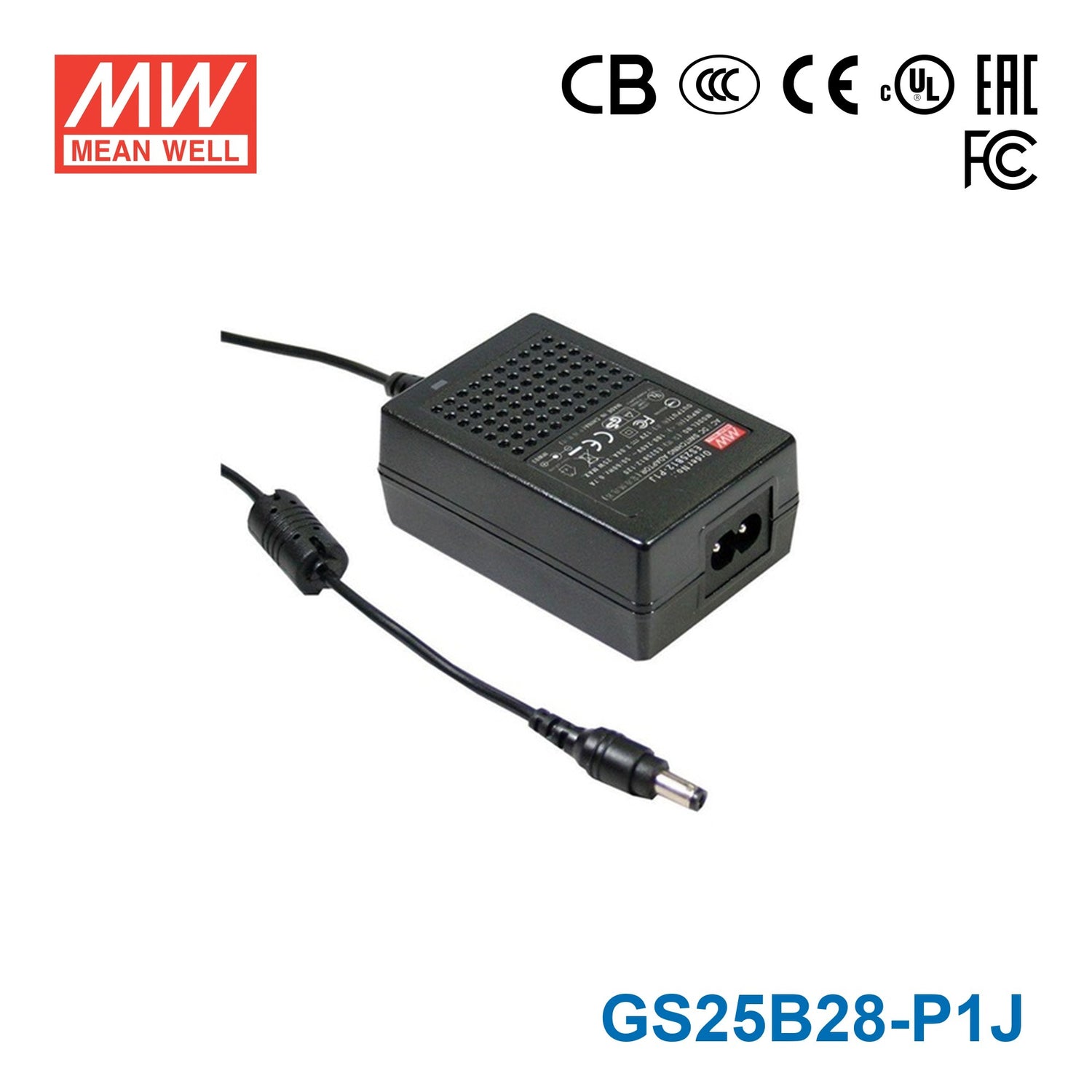

Mean Well GS25B28-P1J Swiching Power Adaptor

SKU:
GS25B28-P1J

$7.61 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption<0.3W
Energy efficiency Level V
Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP
2 pole AC inlet IEC320-C8
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Pass LPS
Fully enclosed plastic case
LED indicator for power on
2 years warranty

General Specification

Line regulation (max.) ± 1.0%
Load regulation (max.) ± 2.0%
Overload protection Range 110 ~ 150% rated output power
Overload protection Type Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection Clamp by zener diode, output short
Withstand voltage I/P-O/P:4242VDC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature 0 ~ +50 ℃ (Refer to "Derating Curve")
Safety standards UL60950-1, CSA C22.2, TUV EN60950-1 , CCC GB4943 approved
Dimension (LxWxH) (mm) 79*54*33mm (L*W*H)
Packing 210g; 60pcs/13.5Kg / CARTON

Specifications

  • Brand
    Mean Well
  • Series
    GS Series
  • Power Rating
    25 Watt
  • Output Voltage
    28 Volt
  • Rated Current
    0.89 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    Non Dimmable
  • Standards Met
    CB,CCC,CE,cUL,EAC,FCC
  • Operating Temperature
    0°C~50°C
  • Warranty
    2 Year
  • Length
    3.11 in
  • Width
    2.13 in
  • Height
    1.3 in
  • Weight
    0.46 lb

File Downloads
