Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

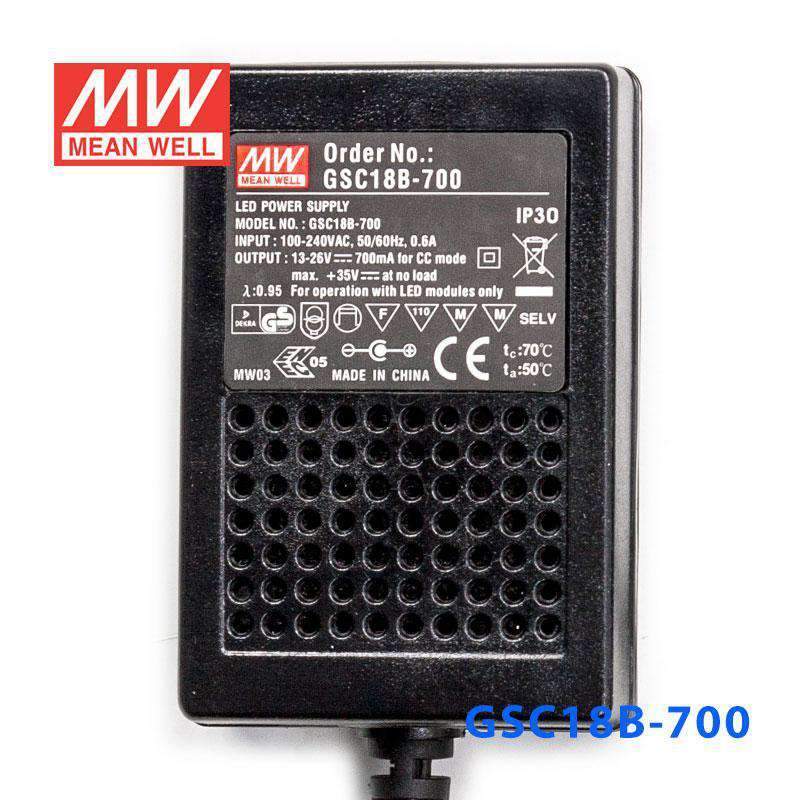

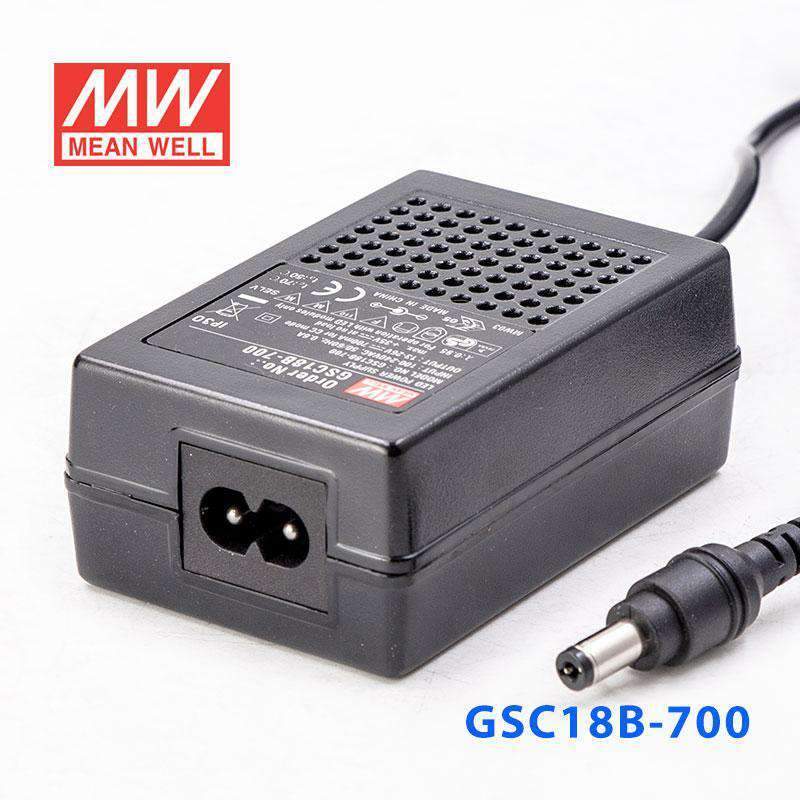

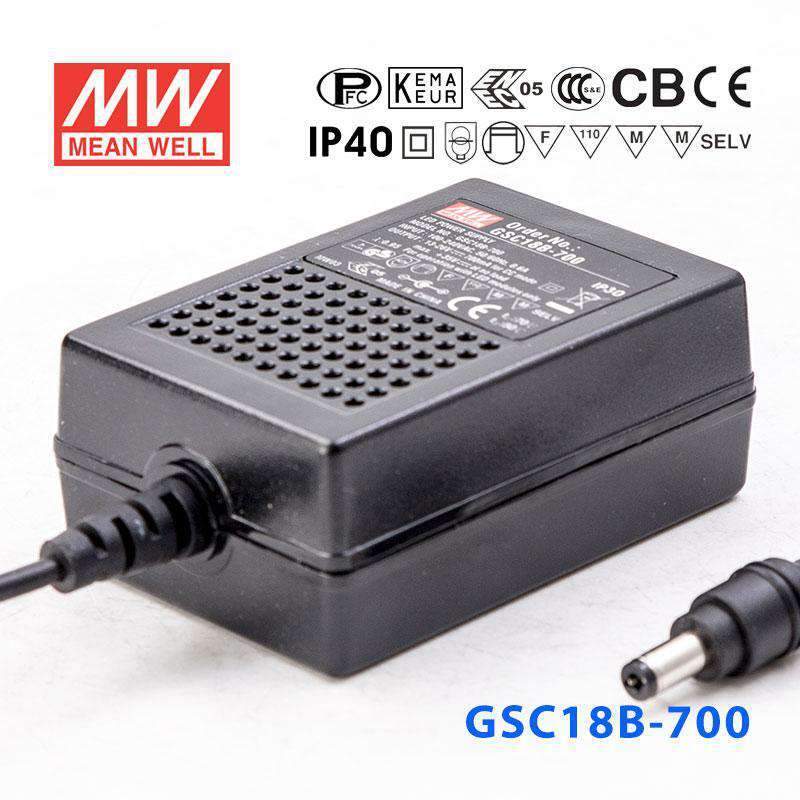

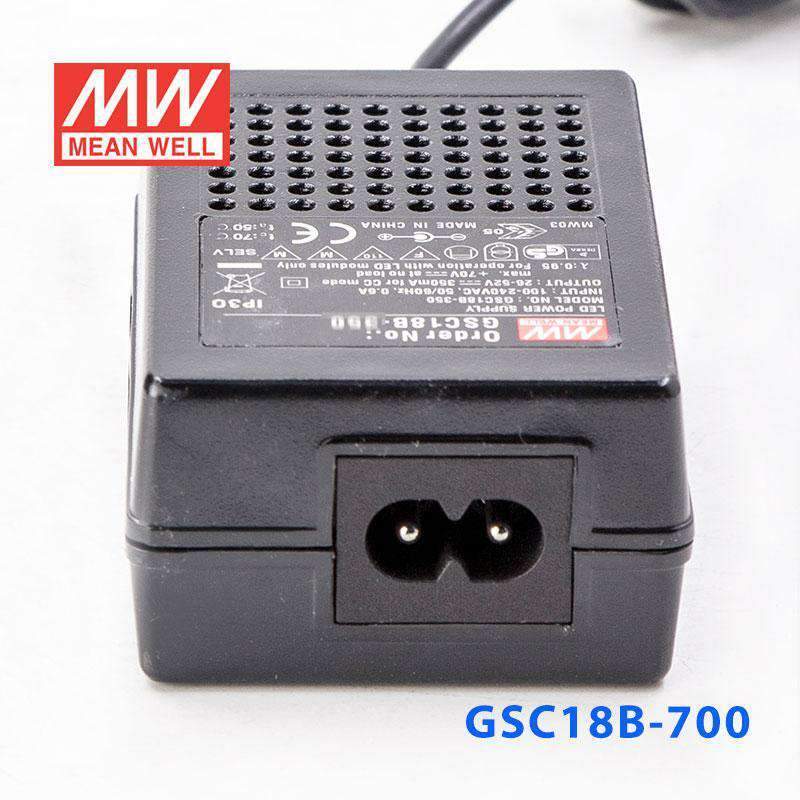

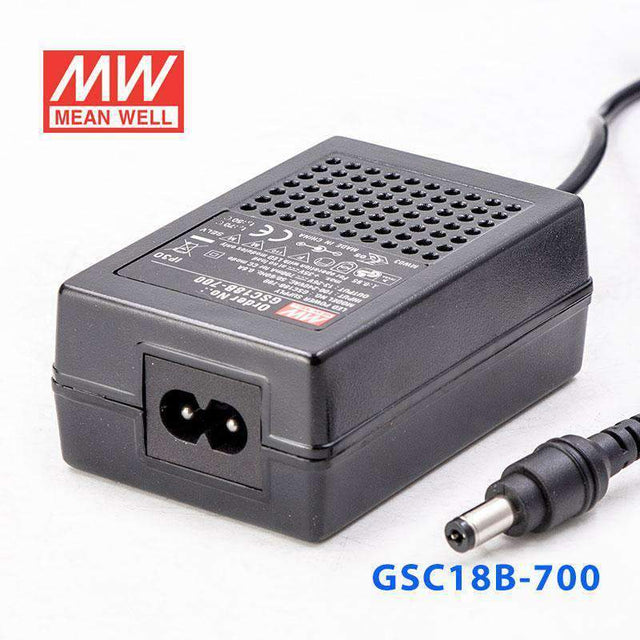

Mean Well GSC18B-700 Power Supply 18W 700A
$8.72 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range (up to 277VAC) |
| 2 pole AC inlet IEC320-C8 |
| Built-in active PFC function |
| Constant current design |
| Protections: Short circuit |
| Cooling by free air convection |
| Fully isolated plastic case |
| Class power unit, no FG |
| No load power consumption <0.15W |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed |
| AC inrush current (max.) | Cold start 17A/230VAC |
| Withstand voltage | I/P-O/P:3.75K VAC |
| Working temperature |
-30 ~ +50°C (Refer to "Derating Curve") |
| Safety standards | Dekra GS/ENEC EN61347-1, EN61347-2-13 listed, EN62384, GB19510.1, GB19510.14 approved |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C ( load) ; EN61000-3-3, GB17743, GB17625.1 |
| Dimension (LxWxH)(mm) | 79 x 54 x 33 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSC Series
-
Power Rating18.2 Watt
-
Output Voltage26 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~277V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.42 lb
