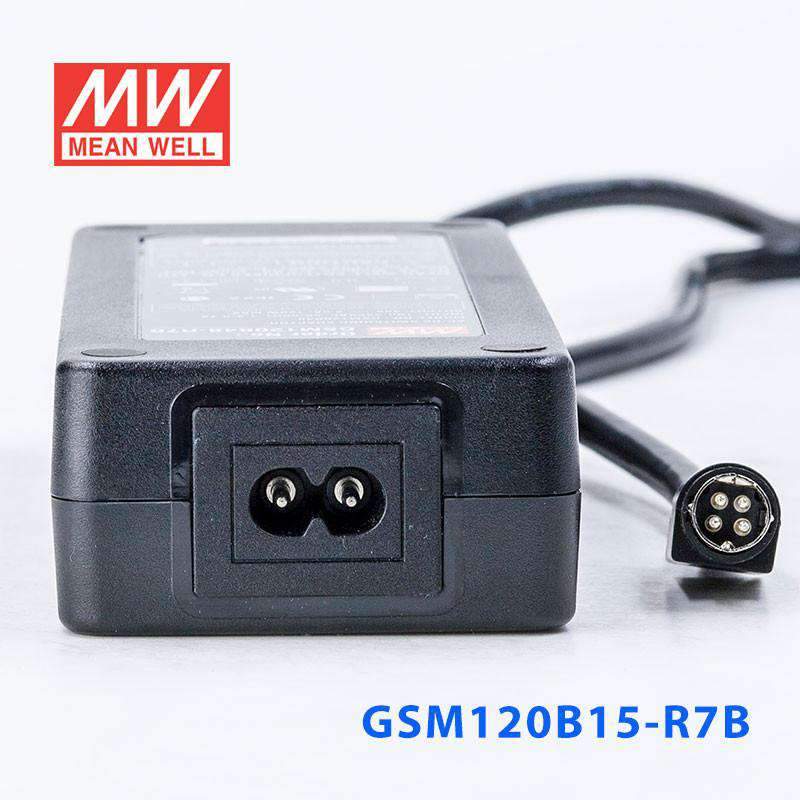

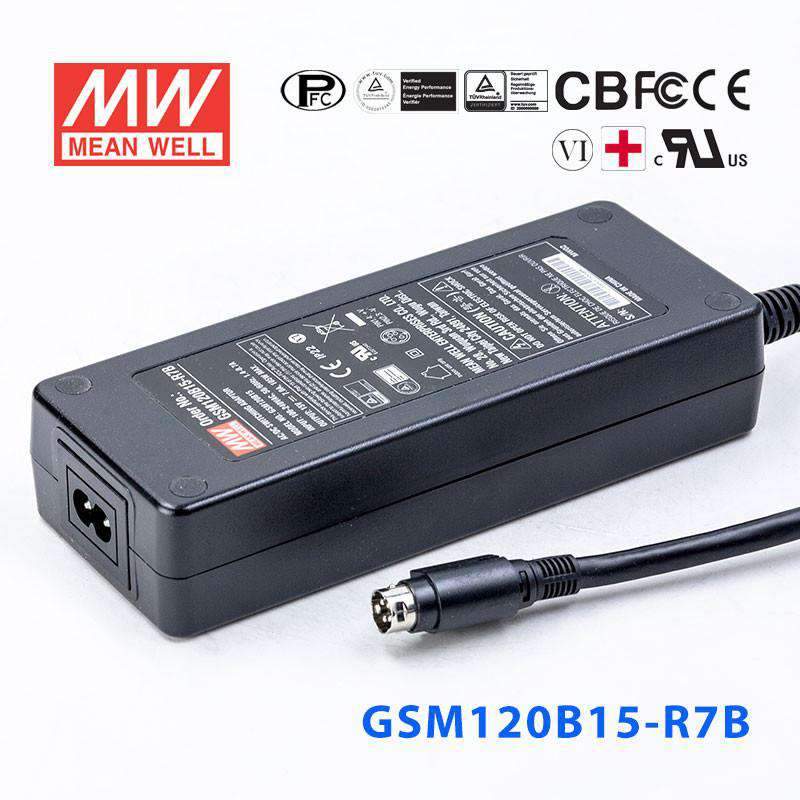

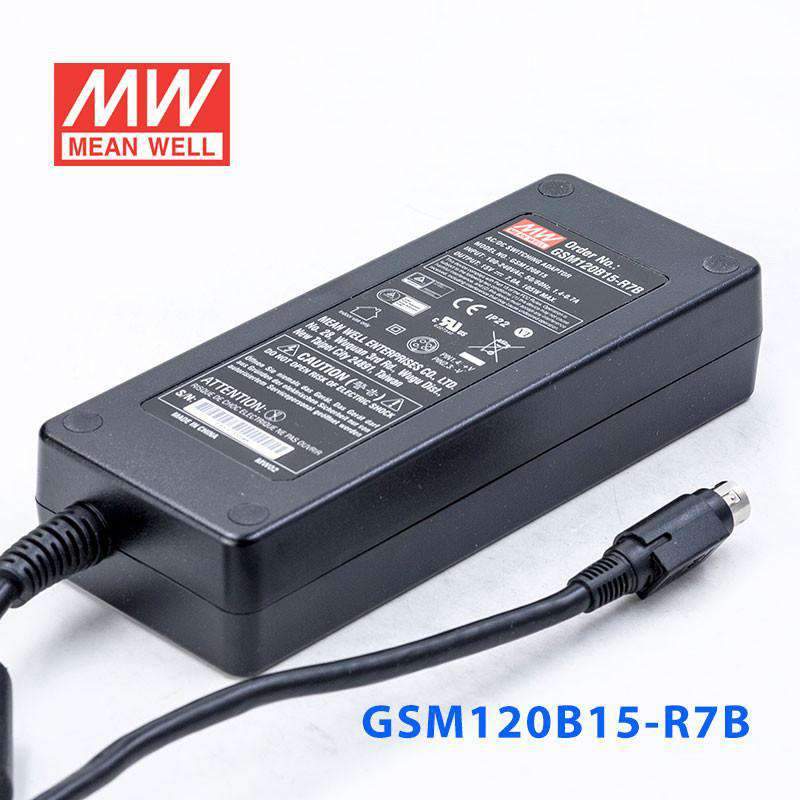

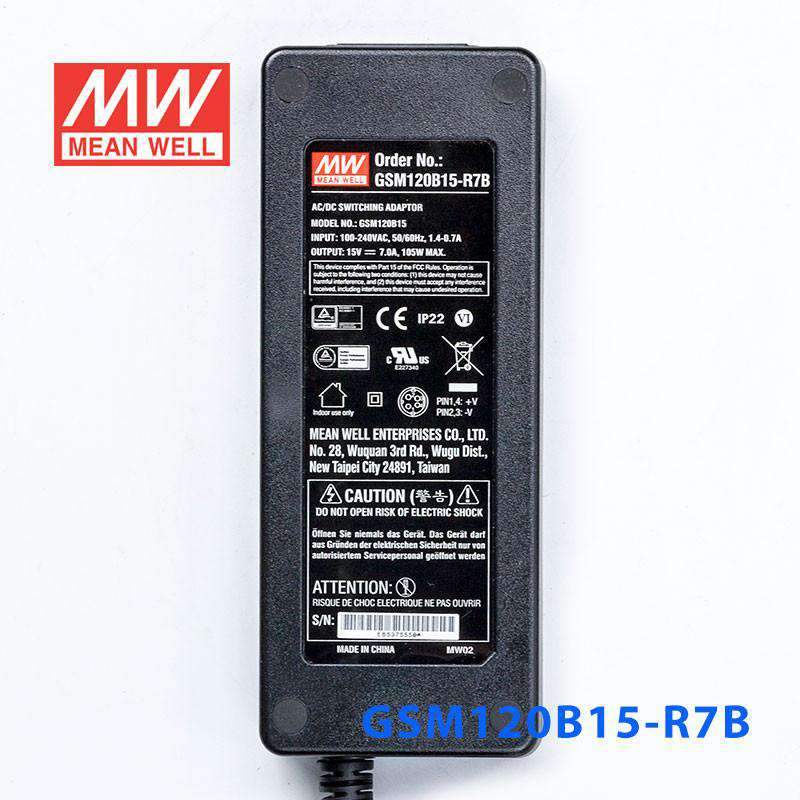

Mean Well GSM120B15-R7B Power Supply 105W 15V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 91.5% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

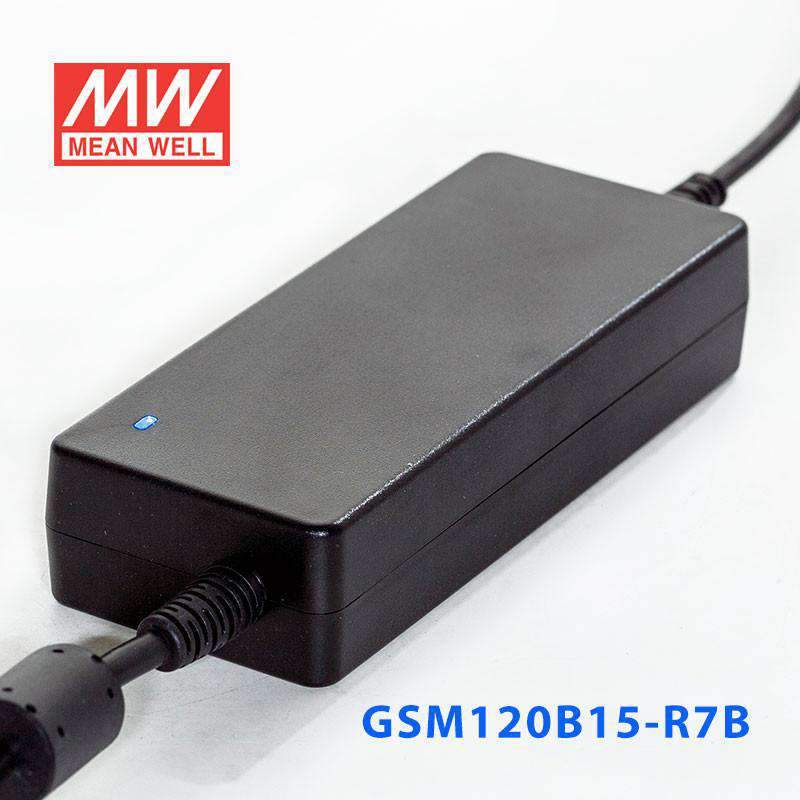

| LED indicator for power on |
| Energy efficiency level VI |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| Overload protection | 105%~160% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+60°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 12V ; 120cm of UL2464, 18AWG for 15~48V |
| Dimension (LxWxH) | 167x 67x 35 mm |
| Standard DC plug | R7B: Power DIN 4P with lock type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating105 Watt
-
Output Voltage15 Volt
-
Rated Current7 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM120B15-R7B for a 15V industrial display, controller, or terminal?
Yes, if the device is designed for regulated 15V DC constant-voltage input. This supply delivers up to 7A with 105W total output power.
Is this model suitable for 15V embedded electronics or computing hardware?
It can be used with embedded hardware that specifies a fixed 15V DC input. The output is constant-voltage 15V, with up to 7A available and 105W maximum power.
Will the GSM120B15-R7B work for 15V automation modules or control subsystems?
Yes, for automation modules that require 15V DC constant-voltage power. The connected load must stay within 7A and 105W.
Can I use this power supply for 15V test, measurement, or lab equipment?
It can be a fit for test or lab equipment that is rated for regulated 15V DC input. This unit supplies 15V constant voltage and supports up to 7A output current.
Is the GSM120B15-R7B appropriate for outdoor or unconditioned spaces?
The published operating temperature range is -30°C to +70°C, so the temperature rating is broad. The provided specs do not include an IP rating, so exposed outdoor or wet-environment use is not specified.
