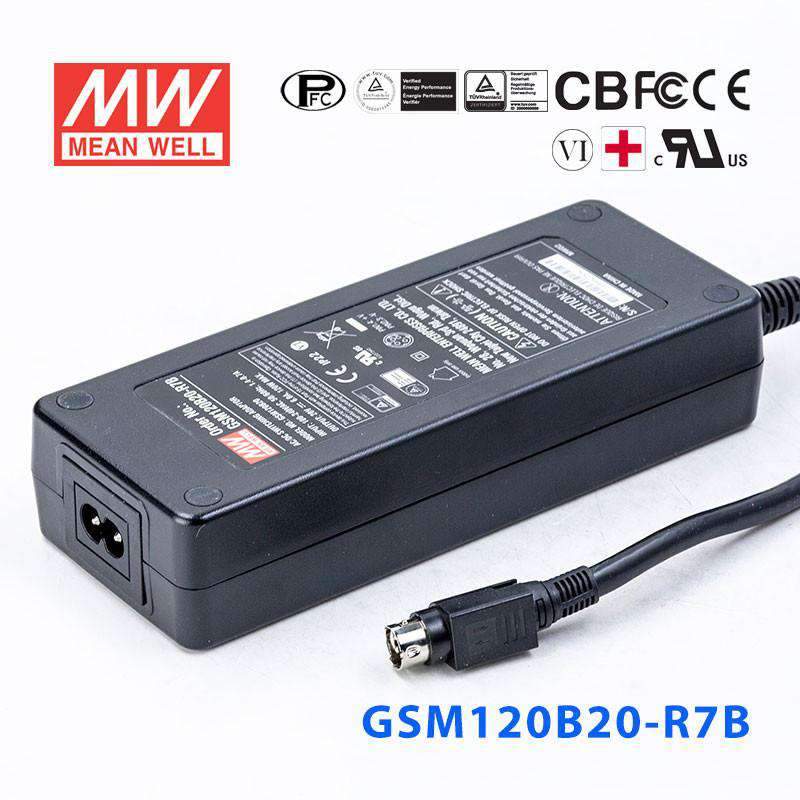

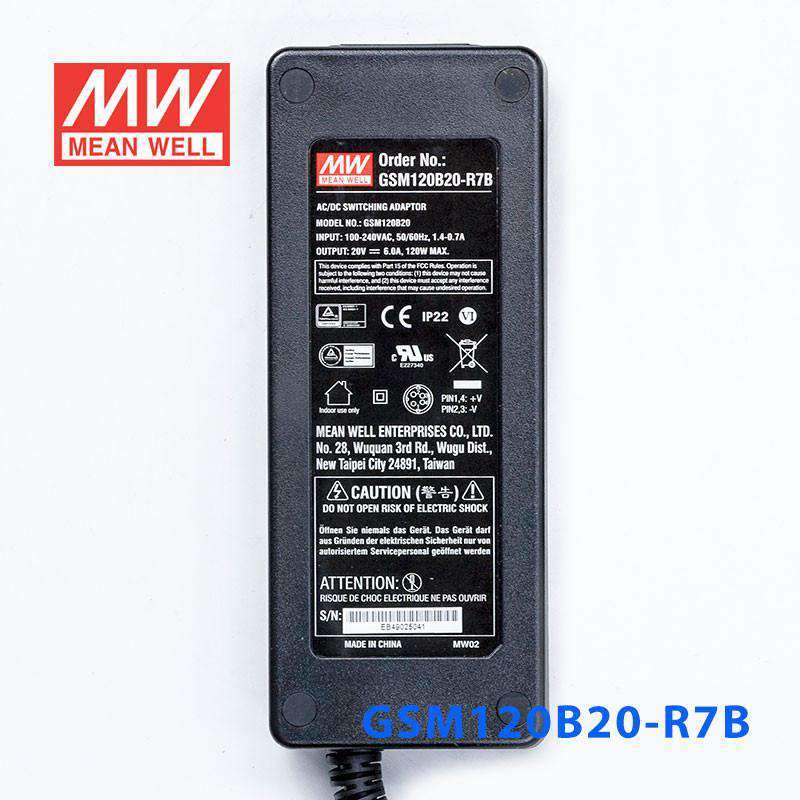

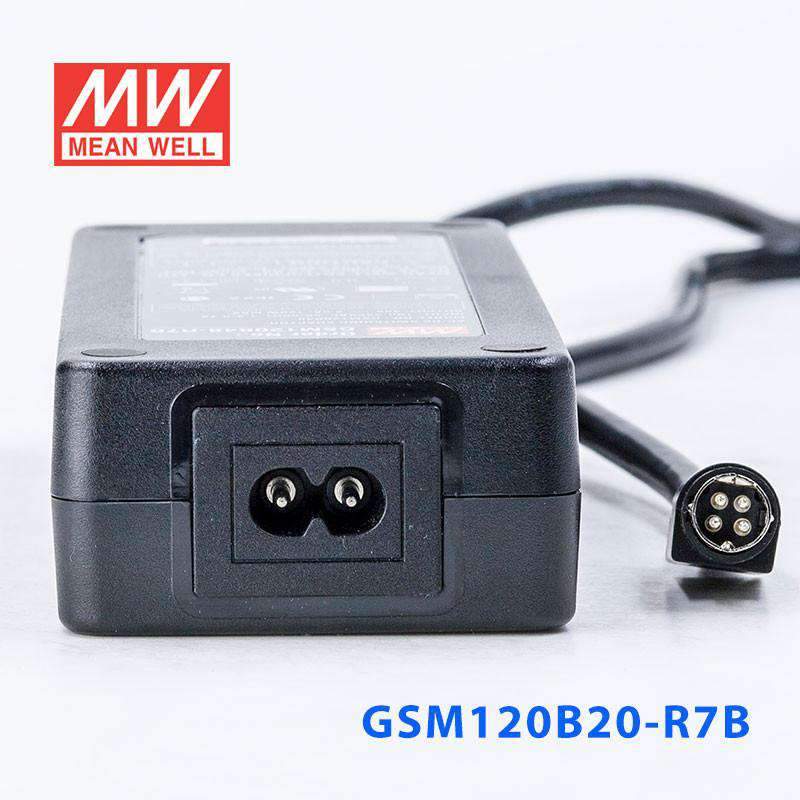

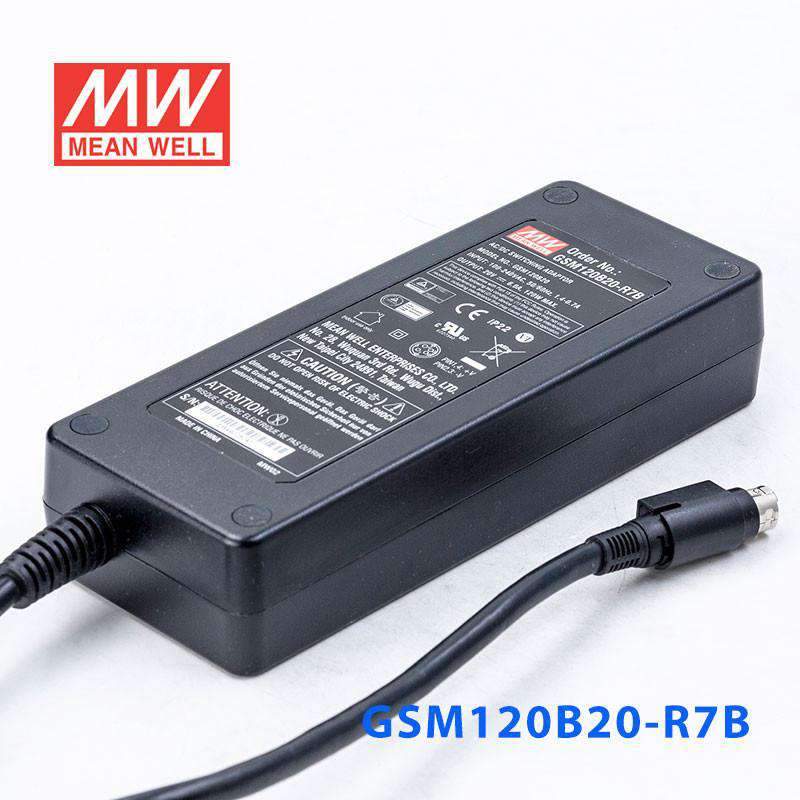

Mean Well GSM120B20-R7B Power Supply 120W 20V 6A
Overview
GSM120B20-R7B is the 20V output model of this series: rated current 6A, typical efficiency 89.5%. Type R7B: Standard model,Power DIN 4Pin with lock type.
GSM120B is a highly reliable, 120W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91.5% and the extremely low no-load power consumption below 0.15W, GSM120B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM120B is approved with the international medical safety certificates.
Features
- 2 pole AC inlet IEC320-C8, Class Ⅱ power unit
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.15W
- Energy efficiency level VI and meet CoC Version 5
- -30~+70℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature

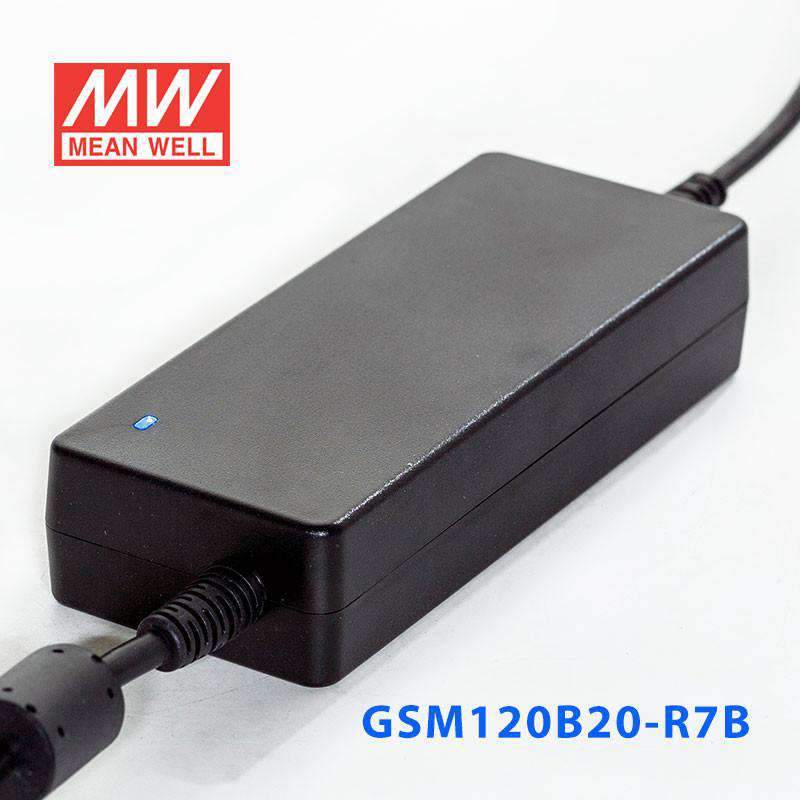

- LED indicator for power on
- Lifetime> 105 K hours
- Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM120B20
- DC VOLTAGENote.2
- 20V
- RATED CURRENT
- 6A
- CURRENT RANGE
- 0 ~ 6A
- RATED POWER (max.)
- 120W
- RIPPLE & NOISE (max.)Note.3
- 150mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±4.0%
- SETUP, RISE TIMENote.6
- 1500ms, 30ms / 230VAC 2000ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 40ms / 230VAC 24ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.93 / 230VAC PF>0.97 / 115VAC at full load
- EFFICIENCY (Typ.)
- 89.5%
- AC CURRENT (Typ.)
- 1.4A / 115VAC 0.7A / 230VAC
- INRUSH CURRENT (Typ.)
- Cold start 35A / 115VAC 70A / 230VAC
- LEAKAGE CURRENT(max.)
- Touch current < 100 μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- OPERATING ALTITUDENote.8
- 3000 meters
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1,CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1,EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P: 4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B Harmonic current BS EN/EN61000-3-2 Class A Voltage flicker BS EN/EN61000-3-3 - EMC IMMUNITYNote. 9
-
BS EN/EN60601-1-2, BS EN/EN61204-3
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 2546.9K hrs min. Telcordia SR-332 (Bellcore) ; 372.0K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 167*67*35mm (L*W*H)
- PACKING
- 0.6Kg; 20pcs/13,0Kg/0.89CUFT
CONNECTOR
- PLUG
- See page 4~5; Other type available by customer requested
- CABLE
- See page 4~5; Other type available by customer requested
MODEL ENCODING
- R7B (this model)
- Standard model,Power DIN 4Pin with lock type
- Blank
- Other options available by customer requested (see Page 4~5)
Test conditions and notes9
- 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The ambient temperature derating of 3.5 ℃/1000m with fanless models and of 5 ℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Mobile clinical workstation
- Oral irrigator
- Portable hemodialysis machine
- Breath Machine
- Medical computer monitor
Downloads
Datasheet1
Certificates7
FAQ
Can I use the GSM120B20-R7B for a 20V industrial panel PC or HMI?
This model is a constant-voltage 20V power supply rated for up to 6A and 120W. It is suitable for a panel PC or HMI only if that equipment specifically requires 20V DC and its load stays within 6A and 120W.
Is this 20V power supply a fit for embedded computing equipment that needs stable DC output?
Yes, it is intended for equipment that needs a fixed 20V constant-voltage source. With 120W available and a 6A output rating, it fits embedded systems whose input requirement matches 20V DC and stays within those limits.
Can this unit power a 20V display, terminal, or office device used in commercial environments?
It can support commercial or technical equipment that is designed for 20V DC input. The key limits are the fixed 20V output, 6A maximum current, and 120W total output capacity.
Would this work for a 20V automation accessory or control device?
It can be used for automation equipment when the device is specified for 20V DC constant-voltage input. The supply provides up to 6A, so the connected load must remain at or below 120W.
Is the GSM120B20-R7B suitable for outdoor or harsh-environment use?
The listed operating temperature range is -30°C to +70°C, so the temperature tolerance is broad. However, no IP rating is provided in the product specs, so the listing does not state protection against water or dust exposure.
