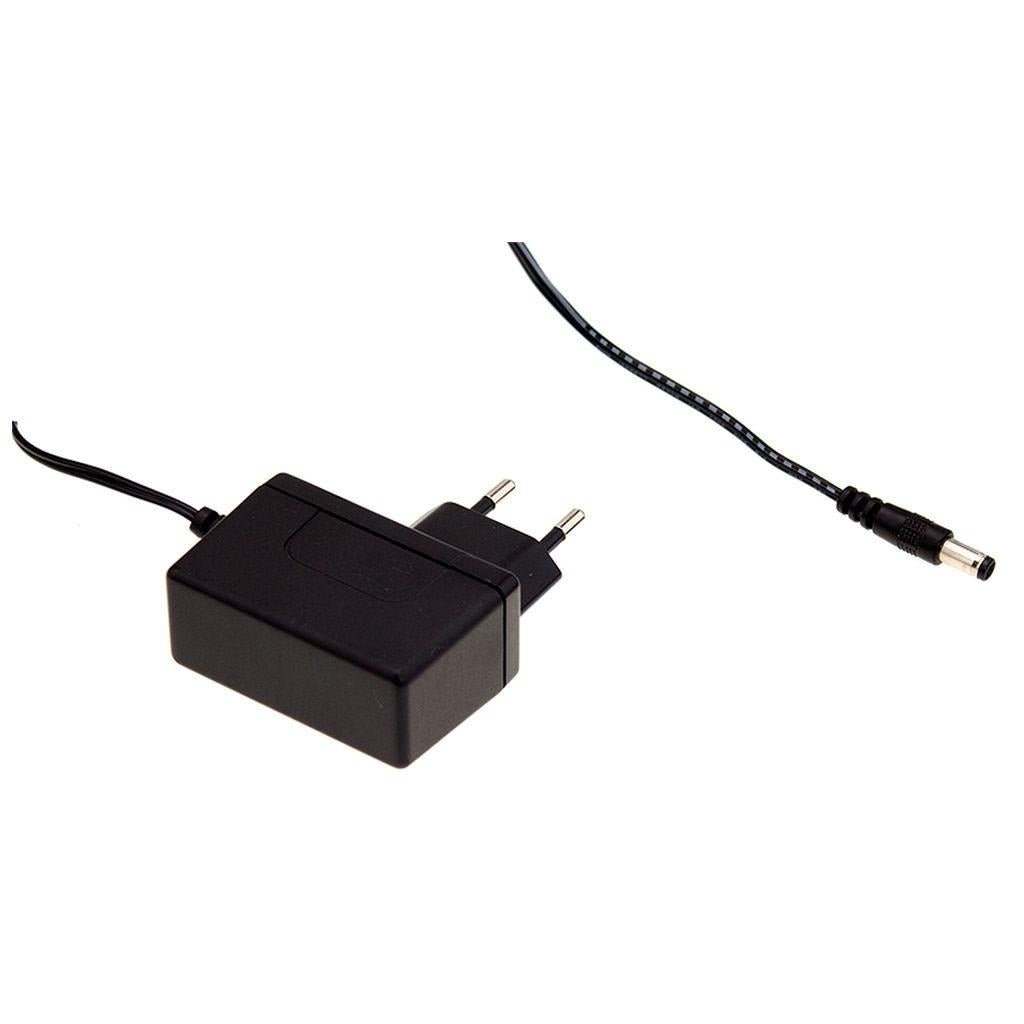

Mean Well GSM12E05-P1J Power Supply 12W 5V
The GSM12E05 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.45 in
-
Width1.56 in
-
Height1.08 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM12E05-P1J to power a 5V embedded board or microcontroller system?
Yes, if the system requires a constant 5V DC input. This supply is rated for up to 2.4A and 12W, so the connected 5V load needs to stay within those limits.
Is this a fit for compact 5V industrial or IT peripherals?
It can support small 5V peripherals used in industrial or IT environments when they are designed for fixed 5V DC input. The maximum output is 2.4A, with total available power limited to 12W.
Can the GSM12E05-P1J power a small 5V automation interface or sensor hub?
It is suitable for low-power automation accessories that require constant-voltage 5V DC. The load must stay at or below 2.4A and within the 12W rating.
Would this power supply work for a 5V single-board computer or control accessory?
It can work for a single-board computer or control accessory if the device is specified for 5V DC input. The important limits are 2.4A maximum output current and 12W maximum power.
What is the difference between the GSM12E05-P1J and the GSM12E05-USB?
The listed sibling in this series is the GSM12E05-USB. On this product page, the GSM12E05-P1J is specified as a 12W, 5V, 2.4A constant-voltage power supply, but no technical specs are provided here for the GSM12E05-USB.
Is the GSM12E05-P1J suitable for outdoor use?
The specified operating temperature range is -20°C to +70°C. No IP rating is shown in the provided specs, so the listing does not state weather or water-resistance performance for outdoor exposure.
