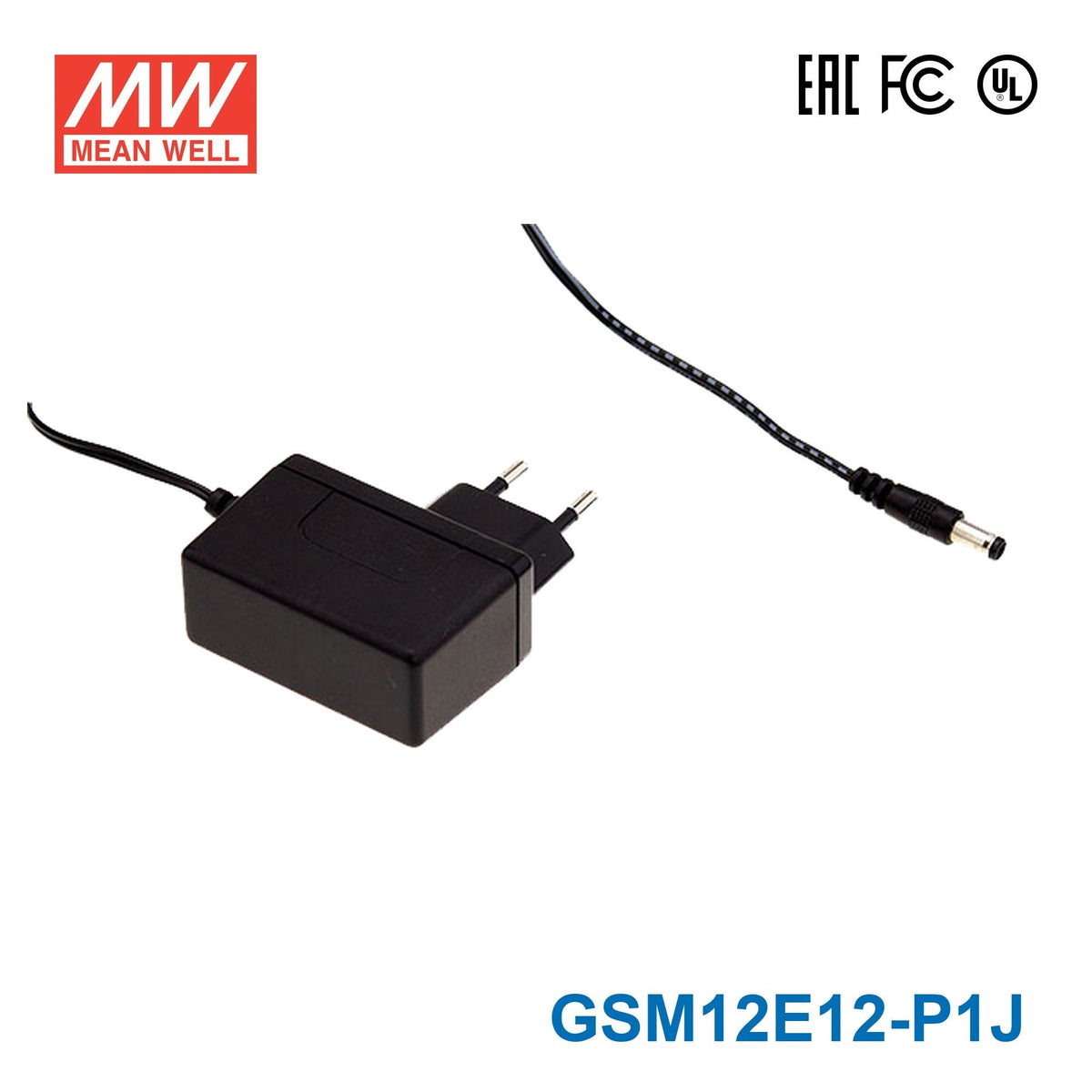

Mean Well GSM12E12-P1J Power Supply 12W 12V

$18.24 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Energy efficiency level VI
Medical safety approved (2 x MOPP)
Extremely low leakage current
No load power consumption < 0.075W(<0.1W for 18V/48V)
High efficiency up to 87%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 80~264VAC ; 113~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
Overload protection 110%~200% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 5656VDC
Working temperature -20~+70°C
Safety standards TUV EN60601-1,EN60601-1-11 approved
EMC standards EN55011(CISPR11) class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3
Length of output cable 100cm of UL2468, 18AWG for 5~7.5V; 120cm of UL2468, 22AWG for 9V; 180cm of UL2468, 24AWG for 12V~48V
Dimension (LxWxH) 62.2 x 27.4 x 39.7mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type
packing 90pcs/10Kg

Specifications

  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    12 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    EAC,FCC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    2.45 in
  • Width
    1.56 in
  • Height
    1.08 in
  • Weight
    0.22 lb
