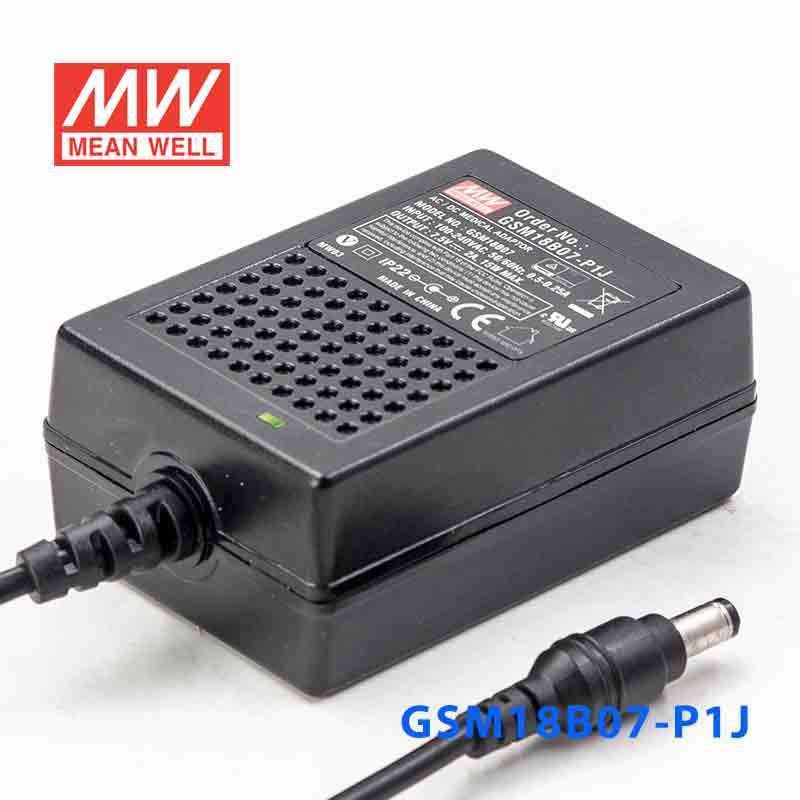

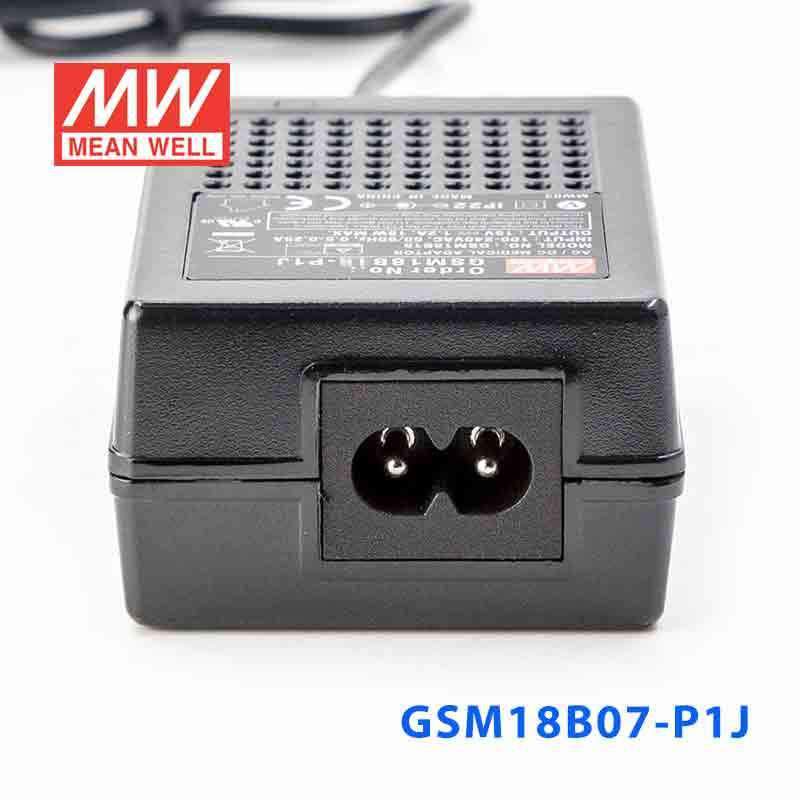

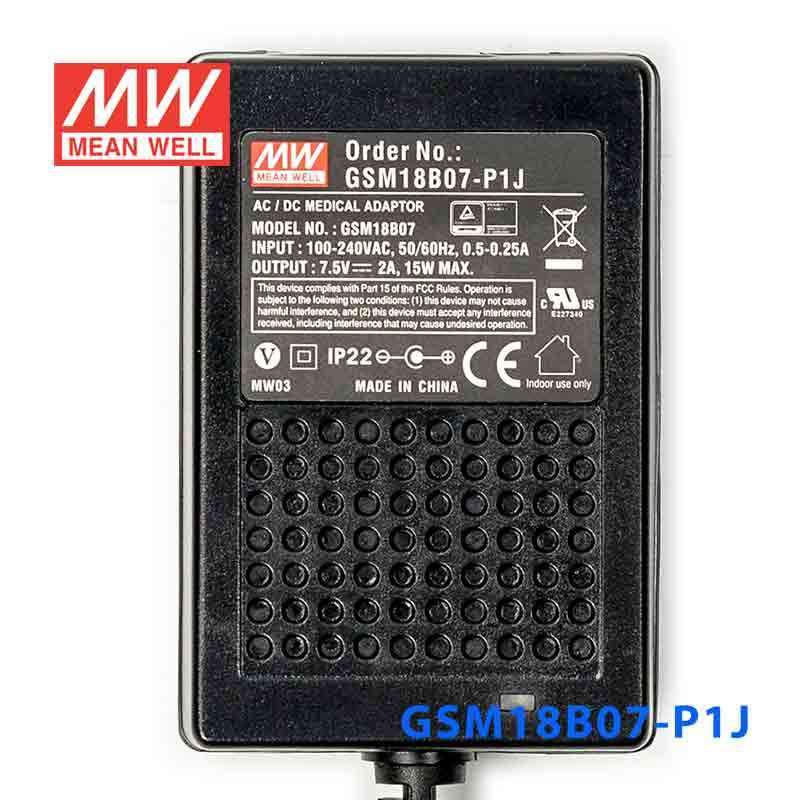

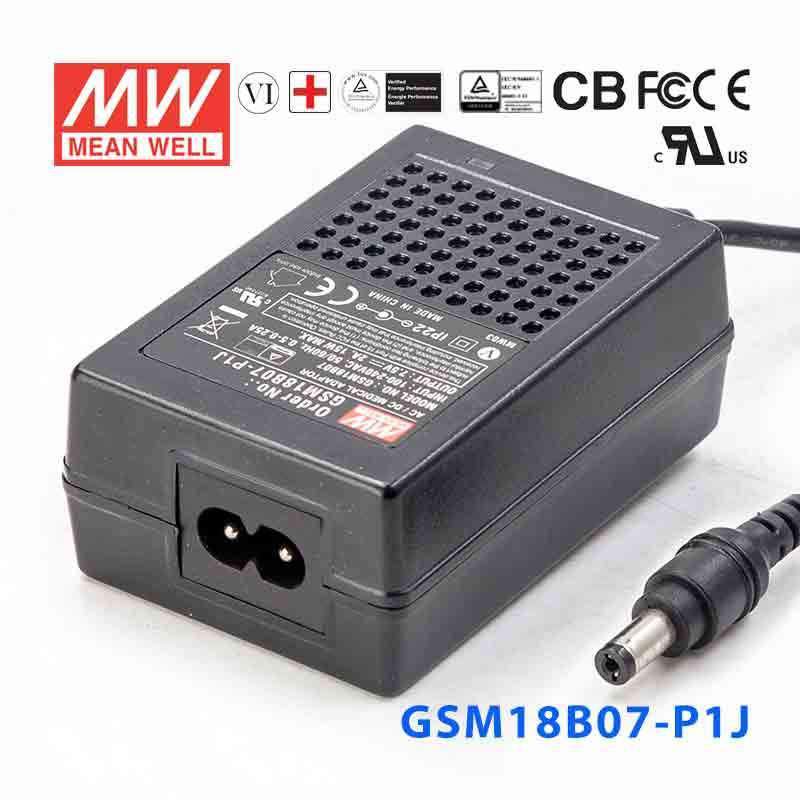

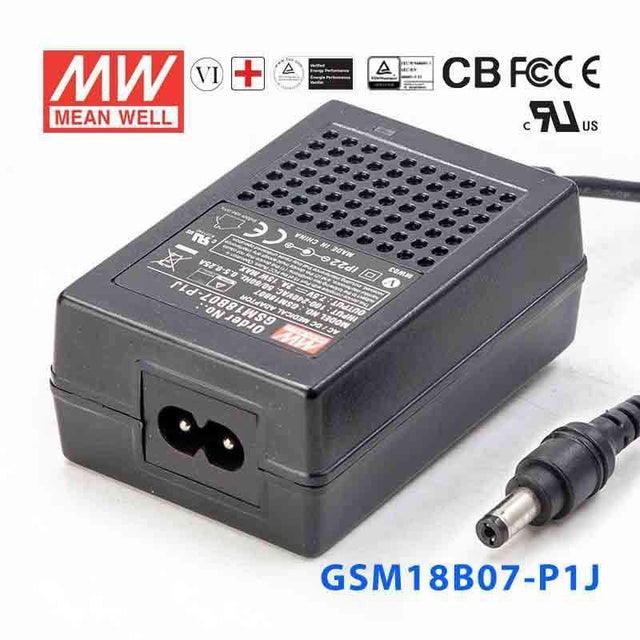

Mean Well GSM18B07-P1J Power Supply 15W 7.5V
The GSM18B07 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GSM18B07-P1J for a 7.5V embedded or industrial control device?
Yes, if the device is designed for 7.5V constant-voltage input and stays within 2A and 15W. That makes it suitable for lower-power embedded and control applications that specifically require 7.5V DC.
Is this 7.5V power supply appropriate for a small instrument or test device?
It can be a good fit for compact instruments or test equipment that need stable 7.5V output. Buyers should confirm the load remains within the unit's 2A maximum current and 15W power rating.
Can the GSM18B07-P1J power a 7.5V communications or interface module?
For a communications or interface module built around 7.5V constant-voltage input, this model can be used. The output is limited to 2A, so it is best suited to lighter-duty electronics rather than higher-power 7.5V loads.
What should I check before pairing this supply with a 7.5V device?
Confirm the device requires 7.5V DC constant voltage, then verify its maximum draw stays within 2A and 15W. Those are the key compatibility limits for this model.
Is the GSM18B07-P1J suitable for outdoor use or only sheltered locations?
The operating temperature is rated from -25°C to +60°C, which supports a range of ambient conditions. However, the specifications provided here do not include an IP rating, so outdoor exposure or wet-location suitability is not confirmed.
