Over 15 years experience of providing support of MEAN WELL Power Supplies
Description
Description
Features
Universal AC input / Full range |

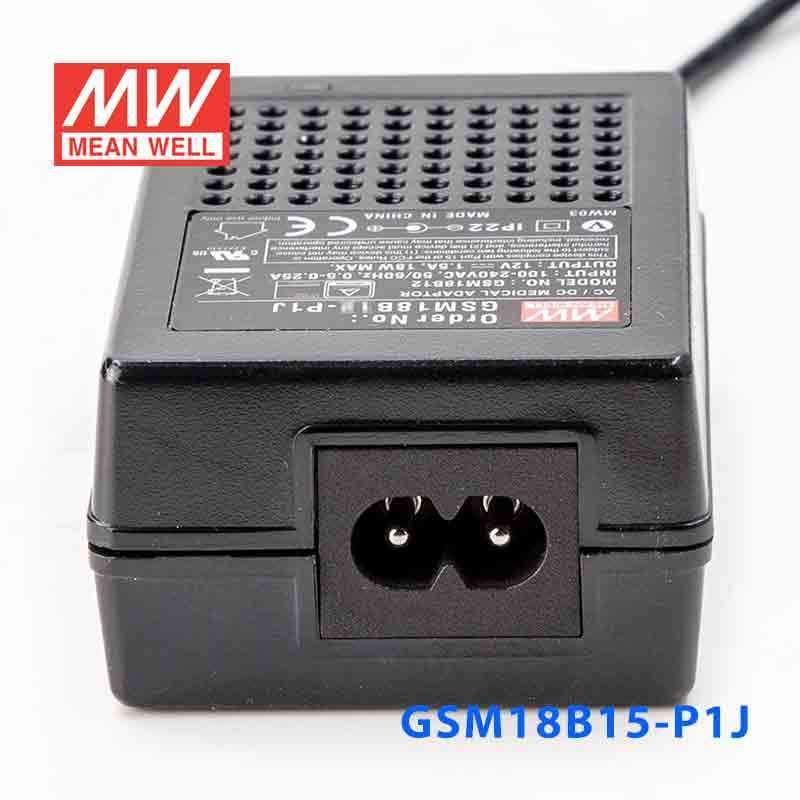

2 pole AC inlet IEC320-C8 |
Medical safety approved (2 x MOPP between primary to secondary) |
Low leakage current <50uA |
No load power consumption < 0.1W |
High efficiency up to 88% |
Class II power (without earth pin) |
Protections: Short circuit / Overload / Over voltage |
Fully enclosed plastic case |
LED indicator for power on |
Optional lock type DC plug |
100% full load burn-in test |
3 years warranty |
General Specification
AC input voltage range | 80~264VAC ; 113~370VDC |
AC inrush current (max.) | Cold start, 55A at 230VAC |
Overload protection | 105%~170% rated output voltage, hiccup mode, auto-recovery |
Withstand voltage | I/P-O/P: 4kVAC |
Working temperature | -25~+60°C (refer to output derating curve ) |
Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
Length of output cable | 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 18AWG for 12~48V |
Dimension (LxWxH) | 79x 54x 33 mm |
Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage15 Volt
-
Rated Current1.2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
