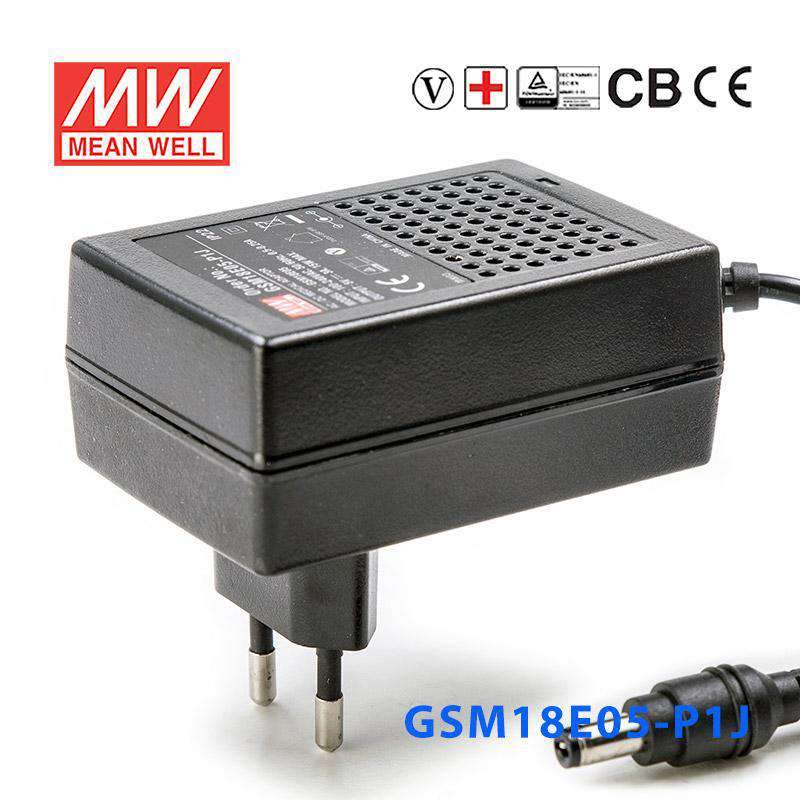

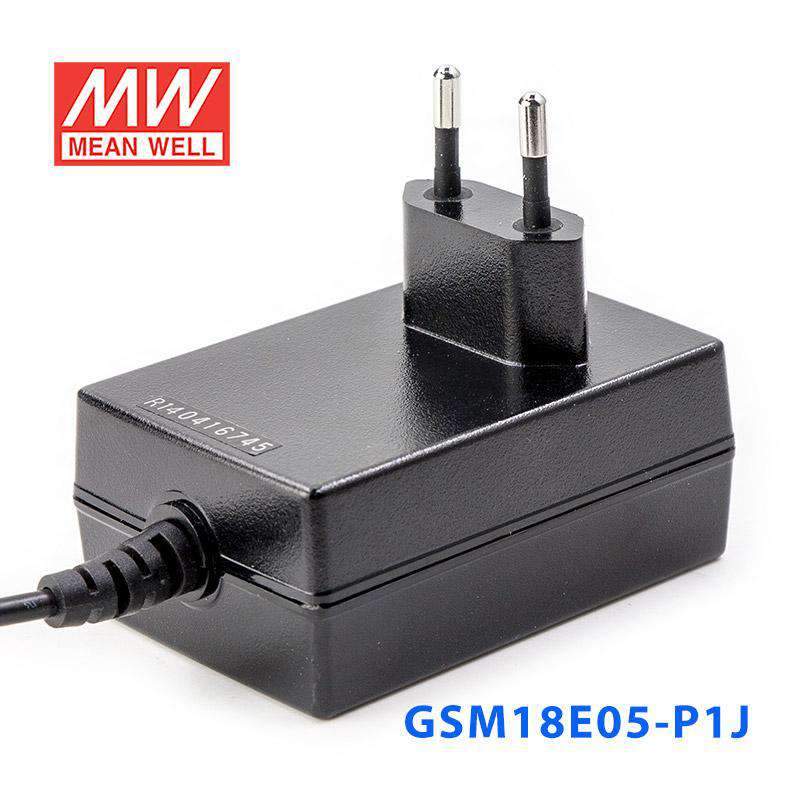

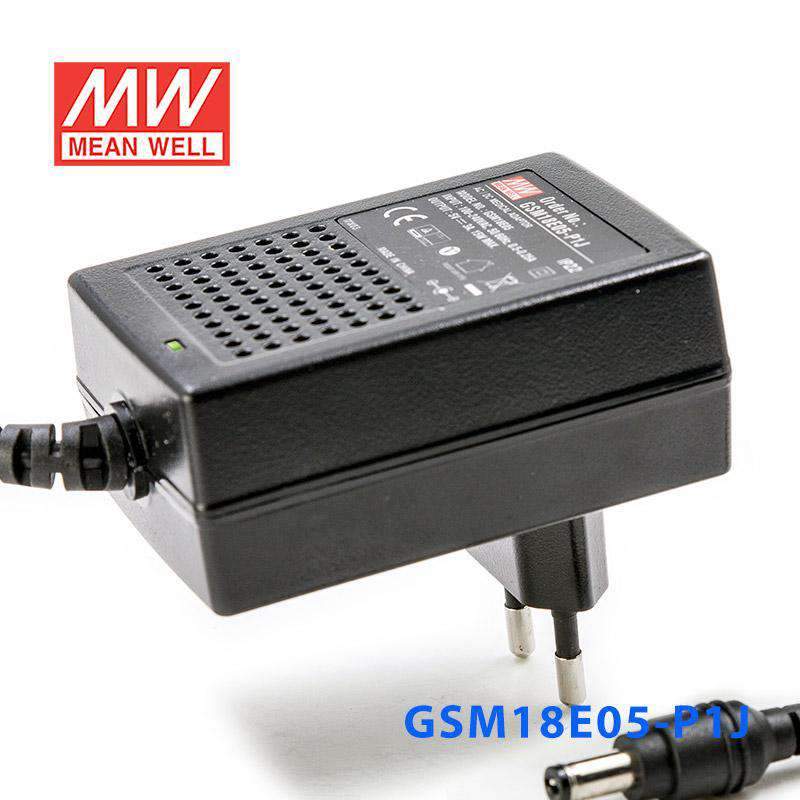

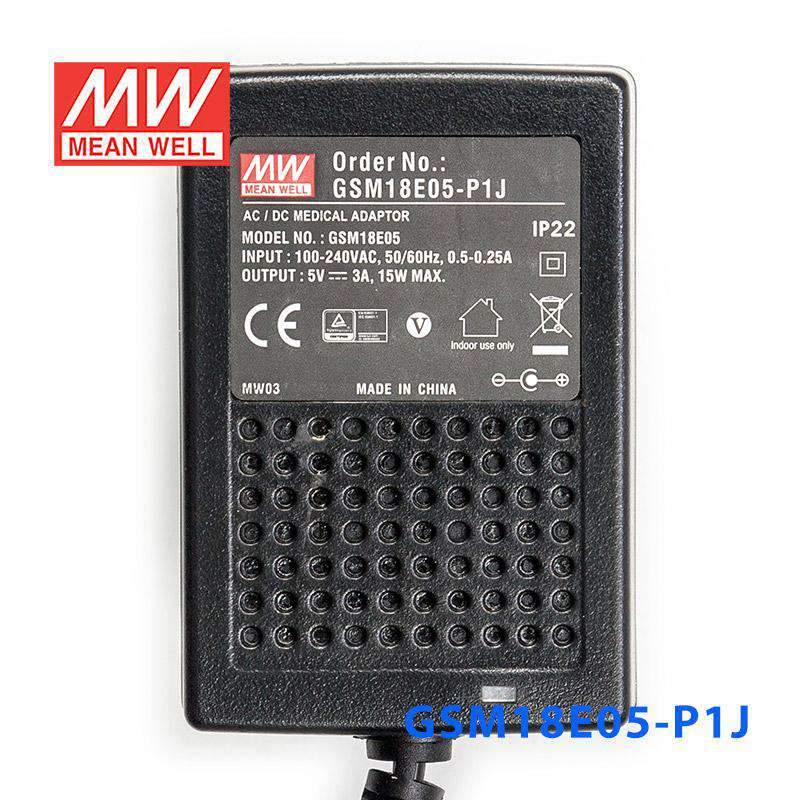

Mean Well GSM18E05-P1J Power Supply 15W 5V
Description
Description
Features
| Universal AC input / Full range |
| 2 pole EURO plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 88% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Energy efficiency Level VI |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| Overload protection | 105%~170% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4KVAC |
| Working temperature | -25~+60°C (refer to output derating curve ) |
| Safety standards | TUV EN60601-1,EN60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3 |
| Length of output cable | 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 18AWG for 12~48V |
| Dimension (LxWxH) | 79x54x 33mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM18E05-P1J to power a 5V industrial controller or embedded board?
Yes, if the device requires a constant 5V DC supply and its load stays within 3A. This model is rated for 15W with constant voltage output, which fits low-voltage embedded, controller, and logic-level equipment that is designed for 5V input.
Is the GSM18E05-P1J suitable for a 5V sensor hub or small automation interface?
It can be a fit for 5V sensor hubs, compact automation interfaces, or low-power monitoring devices that need regulated 5V DC. The key check is that the total connected load does not exceed 3A or 15W.
Can this 5V power supply run a single-board computer or industrial USB device?
It may work for a single-board computer or industrial USB-powered device when the equipment specifically calls for 5V DC and stays within the 3A output limit. The wide 80-264VAC input also makes it easier to use in different AC power environments.
Would the GSM18E05-P1J work for a compact 5V HMI, display, or test accessory?
Yes, it is suitable for compact 5V displays, operator interfaces, or bench accessories that use constant 5V DC and draw no more than 3A. At 79.0 x 54.0 x 33.0 mm and 0.2 kg, it is also compact for space-limited equipment areas.
Is the GSM18E05-P1J suitable for outdoor or harsh-environment use?
The listed specs show an operating temperature range of -25°C to +60°C, so temperature capability is defined for a broad range of conditions. An IP rating is not listed in the provided specs, so outdoor, wet, or dust-exposed use should only be considered if the final enclosure provides the required protection.
