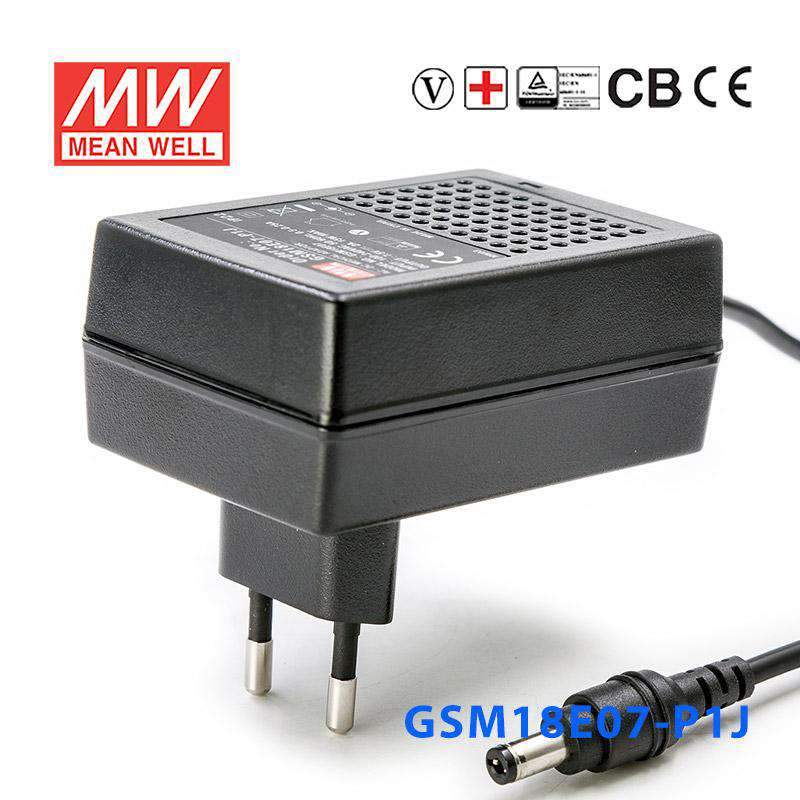

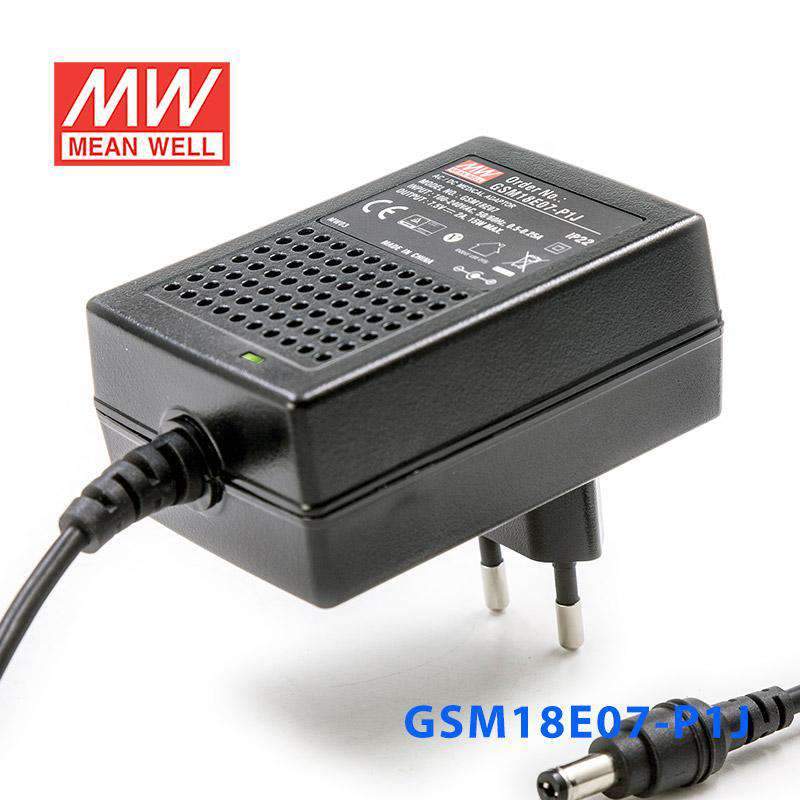

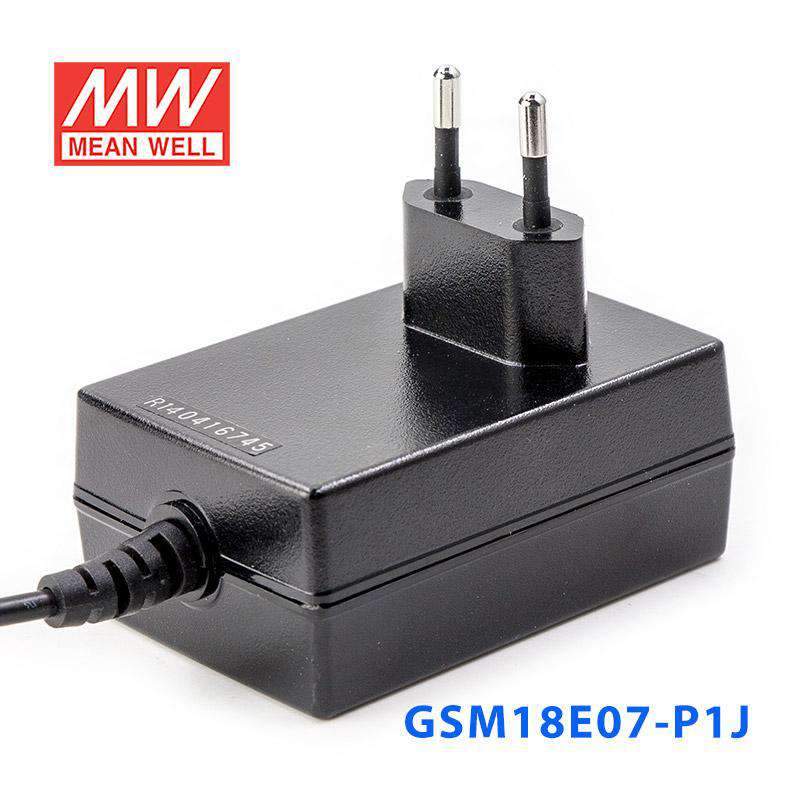

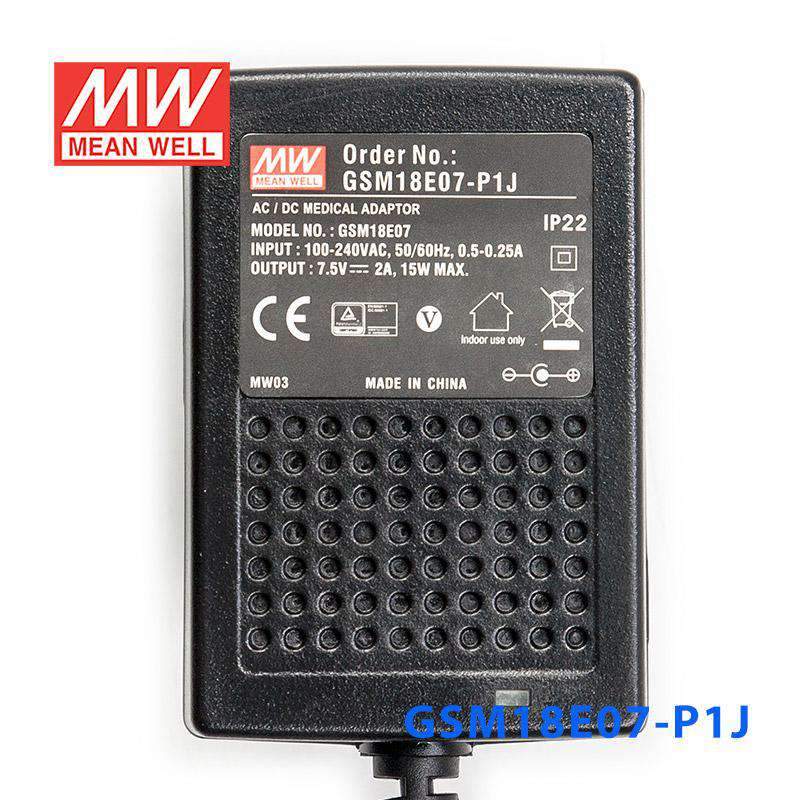

Mean Well GSM18E07-P1J Power Supply 15W 7.5V
The GSM18E07 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM18E07-P1J for 7.5V industrial or embedded equipment?
Yes, if the equipment is designed for constant 7.5V DC input and draws no more than 2A. This model provides 15W total output, which suits low-power embedded and industrial electronics that specifically require 7.5V.
Is this power supply a good fit for a 7.5V test instrument or handheld dock?
It can be used for a test instrument, charging dock, or support device that requires regulated 7.5V DC and stays within the 2A output rating. The constant voltage output is important for equipment that expects a fixed DC input rather than current regulation.
Can the GSM18E07-P1J power a 7.5V control module or communications accessory?
Yes, it is appropriate for 7.5V control modules, communications accessories, or compact electronics that match the 7.5V output and do not exceed 15W. It also accepts 80-264VAC input, which supports use across a wide AC input range.
Would this model work for small 7.5V audio or signal-processing equipment?
It may be suitable if the equipment requires constant 7.5V DC and its current demand remains at or below 2A. Matching the voltage exactly is critical here, because this model is fixed at 7.5V output.
Can the GSM18E07-P1J be used outdoors or in cold rooms?
Its specified operating range is -25°C to +60°C, so it can handle a broad temperature window where that range matches the application. The provided specs do not list an IP rating, so exposed outdoor use should depend on the protection provided by the surrounding enclosure.
