Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

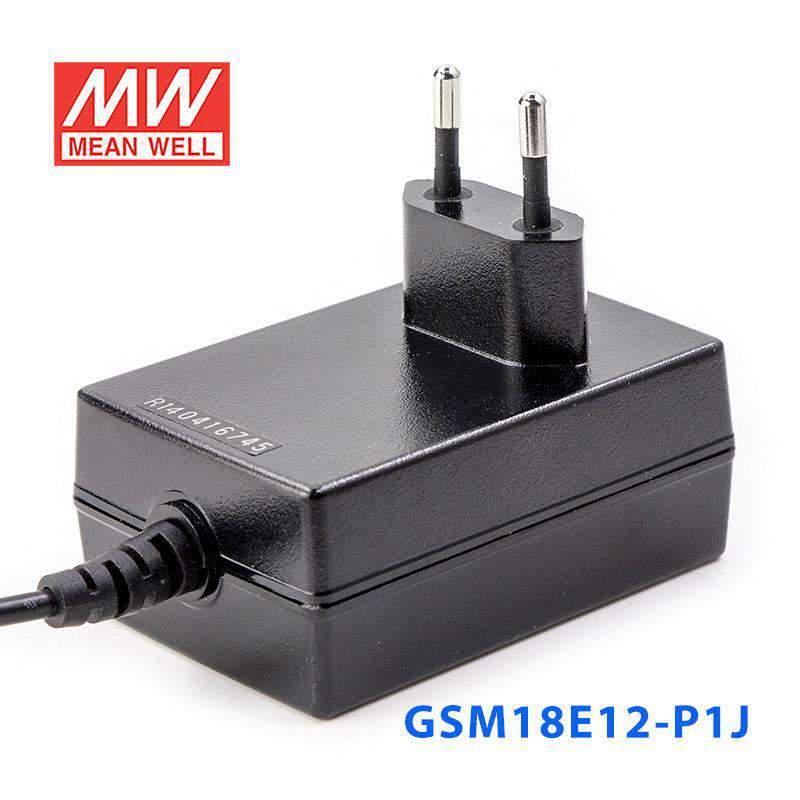

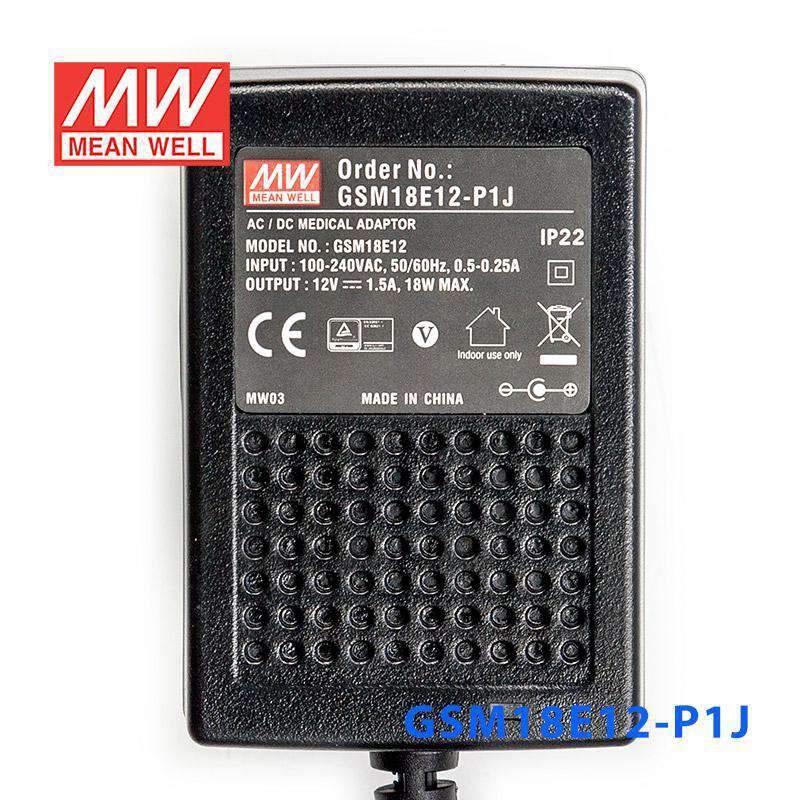

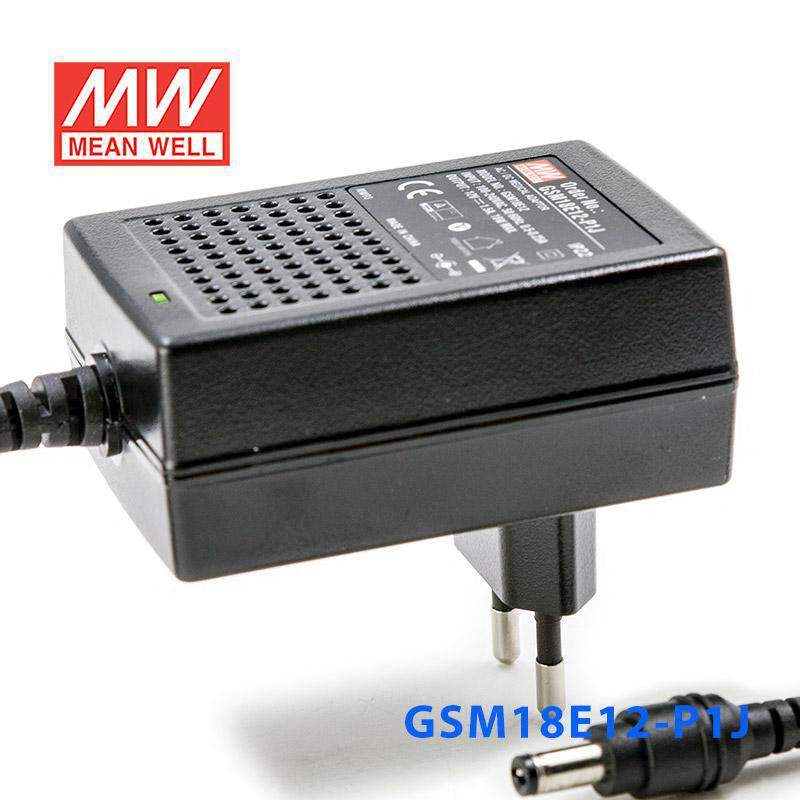

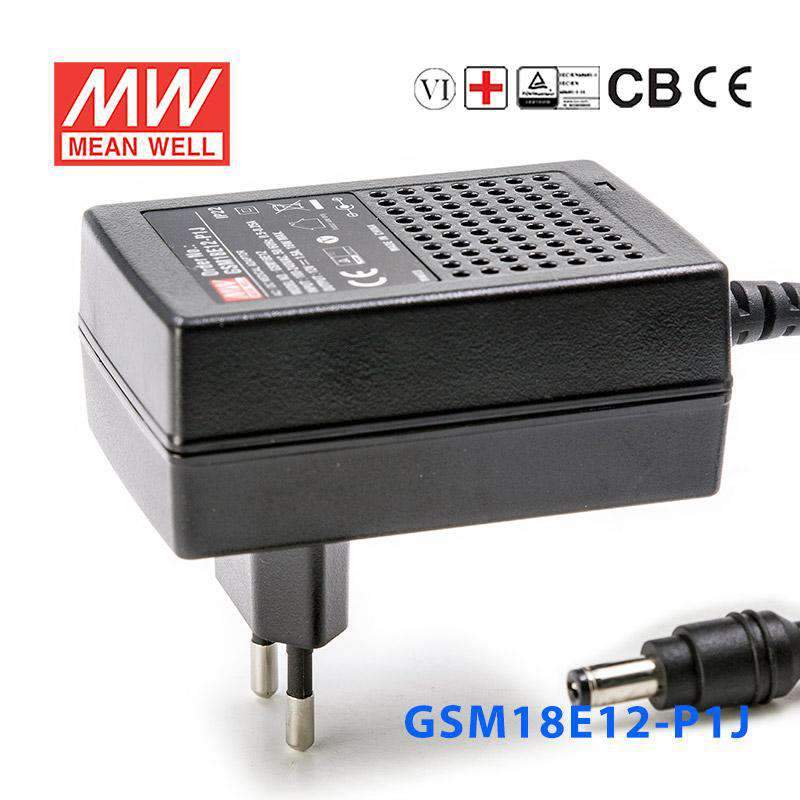

Mean Well GSM18E12-P1J Power Supply 18W 12V
The GSM18E12 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage12 Volt
-
Rated Current1.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM18E12-P1J for a 12V sensor, relay, or control device?
Yes, if the equipment requires constant 12V DC and the total load does not exceed 1.5A. With 18W output, this model fits many small 12V control, sensing, and relay-driven applications.
Is this 12V power supply suitable for a compact CCTV or access-control component?
It can be suitable for 12V security, access, or monitoring components when the device is rated for 12V DC input and draws no more than 1.5A. The constant voltage output is appropriate for electronics that expect a fixed 12V supply.
Would the GSM18E12-P1J work for a 12V automation panel accessory?
Yes, it may be used for small panel accessories, interface modules, or low-power automation components that need regulated 12V DC. The load still needs to remain within the 18W and 1.5A ratings.
Can this model power a 12V modem, router accessory, or embedded terminal?
It may be a fit for 12V communications or embedded equipment if the input requirement is 12V DC and the current draw stays at or below 1.5A. Its 80-264VAC input range also supports use in varied AC supply environments.
Is the GSM18E12-P1J suitable for outdoor use?
The operating temperature range is listed as -25°C to +60°C, which defines the allowed temperature window. The provided specs do not include an IP rating, so direct outdoor exposure should not be assumed without an enclosure that provides the necessary environmental protection.
