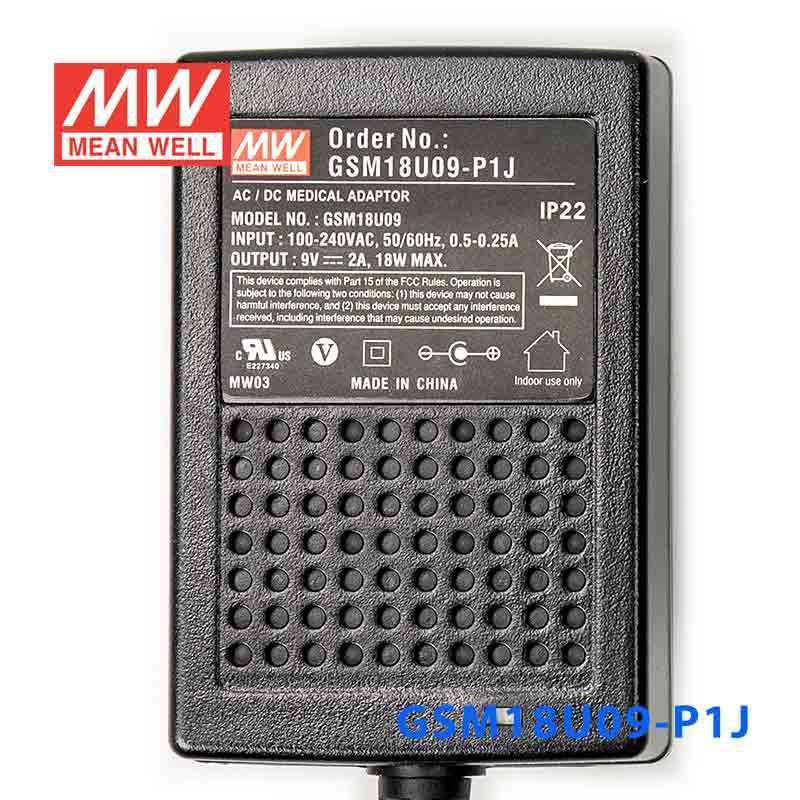

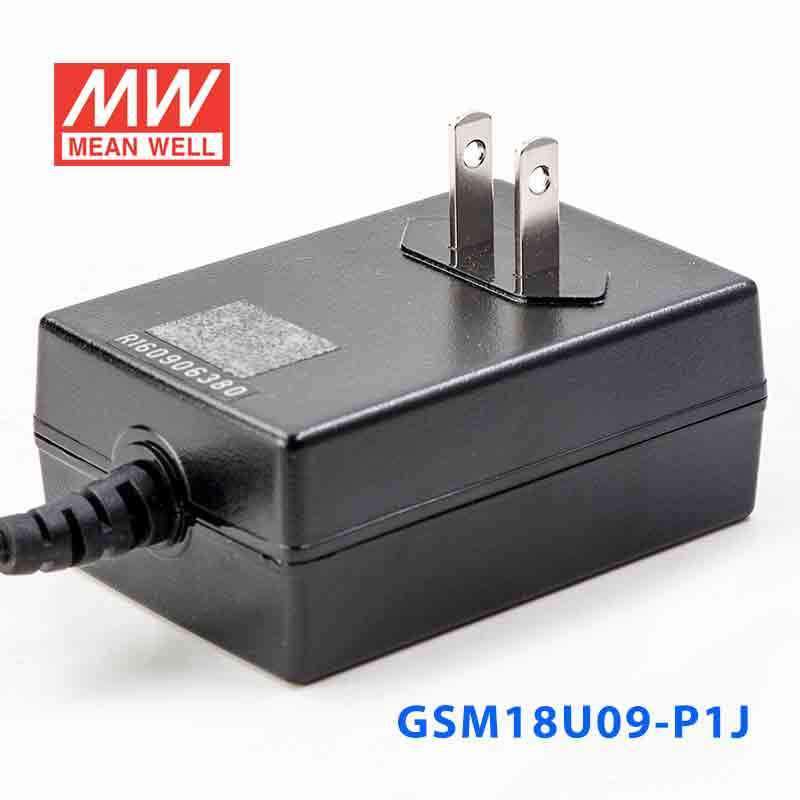

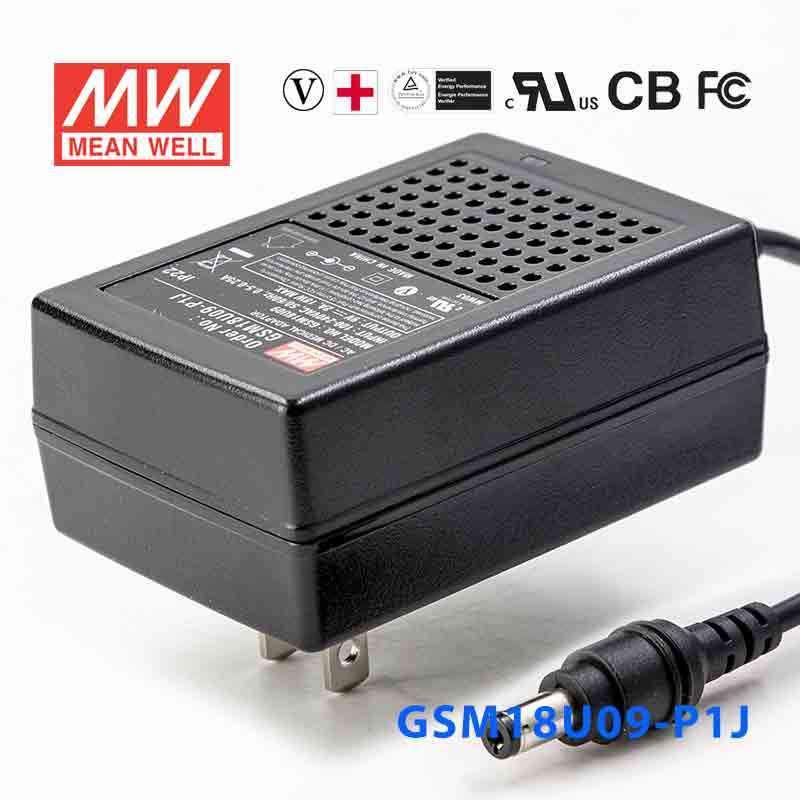

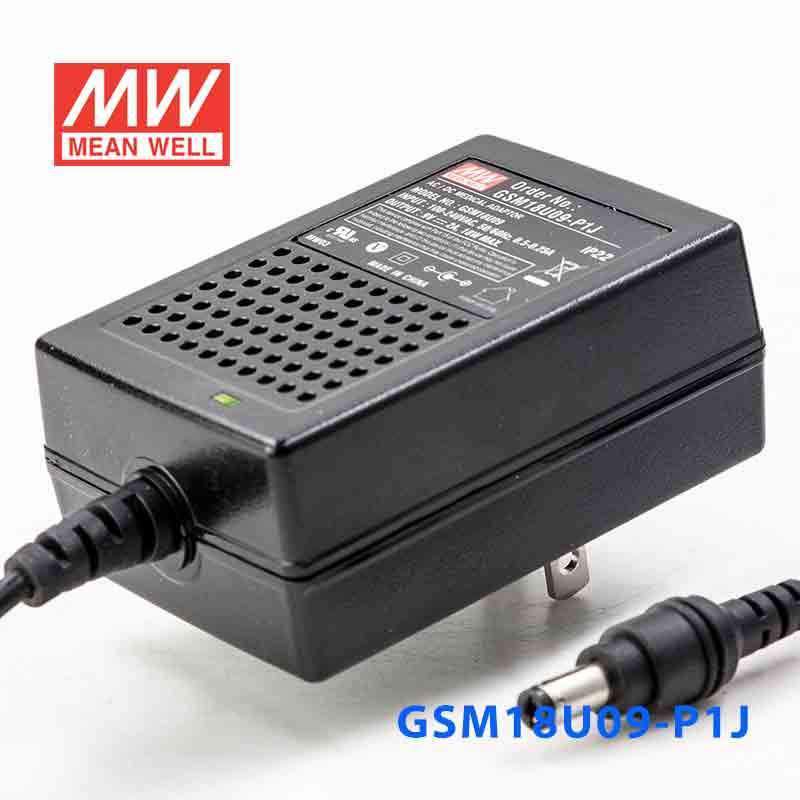

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well GSM18U09-P1J Power Supply 18W 9V
The GSM18U09 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage9 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.41 lb
::specification::
Frequently Asked Questions
Can I use the GSM18U09-P1J for a 9V industrial sensor or small control module?
Yes, this model provides constant voltage output at 9V with up to 2A and 18W available. It is a fit for industrial or embedded equipment that specifically requires regulated 9V DC and stays within that current and power limit.
Is this 9V power supply suitable for embedded electronics or evaluation hardware?
It can be suitable for embedded boards, test fixtures, and low-power control electronics that call for 9V constant voltage. The key match points are the 9V output, 2A maximum output current, and 18W power rating.
Can the GSM18U09-P1J power a small automation interface or data-collection device?
It is intended for constant-voltage 9V loads, so it can work with compact automation or monitoring devices rated for 9V DC. The connected load needs to remain within 18W and 2A.
Is the GSM18U09-P1J appropriate for outdoor or harsh-environment use?
The published operating temperature range is -25°C to +60°C, which defines its temperature envelope. No IP rating is listed in the provided specs, so these specifications do not by themselves confirm outdoor, wet-location, or washdown suitability.
