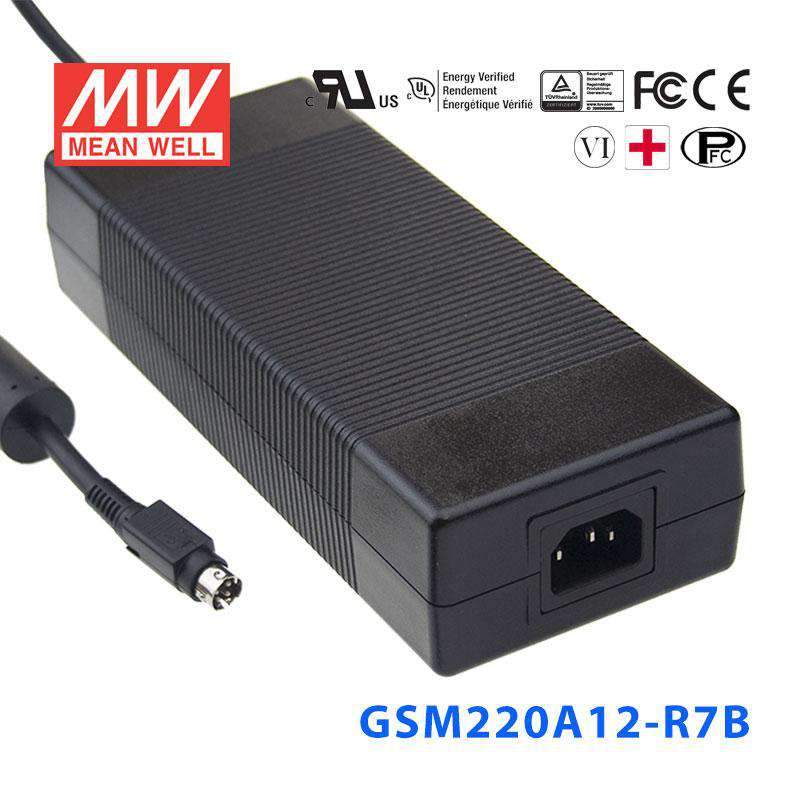

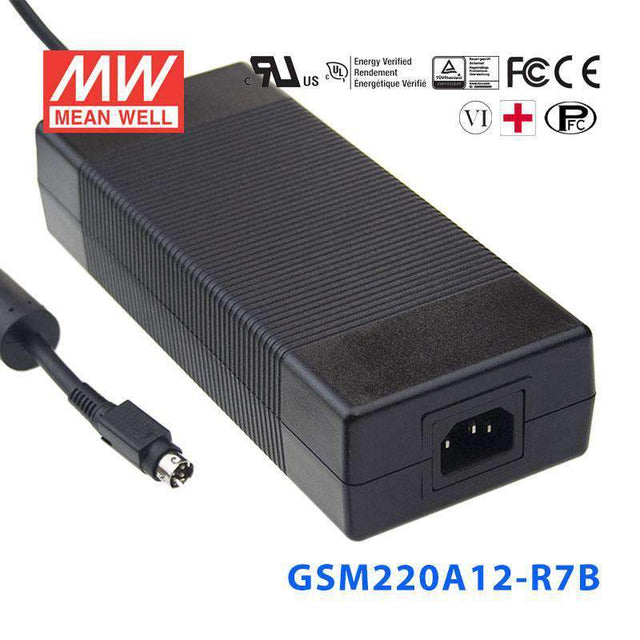

Mean Well GSM220A12-R7B Power Supply 180W 12V
The GSM220A12 is a 220W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating180 Watt
-
Output Voltage12 Volt
-
Rated Current15 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the GSM220A12-R7B for 12V industrial automation equipment?
Yes, this model is a constant-voltage 12V supply rated for 180W and 15A, which makes it suitable for higher-current 12V automation loads within those limits. It fits 12V control hardware, industrial accessories, and embedded systems that need substantial current at a fixed 12V output.
Is the GSM220A12-R7B a good fit for 12V embedded systems or test equipment?
It can be used for 12V embedded platforms, lab fixtures, or bench-style industrial equipment that needs up to 15A at 12V. The 80-264VAC input is useful when the equipment may be deployed in different AC power regions.
Can this power supply support 12V IT or communications hardware with heavier current draw?
It is suitable for 12V constant-voltage IT or communications devices when the load stays within 180W and 15A. That makes it more appropriate for higher-demand 12V equipment than smaller wall-plug supplies.
How do I size the GSM220A12-R7B for a 12V load?
Use it with equipment that requires 12V constant-voltage input and draws no more than 15A, with total power up to 180W. If the connected load exceeds either 15A or 180W, this model is not large enough.
Can the GSM220A12-R7B be used in demanding temperature conditions?
The listed operating range is -30°C to +70°C, which supports use across a wide temperature span. No IP rating is provided, so the specs do not confirm suitability for direct outdoor exposure or washdown-type environments.
