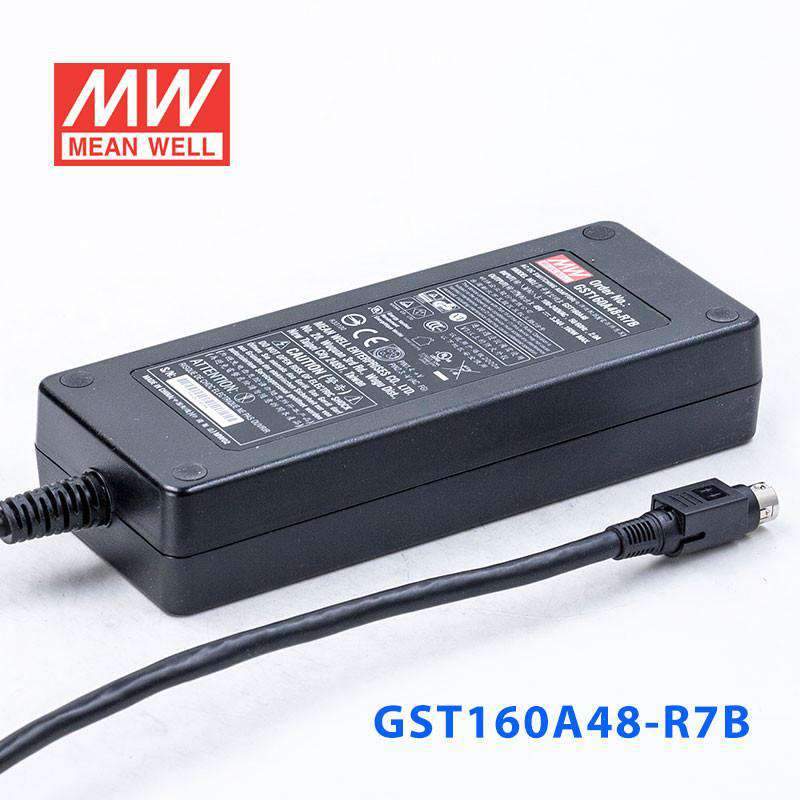

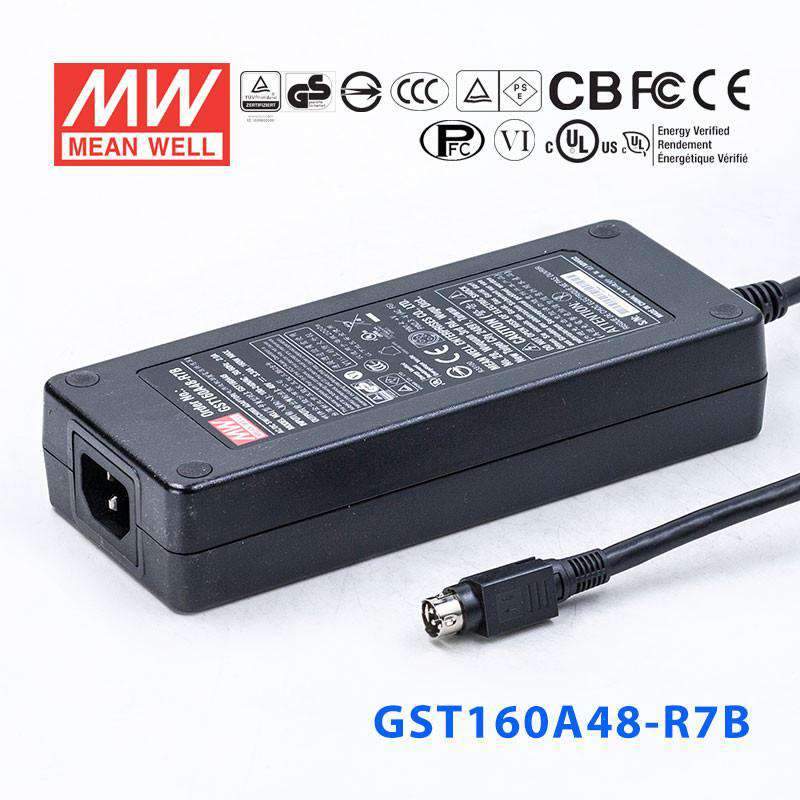

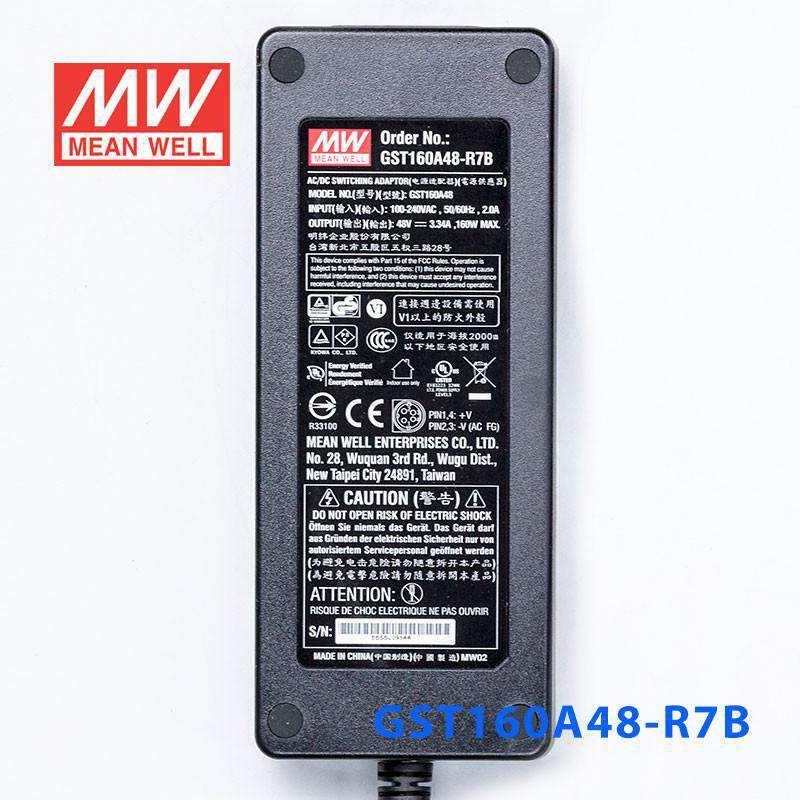

Mean Well GST160A48-R7B Power Supply 160W 48V
The GST160A48 is a 160W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: EN62368-1, BSMI CNS14336, CCC GB4943.1, PSE J62368-1 BIS IS13252, KC K60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating160 Watt
-
Output Voltage48 Volt
-
Rated Current3.34 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well GST160A48-R7B?
The GST160A48-R7B is a 160W desktop AC/DC power supply with a 48V DC output. Its rated output current is 3.34A, making it suitable for equipment that requires a regulated 48V supply within that power range.
What kind of DC output connector does this model use?

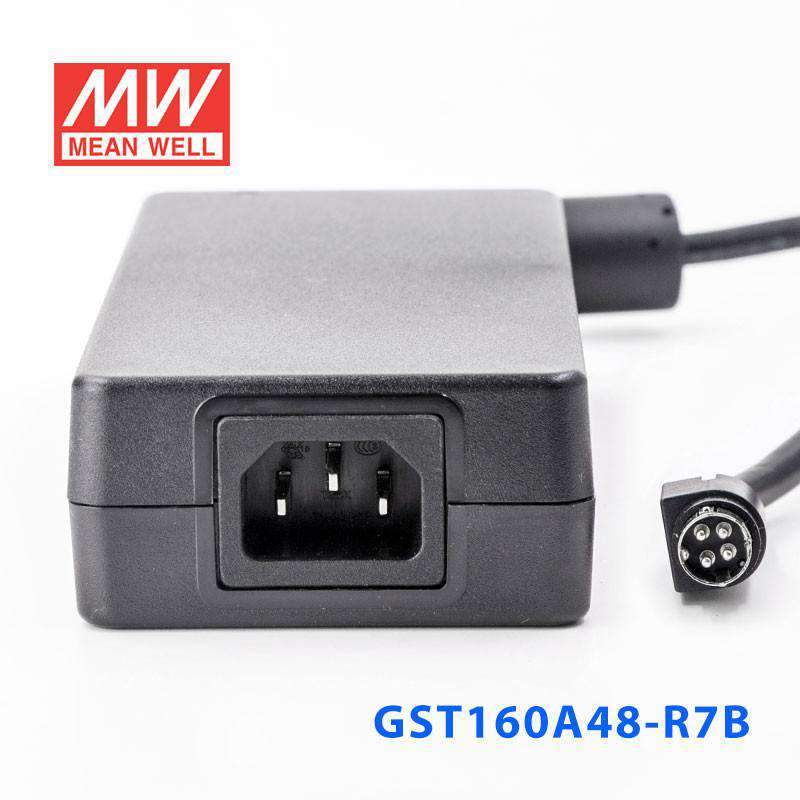

This version uses the R7B output option, which is a Power DIN 4P plug with a lock type design. That connector style is specific to this model variant, so buyers should confirm their equipment is designed for the same mating connector.
Is the GST160A48-R7B suitable for international AC input ranges?
Yes. It accepts a universal AC input range of 85 to 264VAC, and it also supports 120 to 370VDC input. This makes it appropriate for use across regions with different standard mains voltages, provided the overall application and approvals match local requirements.
Can this power supply be used in demanding temperature environments?
The specified working temperature range is -30°C to +70°C. That wide range makes it a practical choice for industrial and commercial equipment that may operate in colder or hotter environments than typical office electronics.
What protection features are included in the GST160A48-R7B?
This model includes protection against short circuit, overload, over voltage, and over temperature conditions. Its overload protection uses hiccup mode with auto-recovery, while over-voltage protection requires re-powering to recover after shutdown.
How energy efficient is this power supply?
The GST160A48-R7B is rated to Energy Efficiency Level VI and has no-load power consumption below 0.15W. It also meets EISA 2007 requirements and is listed as NRCan and MEPS compliant, which helps buyers looking for lower standby power and regulatory alignment.
What physical format and size does this model have?

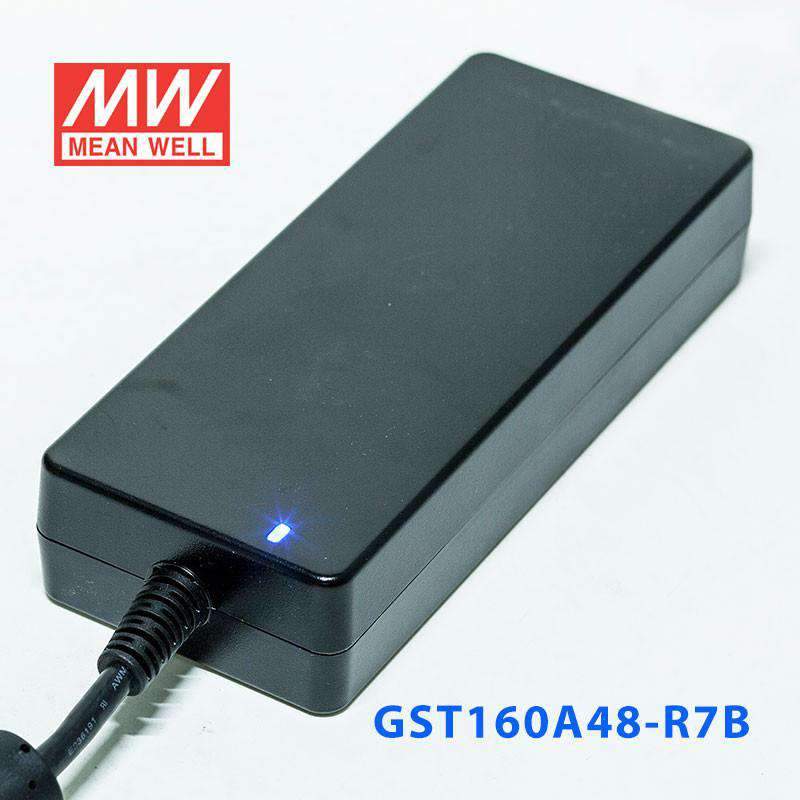

This is a fanless desktop-style enclosed power supply in a plastic case. Its dimensions are 175 x 72 x 35 mm, and the output cable length is specified as 120 cm.
