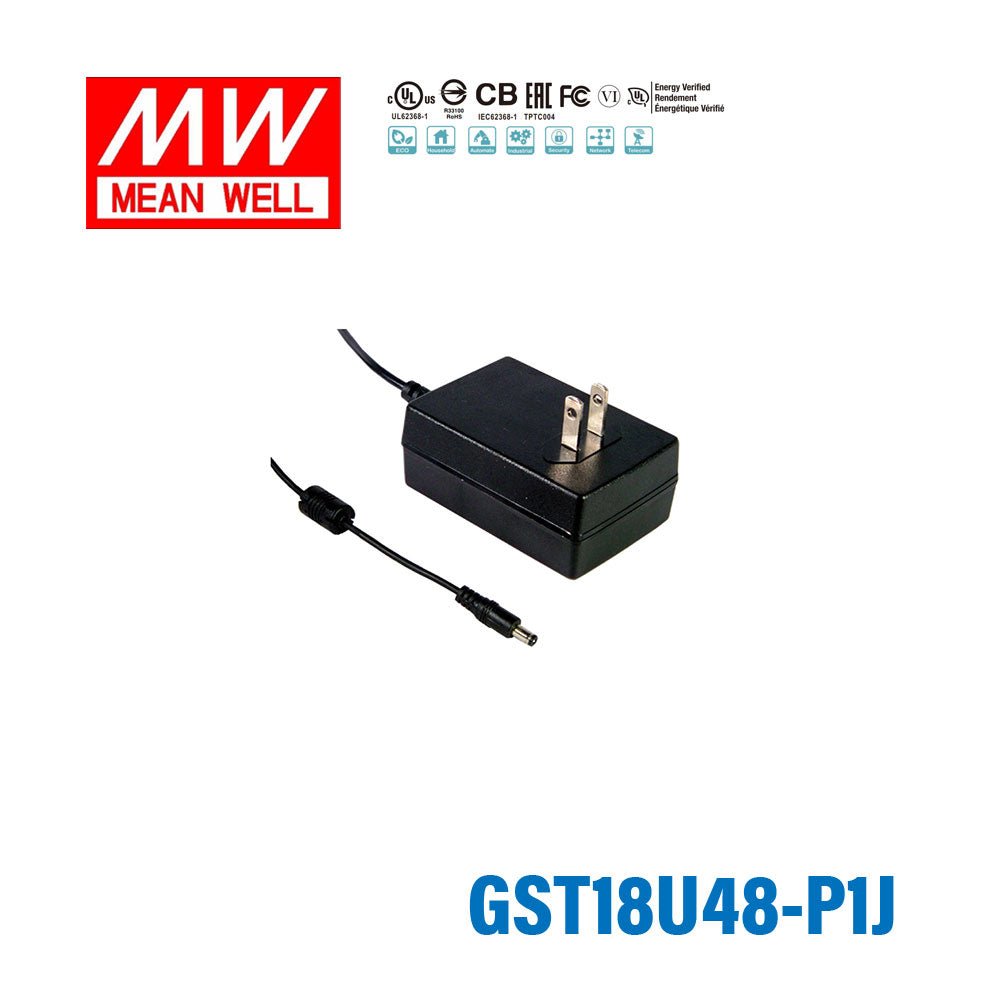

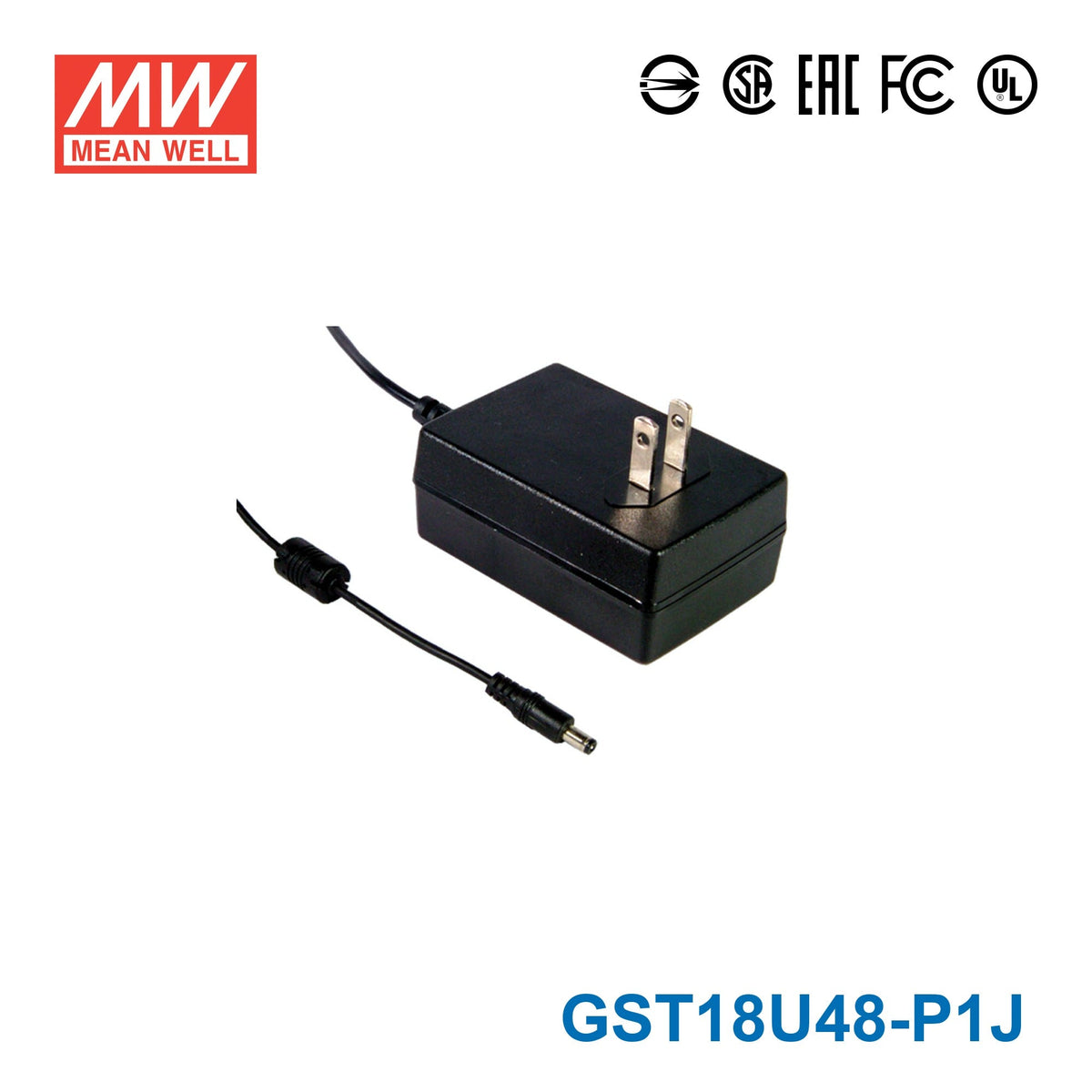

Mean Well GST18U48-P1J Power Supply 18W 48V 375mA

The Mean Well GST18U48-P1J is a 18W wall-mounted AC-DC green industrial adaptor delivering a regulated 48VDC at 375mA. It is a class II unit with no functional earth, fitted with a 2-pole USA AC plug and a P1J tuning-fork DC plug (2.1 x 5.5 x 11mm, centre positive). Safety is approved to UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1 and EAC TP TC 004, with FCC Part 15 and CAN ICES-3(B) Class B emissions.

It accepts the full 85~264VAC input range at 47~63Hz, reaches 89% typical efficiency and draws under 0.075W at no load, meeting energy efficiency level VI along with USA EISA 2007/DoE and Canada NRCan. Short circuit, overload and over voltage protections are built in, and the 94V-0 flame retardant enclosure provides double insulation for operation from -30 to +70°C.

Key Features

• ✓ 18W wall-mounted adaptor, 48VDC 375mA constant voltage output
• ✓ Universal AC input 85~264VAC full range, 47~63Hz
• ✓ 2-pole USA AC plug, class II power unit (no FG)
• ✓ P1J DC plug: 2.1 x 5.5 x 11mm tuning fork, centre positive
• ✓ Output ripple and noise 150mVp-p max., voltage tolerance ±2.0%
• ✓ 89% typical efficiency
• ✓ No load power consumption below 0.075W
• ✓ Energy efficiency level VI, complies with EISA 2007/DoE and NRCan
• ✓ Protections: short circuit / overload / over voltage
• ✓ Fully enclosed 94V-0 flame retardant plastic case with double insulation
• ✓ Pass LPS
• ✓ -30 ~ +70°C wide range working temperature
• ✓ LED indicator for power on
• ✓ UL1185 18AWG 1800mm output cable
• ✓ Various DC plug quick adapter accessories available (sold separately)
• ✓ Safety approvals: UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1, EAC TP TC 004
• ✓ 3 years warranty

• Brand
  Mean Well
• Series
  GST Series
• Power Rating
  18 Watt
• Output Voltage
  48 Volt
• Rated Current
  0.37 Ampere
• Input Voltage
  85V~264V
• No of Output
  1
• Dimming Control
  Non Dimmable
• Standards Met
  BSMI,CSA,EAC,FCC,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~70°C
• Warranty
  3 Year
• Length
  3.11 in
• Width
  2.13 in
• Height
  1.3 in
• Weight
  0.44 lb
