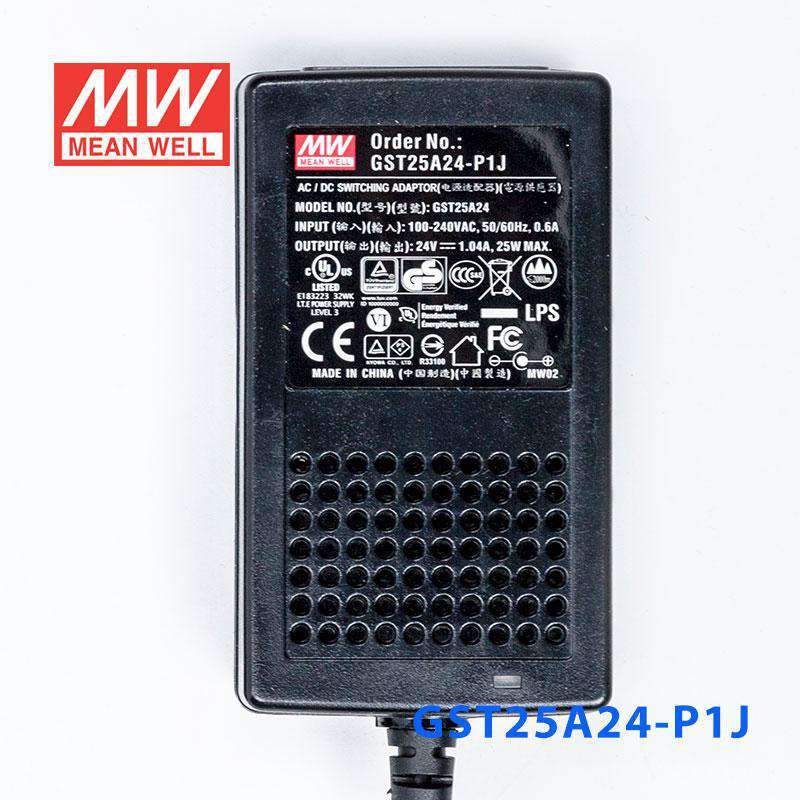

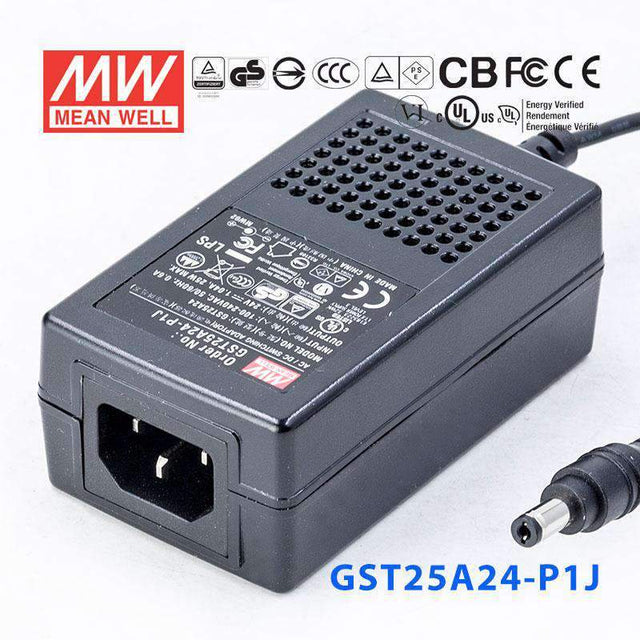

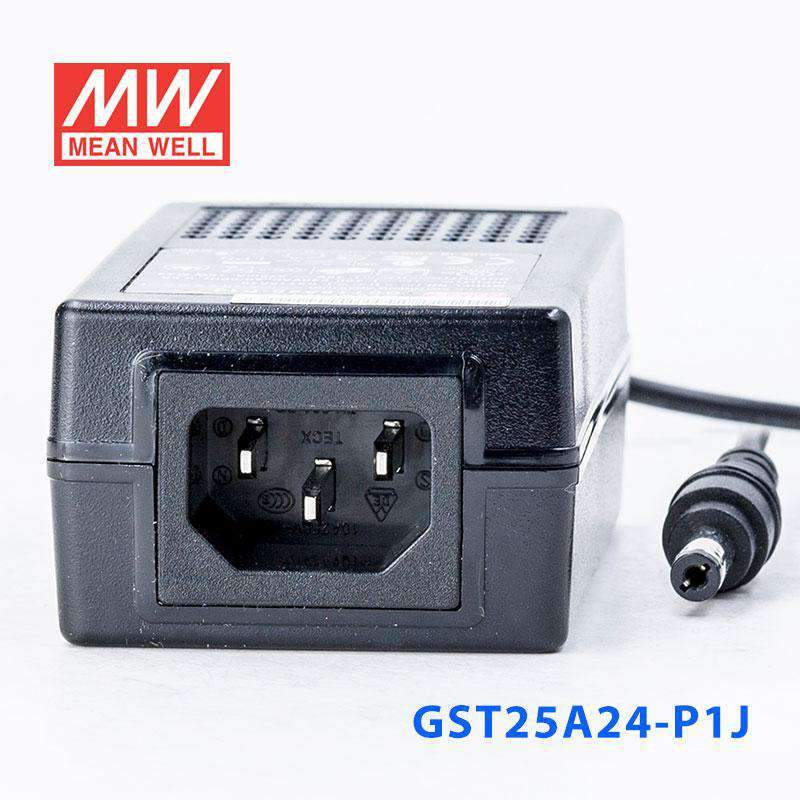

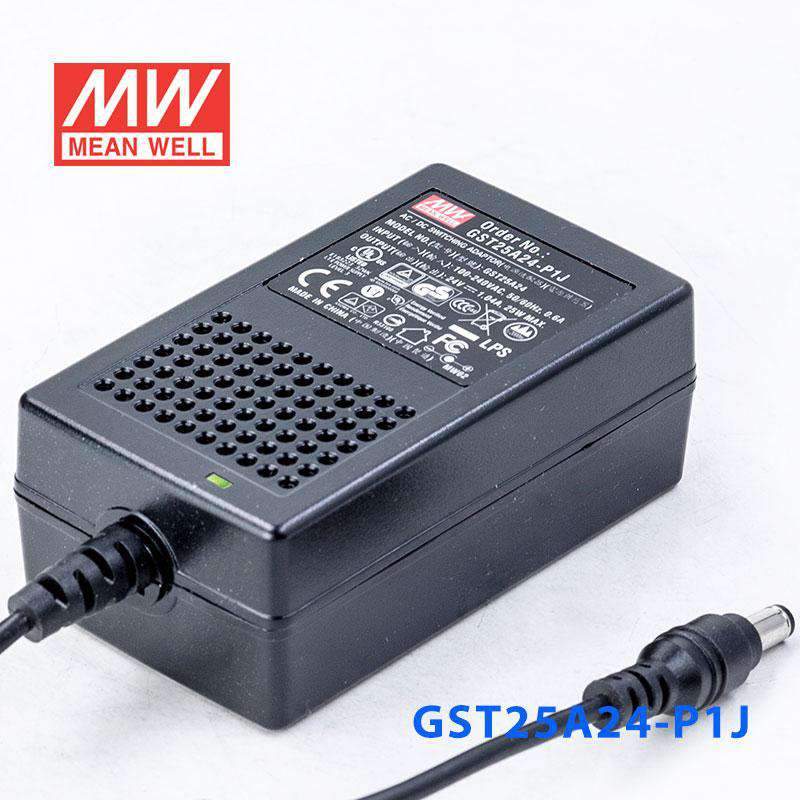

Mean Well GST25A24-P1J Power Supply 25W 24V
The GST25A24 is a 25W Mean Well power converter.
Key Features
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating25 Watt
-
Output Voltage24 Volt
-
Rated Current1.04 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.66 in
-
Width2.13 in
-
Height1.42 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the GST25A24-P1J for a 24V industrial control or automation device?
Yes, this is a 24V constant voltage power supply rated for 25W and 1.04A. It fits industrial or automation equipment that specifically requires 24V DC and stays within that 1.04A output limit.
Is the GST25A24-P1J suitable for 24V embedded electronics or test equipment?
It can be used for embedded or bench equipment that needs a regulated 24V constant voltage source. The available output is 25W total, with a maximum current of 1.04A.
Can this 24V power supply run small 24V sensors, relays, or interface modules?
It is appropriate for 24V DC loads such as control accessories or interface hardware when the combined demand does not exceed 25W or 1.04A. Because it is a constant voltage model, the load should be designed for 24V input.
What is the difference between the GST25A24-P1J and GST25A24-P1M?
Based on the listed series data, the sibling model is GST25A24-P1M. The GST25A24-P1J itself is rated at 24V output, 1.04A, 25W, with 85-264VAC input, 93.0 x 54.0 x 36.0 mm dimensions, 0.209 kg weight, and a -30°C to +70°C operating temperature range.
Is the GST25A24-P1J suitable for outdoor or cold-temperature environments?
Its operating temperature range is -30°C to +70°C, so it is specified for both low and high ambient temperatures within that range. No IP rating is listed in the provided specs, so outdoor or wet-location suitability is not specified by this data.
