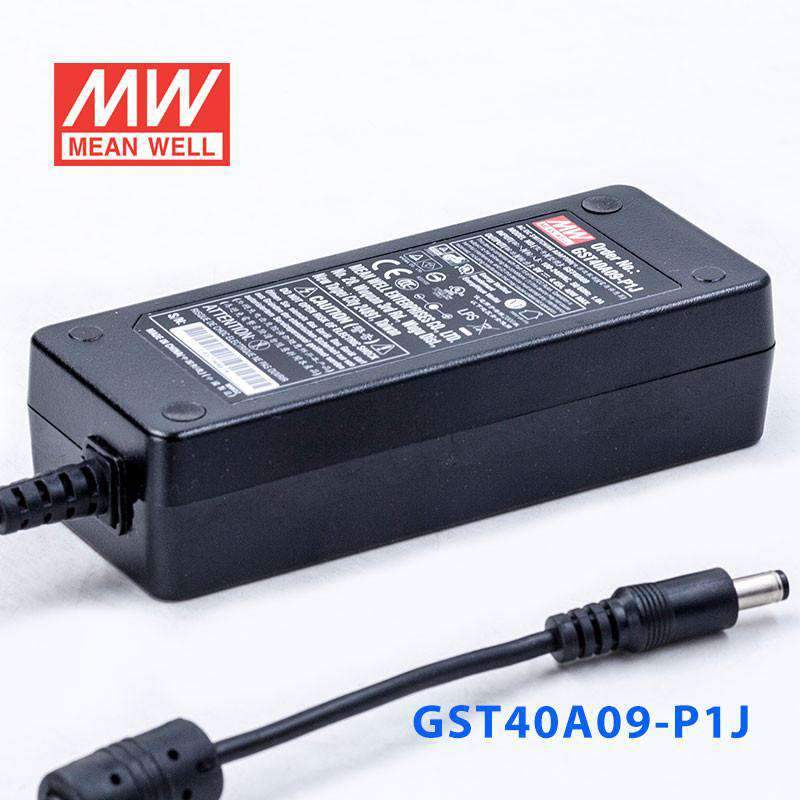

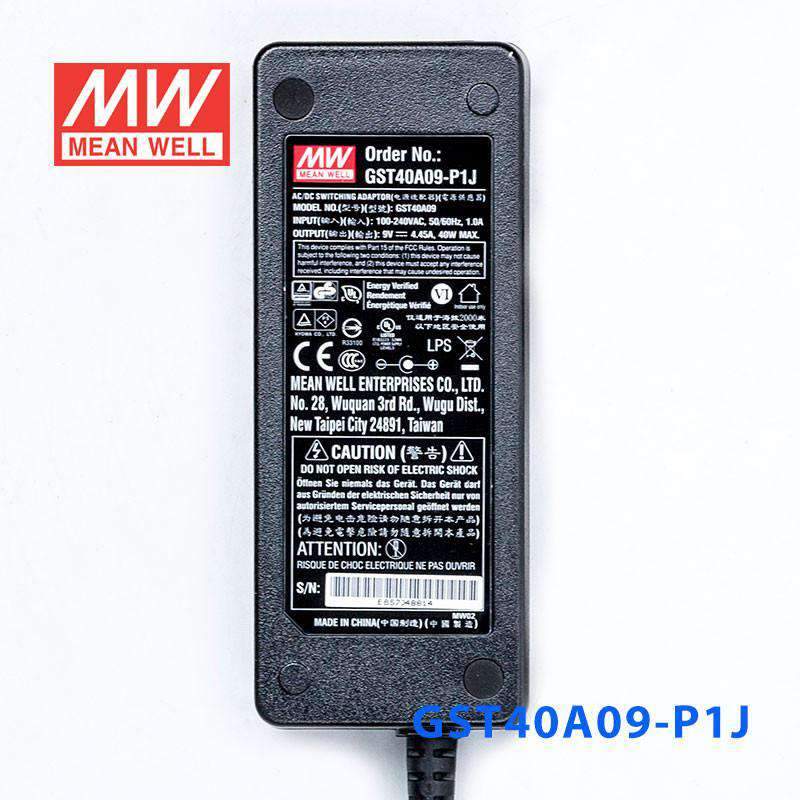

Mean Well GST40A09-P1J Power Supply 40W 9V

$18.01 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption < 0.3W
Energy efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant

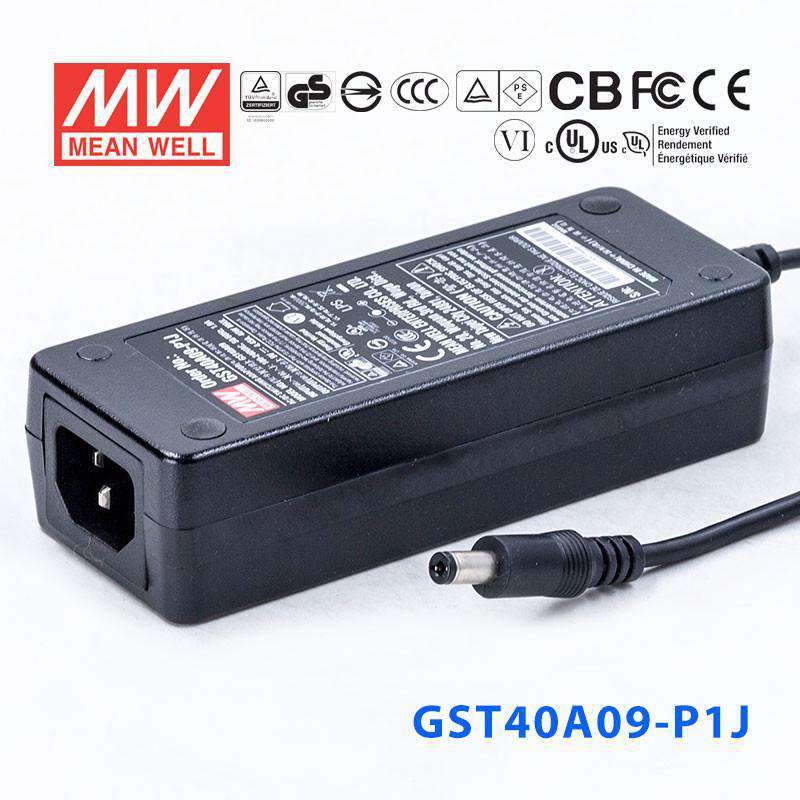

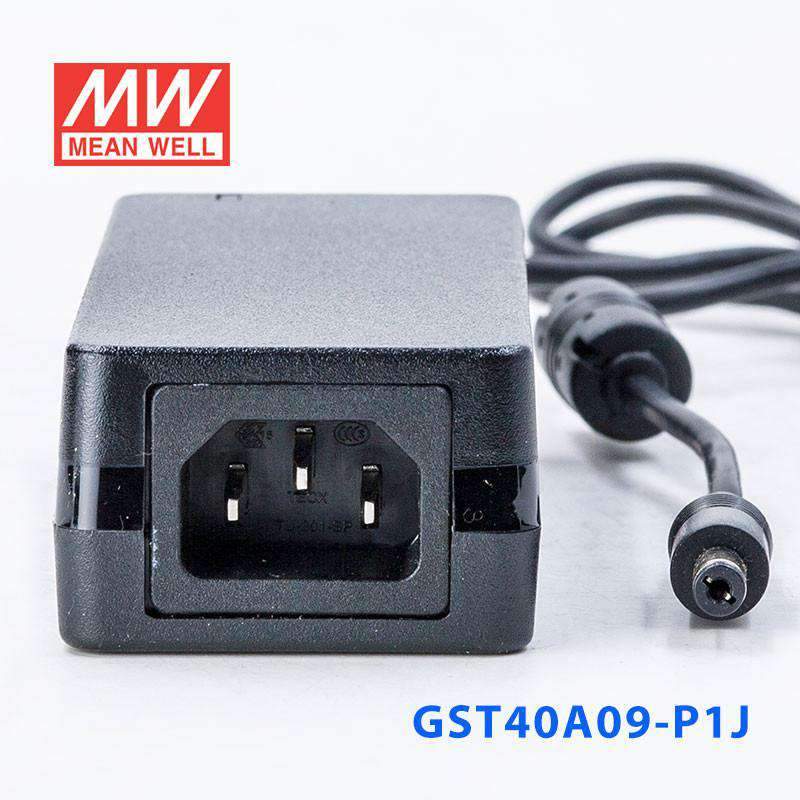

3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case

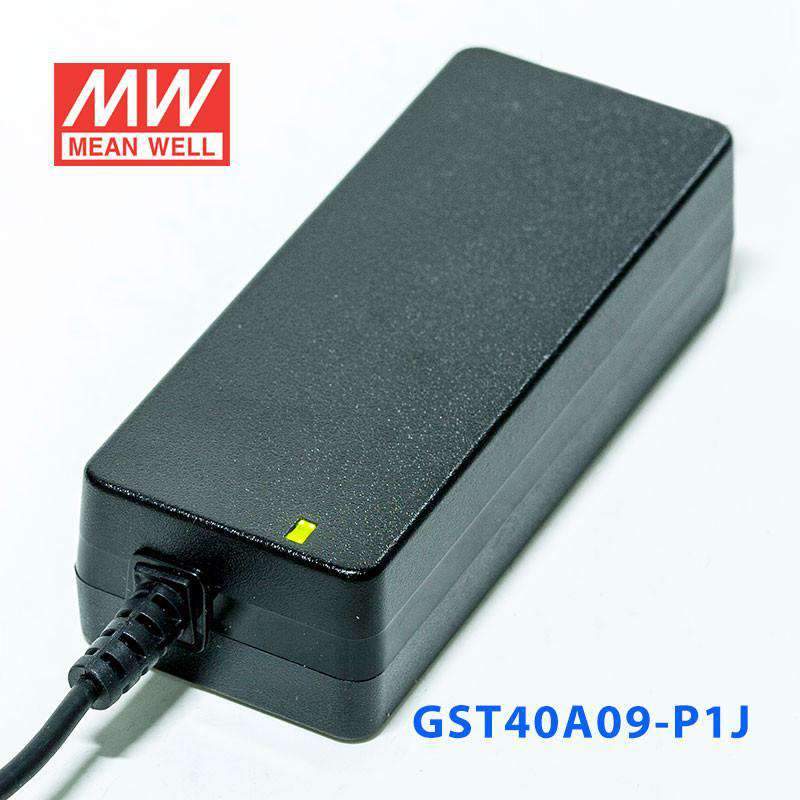

LED indicator for power on
Pass LPS
3 years warranty


General Specification

AC input voltage range 90~264VAC / 1.0A
AC inrush current (max.) Cold start, 65A at 230VAC
Overload protection Range 105%~150% rated output power
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 50ms at 230VAC input
Withstand voltage I/P-O/P:3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+60°C
Safety standards UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, CNS13438, GB9254, FCC part15 class B
Length of output cable 100cm of UL1185, 16AWG for 5~15V; 180cm of UL1185, 18AWG for 18~48V
Dimension (LxWxH) 125x 50x 31.5 mm
Standard DC plug P1J: 2.1ID x 5.5OD x11mmL, tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GST Series
  • Power Rating
    40 Watt
  • Output Voltage
    9 Volt
  • Rated Current
    4.45 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    BSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    4.92 in
  • Width
    1.97 in
  • Height
    1.24 in
  • Weight
    0.62 lb

File Downloads

::specification::
