Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

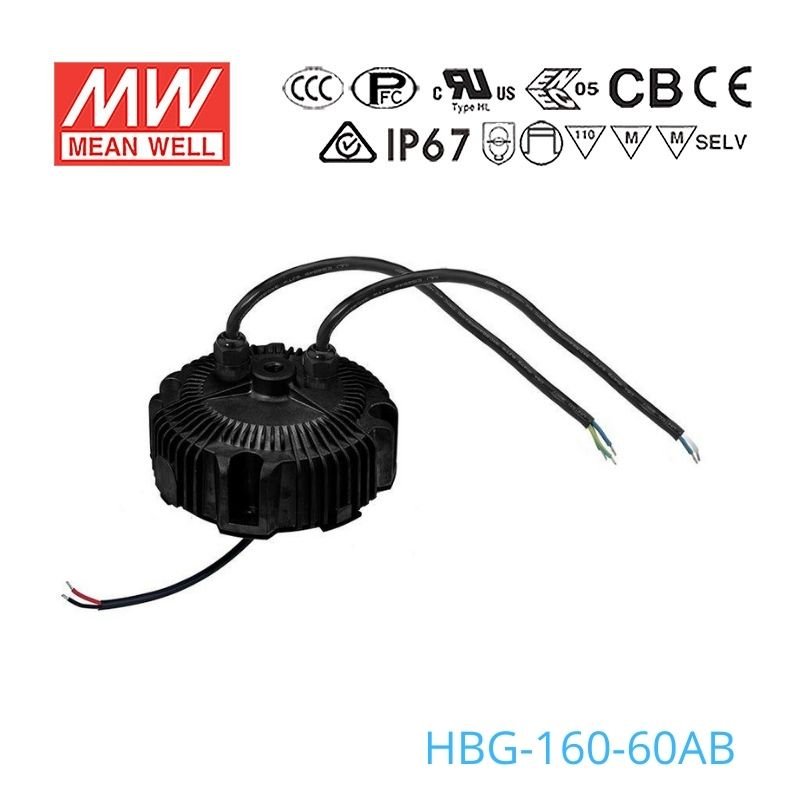

Mean Well HBG-160-60AB Power Supply 160W 60V - Adjustable and Dimmable

Name: Mean Well HBG-160-60AB Power Supply 160W 60V - Adjustable and Dimmable
Brand: Mean Well
SKU: HBG-160-60AB
Price: 70.28 USD
Availability: InStock

Mean Well HBG-160-60AB Power Supply 160W 60V - Adjustable and Dimmable

On Backorder

$70.28 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~305VAC 127~417VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	65%~100% rated current
Over current protection	95 ~ 108%; Constant current limiting
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+85°C
Safety standards	UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJTW 18AWG/SVT 18AWG
Dimension (DxH)	φ151.68x66.5mm
Packing	1.53Kg; 8pcs/13.8Kg/1.37CUFT
