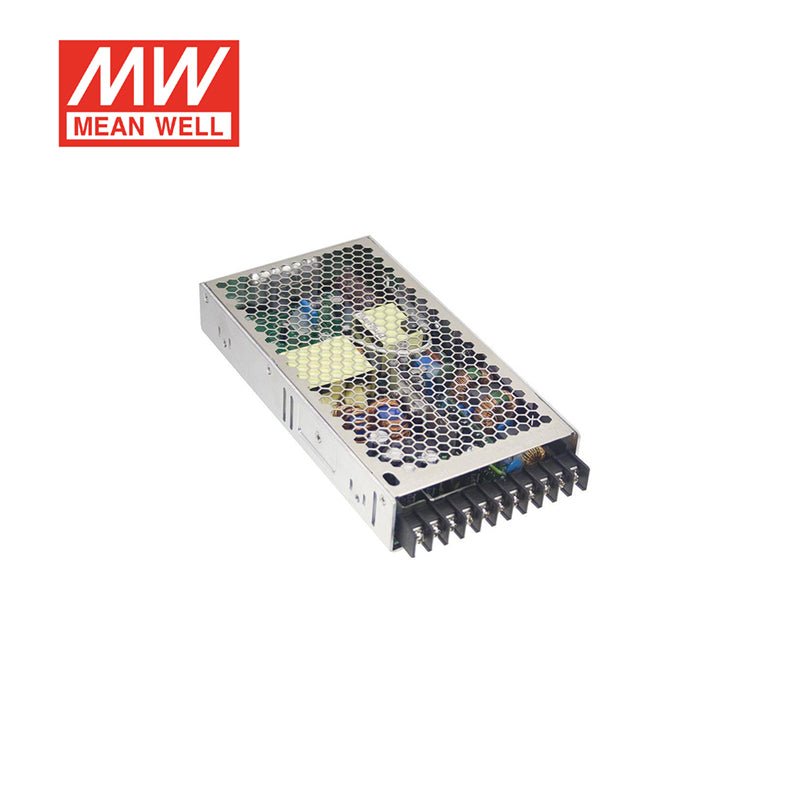

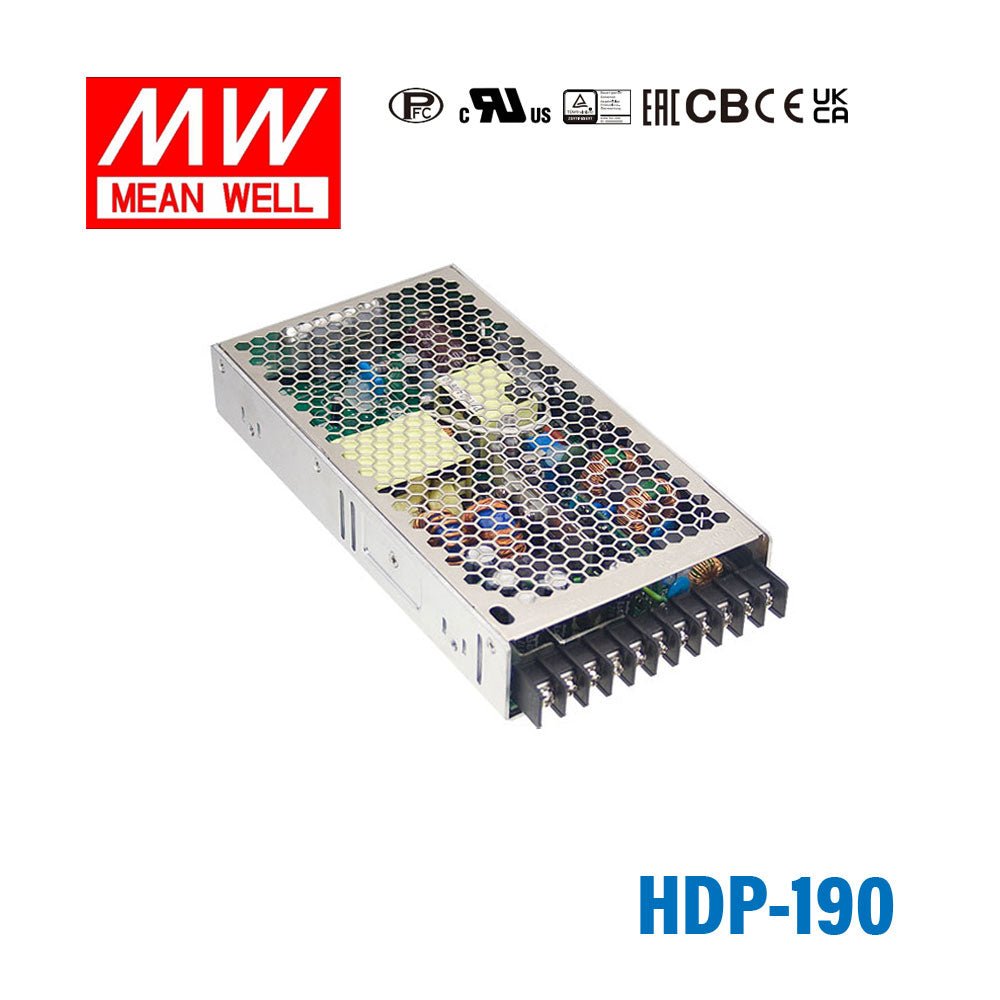

Mean Well HDP-190 Dual Output with PFC Function Switching Power Sup...
$53.44 USD
Unit price /
Unavailable
Overview
HDP-190 is the V1: +3.8V / V2: +2.8V output model of this series: rated current V1: 33A / V2: 20A, rated power 181.4W (typ.), 192W (max.), typical efficiency 86%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 86%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 1U low profile 36mm
- Conformal coated
- ZVS technology to reduce power dissipation
- LED indicator for power on
- 3 years warranty
Specifications
HDP-190Specifications from the official datasheet (2024-01-08 edition)
OUTPUT
- OUTPUT NUMBER
- V1 / V2
- DC VOLTAGE
- V1: +3.8V / V2: +2.8V
- RATED CURRENT
- V1: 33A / V2: 20A
- CURRENT RANGE (max.)
- V1: 0 ~ 40A / V2: 0 ~ 22A
- RATED POWER
- 181.4W (typ.), 192W (max.)
- OUTPUT POWER (max.)
- 192W continue. V1 total power output shall not exceed 160W (max. 40A) ; V2 total power output shall not exceed 66W (max. 22A) (The V1 & V2 combine total power output shall not exceed 192W)
- RIPPLE & NOISE (max.)Note.2
- V1: 100mVp-p / V2: 100mVp-p
- VOLTAGE ADJ. RANGENote.6
- V1: 3.6 ~ 4V / V2: 2.5 ~ 3V
- VOLTAGE TOLERANCENote.3
- V1: ±2.0% / V2: ±2.0%
- LINE REGULATION
- V1: ±0.5% / V2: ±0.5%
- LOAD REGULATION
- V1: ±2.0% / V2: ±2.0%
- SETUP, RISE TIME
- 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.94/230VAC PF≧0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 86%
- AC CURRENT (Typ.)
- 2.7A/115VAC 1.1A/230VAC
- INRUSH CURRENT (Typ.)
- 30A/115VAC 45A/230VAC
- LEAKAGE CURRENT
- <0.7mA / 240VAC
PROTECTION
- OVERLOAD
- V1+V2: 105 ~ 150% max. output power ; or V2: 125 ~ 170% rated current Protection type: Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- V1: 4.37 ~ 5.13V V2: 3.22 ~ 3.78V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recovery
ENVIRONMENT
- WORKING TEMP.

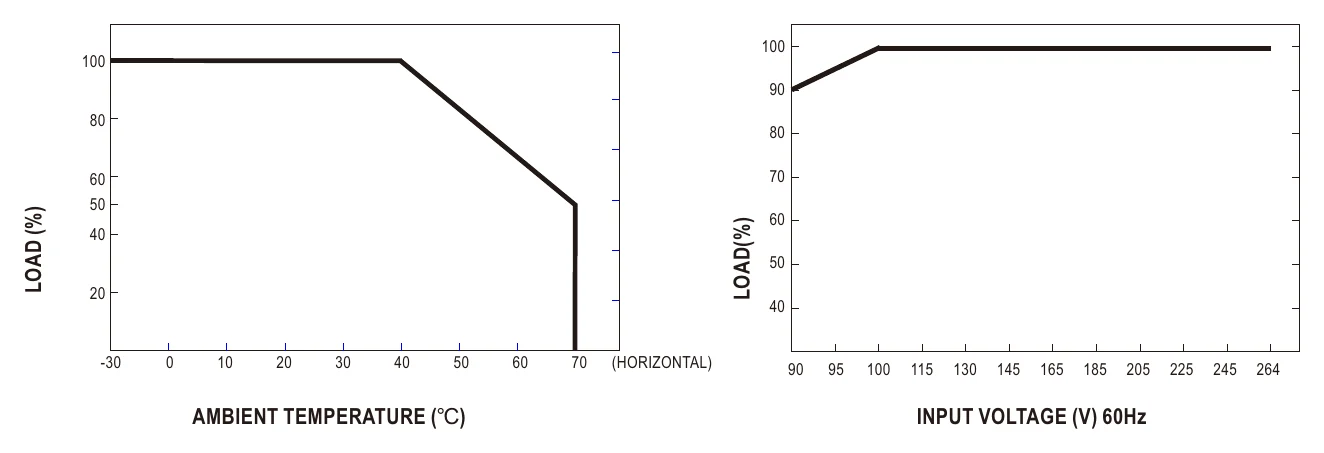

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL 62368-1, IEC/BS EN/EN 62368-1, EAC TP TC 004 approved; design refer to GB4943.1
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32), class B, BS EN/EN61000-3-2,-3, EAC TP TC 020; design refer to GB17625.1,GB/T9254
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 1094.7K hrs min. Telcordia SR-332 (Bellcore) 112.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 215*115*36mm (L*W*H)
- PACKING
- 0.95Kg; 15pcs/15.3Kg/0.7CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 6. Output voltage between V1 and V2 should be higher than 1.0V(V1-V2≧1.0V).

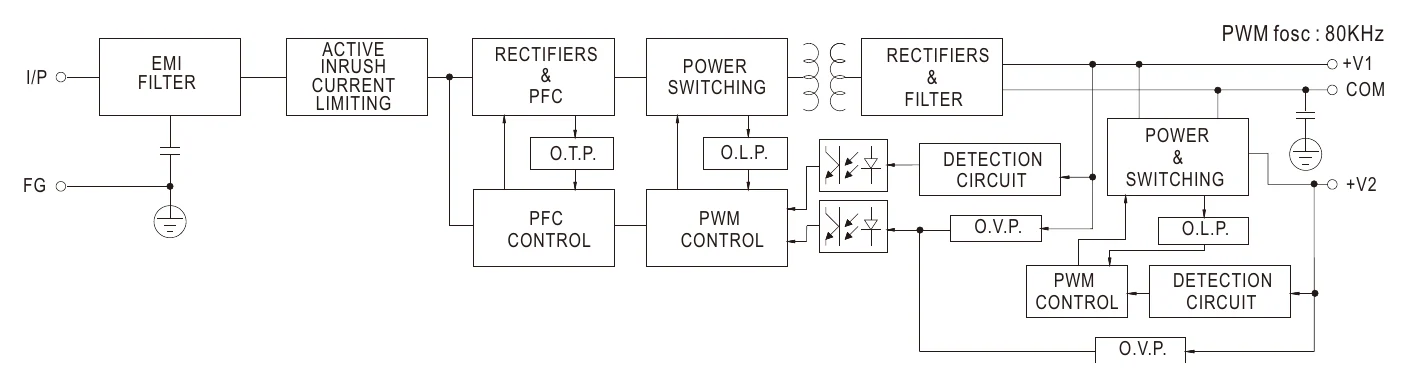

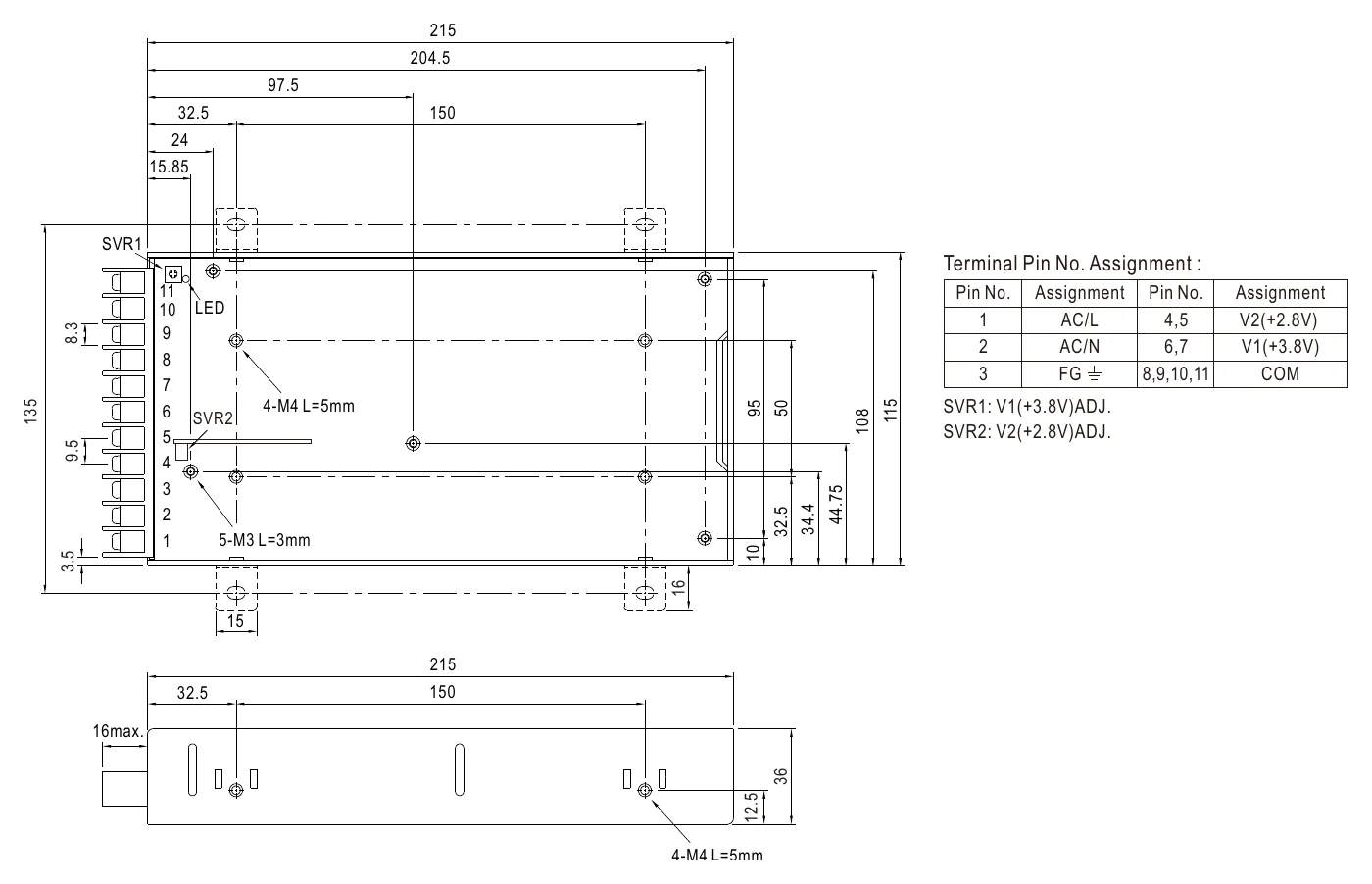

Technical drawings
Downloads
Datasheet1
