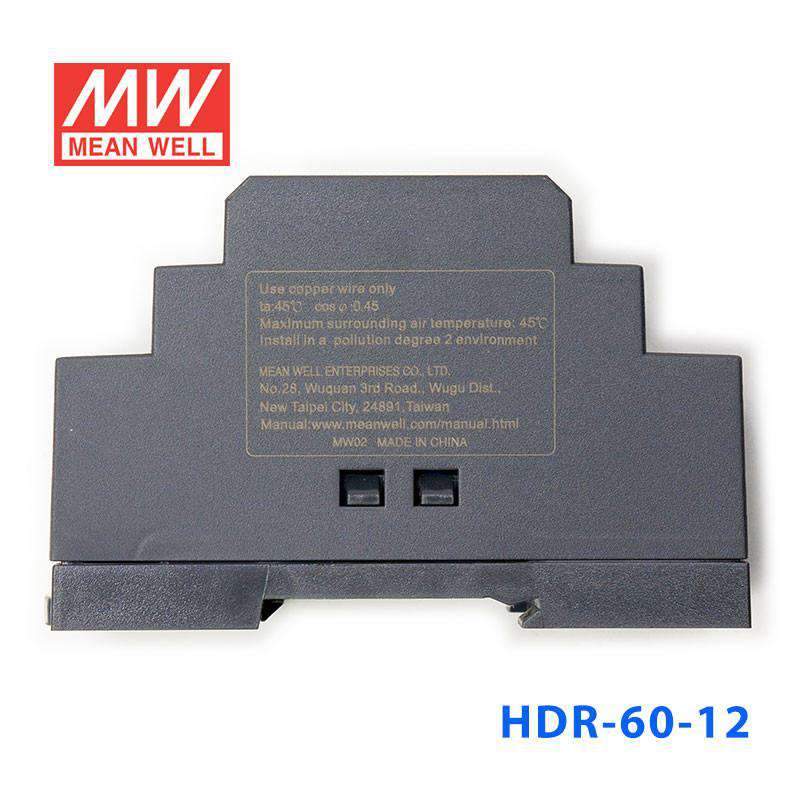

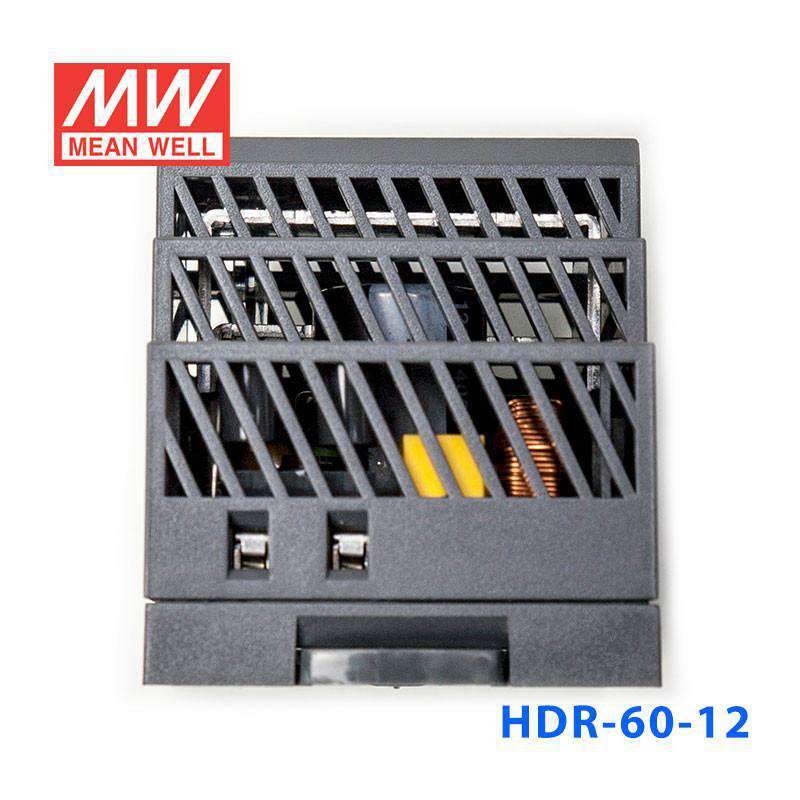

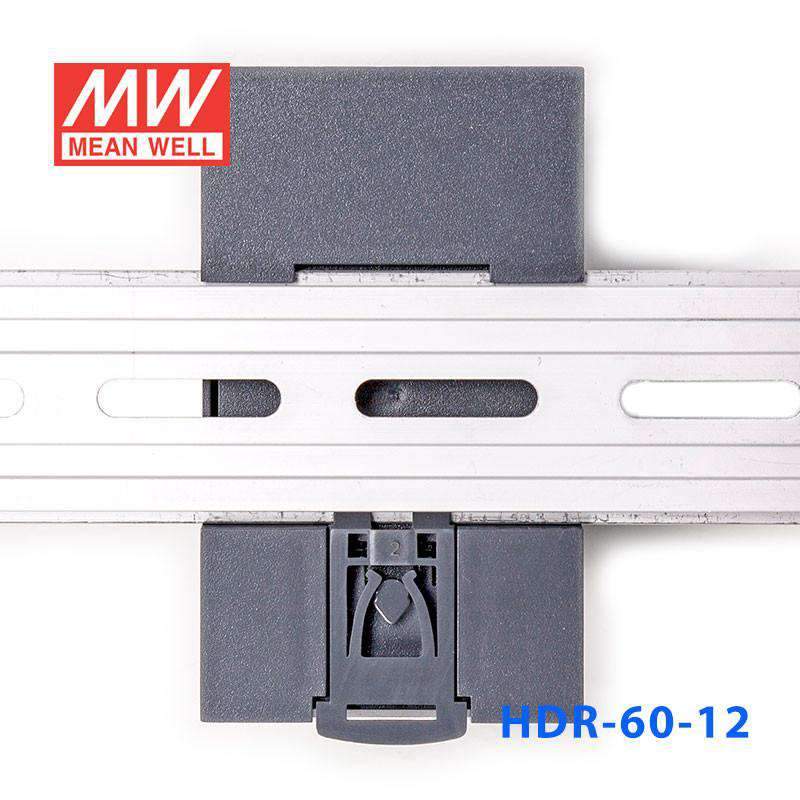

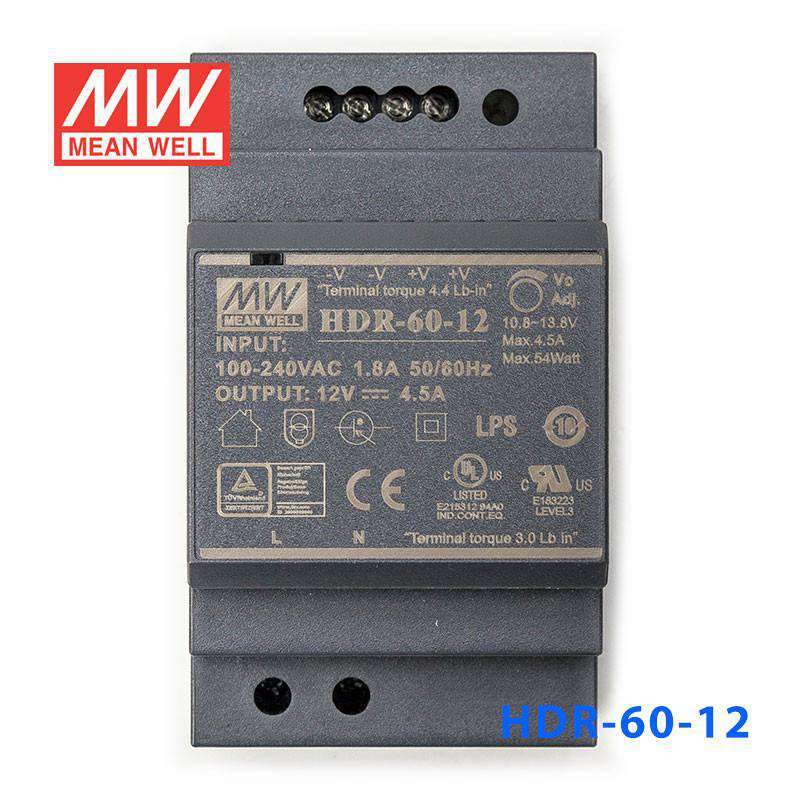

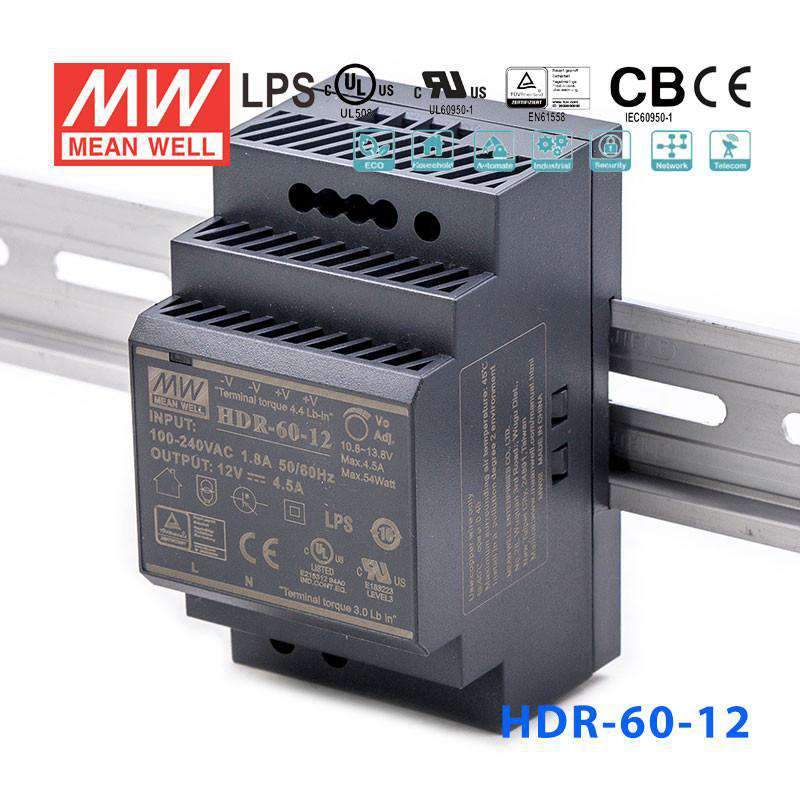

Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-60-12 Ultra Slim Step Shape Power Supply 60W 12V - DI...
Description
Description
The HDR-60 is a 60W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating54 Watt
-
Output Voltage12 Volt
-
Rated Current4.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height2.07 in
-
Weight0.42 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 12V mid-range control panel applications suit the HDR-60-12?
At 54W and 4.5A on a 12V output, the HDR-60-12 powers mid-sized 12V loads such as multi-relay output modules, 12V HMI terminals, and industrial 12V Ethernet switches mounted in DIN rail panels. Its step-shape slim profile takes less rail space than conventional block-style PSUs.
How does the HDR-60-12 compare to the HDR-30-12 and HDR-100-12 in the 12V lineup?
HDR-30-12: 24W / 2A. HDR-60-12: 54W / 4.5A. HDR-100-12: 82.5W / 7.1A. HDR-100-12N: 90W / 7.5A. HDR-150-12: 122.4W / 10.2A. The HDR-60-12 fills the mid-power position between the 30W and 100W 12V models on the DIN rail.
What input voltage range does the HDR-60-12 accept?
The HDR-60-12 accepts 85–264VAC universal input, supporting 100V, 120V, 230V, and 240V mains without manual voltage selection. This broadens its suitability for international panel builds.
What is the operating temperature range for the HDR-60-12?
The HDR-60-12 is rated -30°C to +70°C. It requires enclosure installation since it carries no standalone IP rating. The -30°C lower limit covers unheated outdoor control cabinets in cold regions.
